ALPHA WIRE 470041CYGE033 Control Cable

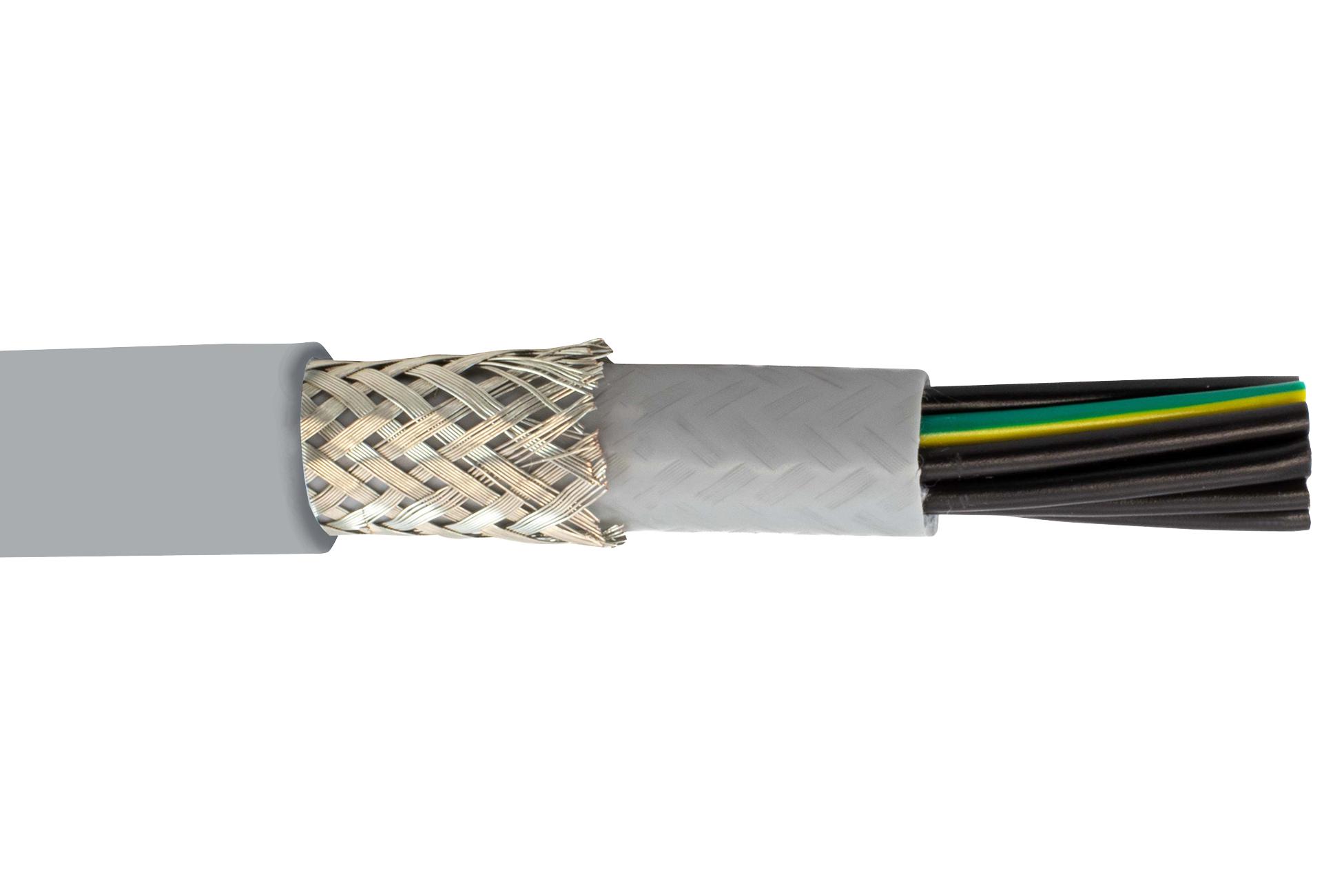

Pro-Met shielded flexible industrial control cable features four strands of 17 AWG stranded bare copper conductors, with a tinned copper braid shield and a grey PVC jacket. Designed to be resistant to oils, UV radiation, chemicals, and suitable for dynamic and static conditions, it supports up to 1 million flex cycles. The cable operates effectively within a temperature range of -30°C to +70°C (dynamic) and -40°C to +80°C (static). Its bending radius is 20 times the outer diameter for occasional movement and 6 times for fixed installation. Ideal for industrial automation, control panels, machinery, and instrumentation in demanding environments.
ALPHA WIRE 470041CYGE033 Control Cable Specifications:
- Conductor: 17 AWG stranded bare copper
- Shield: Tinned copper braid, 80% coverage
- Jacket Material: PVC, grey color
- Operating Temperature: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Bend Radius: 20X outer diameter (occasional movement), 6X (fixed)
- Voltage Rating: 300/500 V
- Number of Conductors: Four
- Insulation: PVC
- Conductors per Strand: 17 AWG
- Shield Coverage: 80%
- Number of Flex Cycles: Up to 1 million
- Application: Industrial control, automation, machinery, instrumentation
- Flame Behavior: IEC 60332-1
- Oil Resistance: DIN EN 50290-2-22
- UV Resistance: Yes
Buy the Buy Alpha Wire Control Cable Part Number 470041CYGE033 Online
Order the Alpha Wire control cable 470041CYGE033 online today to ensure reliable performance in harsh industrial environments. This shielded flexible cable features four 17 AWG bare copper conductors with a durable PVC jacket, making it resistant to oils, chemicals, and UV radiation. Capable of withstanding up to 1 million flex cycles, it is ideal for industrial automation, machinery, and control systems. Its operating temperature range from -40°C to +80°C ensures optimal functionality in dynamic and static conditions. Purchase now for long-lasting durability and superior electrical performance.
Get Alpha Wire 470041CYGE033 today—designed for resilience in industrial control and automation environments with superior flexibility and shielding.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470041CYGE033?
You can click on the BUY or RFQ button to purchase 470041CYGE033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470041CYGE033?
You can download the 470041CYGE033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470041CYGE033?
ALPHA WIRE
