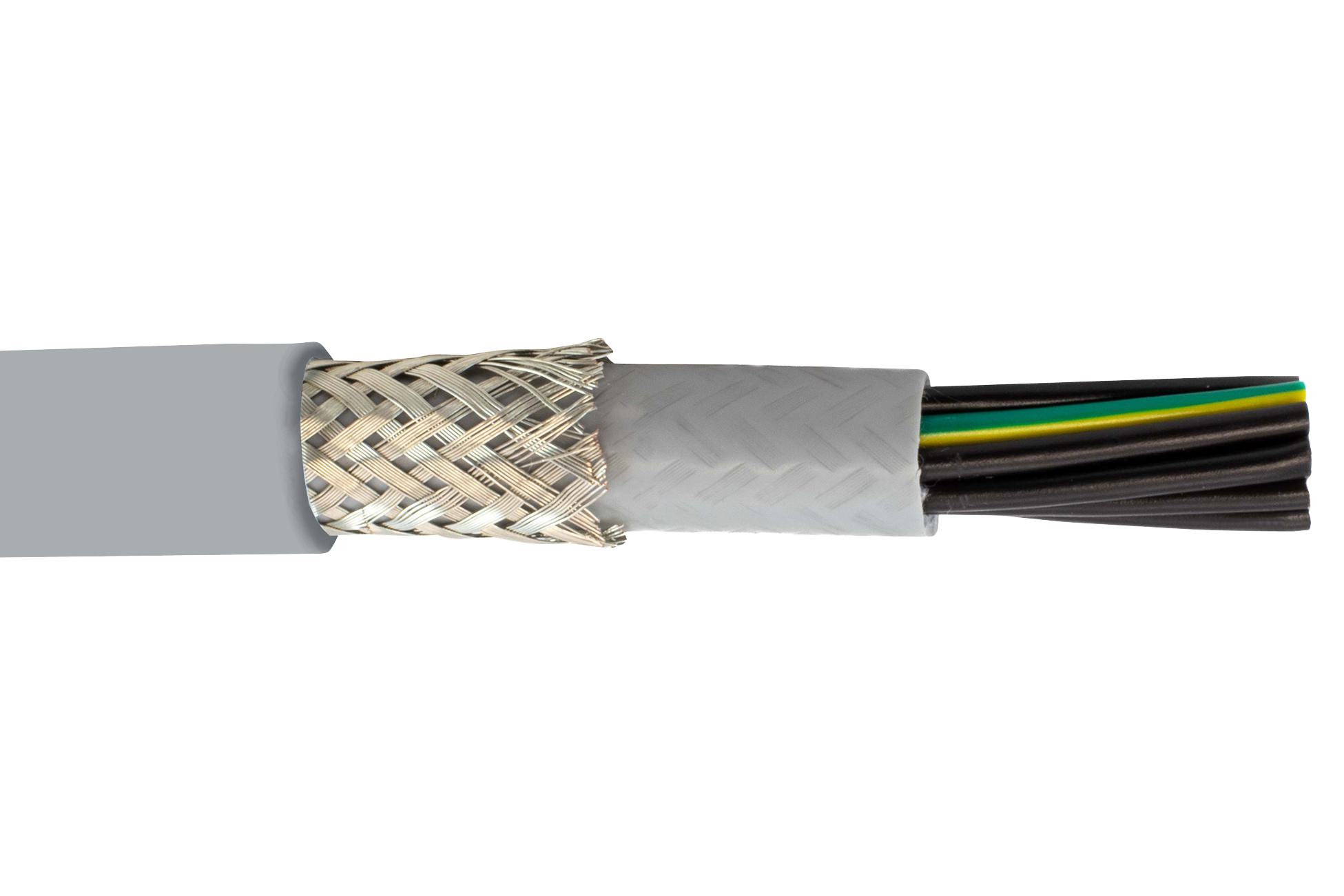

ALPHA WIRE 470045CYGE321 Shielded Control Cable
Pro-Met shielded industrial control cable features four 21 AWG stranded bare copper conductors, a tinned copper braid shield, and a grey PVC jacket. Designed to withstand oils, UV exposure, and mechanical flexing (up to 1 million cycles), it operates within a temperature range of -30°C to +70°C dynamically and -40°C to +80°C statically. Suitable for food and beverage, medical, automation, automotive, defense, and aerospace applications, it ensures reliable control and sensor connections with a bending radius of 20 times the outer diameter for movement and 6 times for fixed installation, offering durability and flexibility.
ALPHA WIRE 470045CYGE321 Shielded Control Cable Specifications:
- Number of Conductors: 4 x 21 AWG stranded bare copper
- Conductor Material: Bare Copper
- Shield: Tinned Copper Braid, 80% coverage
- Insulation: PVC, 0.400 mm wall thickness
- Jacket: PVC, 0.65 mm wall thickness, grey color
- Outer Diameter: Approximately 7.97 mm (max 8.22 mm)
- Temperature Range: -40°C to +80°C, static; -30°C to +70°C, dynamic
- Bending Radius: 20X outer diameter for movement, 6X for fixed
- Voltage Rating: 300/500V
- Flame & Oil Resistance: IEC 60332-1, DIN VDE 0295 Class 5
- UV Resistance: Yes
- Resistance: Yes, electrical resistance as per conductor DCR 39 Ω/Km @ 20°C
Buy the Alpha Wire Series Pro-Met Shielded Control Cable: 470045CYGE321
Purchase the Alpha Wire 470045CYGE321 shielded control cable online now for reliable performance in demanding industrial, aerospace, and medical environments. This multi-conductor cable with tinned copper braid shield, PVC insulation, and jacket provides excellent resistance to oils, UV, and mechanical stress. Designed for flexible operation, it supports up to 1 million flex cycles and operates within a wide temperature range from -40°C to +80°C. Easy to install with a bending radius of 20 times the outer diameter for movement and 6 times for fixed setups, ensuring high durability and consistent signal integrity.
Buy Alpha Wire 470045CYGE321 now and experience unmatched durability and flexibility for industrial control, automation, and aerospace applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470045CYGE321?
You can click on the BUY or RFQ button to purchase 470045CYGE321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470045CYGE321?
You can download the 470045CYGE321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470045CYGE321?
ALPHA WIRE
