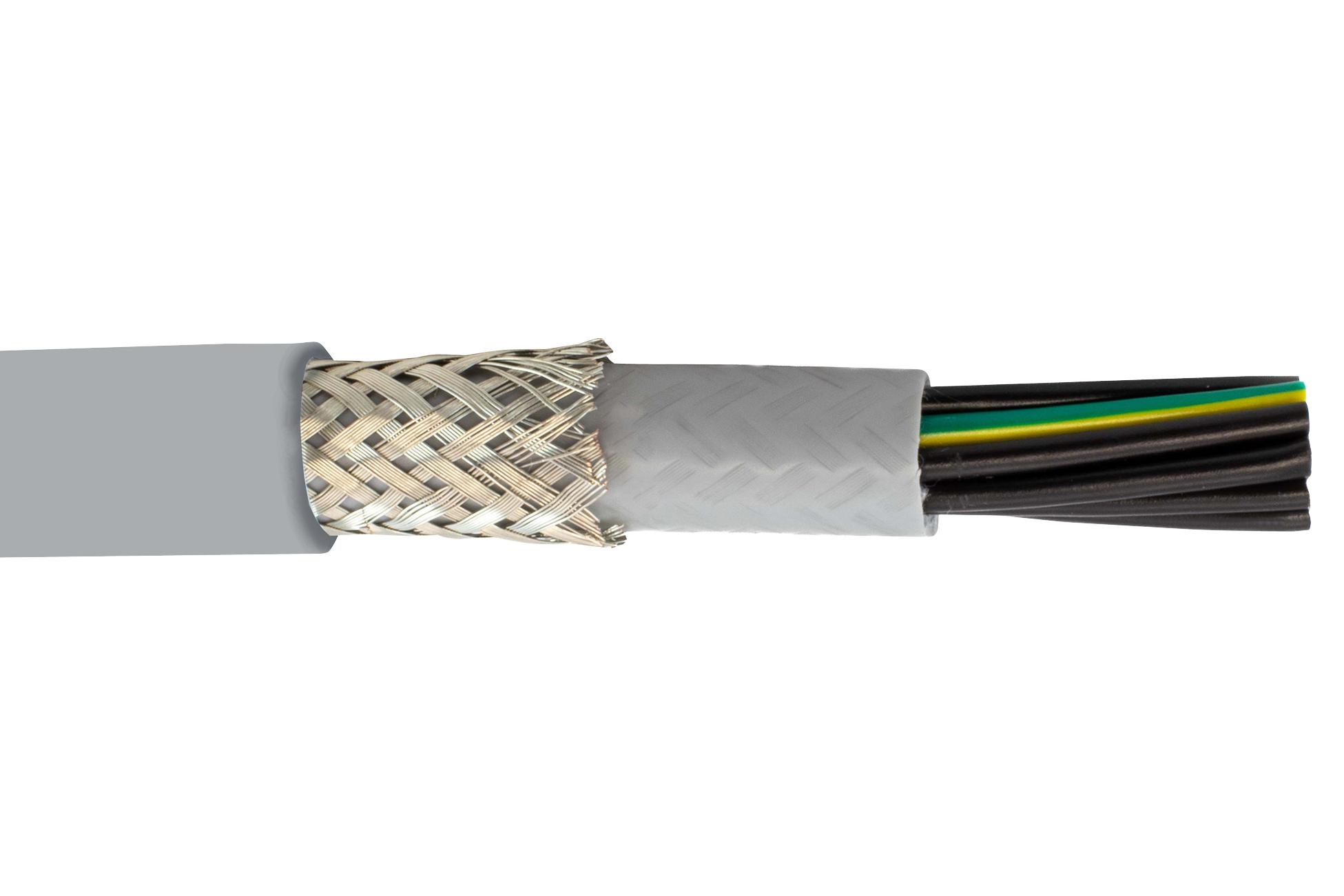

ALPHA WIRE 470047CYGE033 Shielded Control Cable
Pro-Met shielded flexible industrial control cable designed for durability and versatility. Featuring four stranded bare copper conductors with a tinned copper braid shield and a grey PVC jacket, it offers excellent resistance to oils, UV damage, and chemicals. Suitable for industrial automation, food processing, medical devices, automotive, defense, aerospace, and precision control applications. Rated for up to 1 million flex cycles, it operates within a temperature range of -40°C to +80°C and has a bending radius 20 times its diameter for flexible movement or 6 times for fixed installation. Its robust construction ensures reliable performance in demanding environments.
ALPHA WIRE 470047CYGE033 Shielded Control Cable Specifications:
- Conductors: Four stranded bare copper, 0.75 mm² (30/.177), IEC/EN 60228 Class 5
- Insulation Wall Thickness: 0.400 mm, PVC, print color white
- Jacket Wall Thickness: 0.65 mm, PVC, color grey
- Shield: Tinned copper braid, 80% coverage
- Outer Diameter: Approximately 6.00 mm, PVC jacket
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Bend Radius: Static 6X cable diameter, dynamic 20X cable diameter
- Voltage Rating: 300/500 V
- Flame Behavior: IEC 60332-1 compliant
- Oil Resistance & UV Resistant
- Rated for up to 1 million flex cycles
- Certification: RoHS, CE, REACH compliant
- Application: Industrial automation, control systems, medical, automotive, aerospace
- Flexibility: Suitable for demanding environments with good chemical and UV resistance
Buy the Alpha Wire Series PRO-MET Shielded Control Cable: 470047CYGE033
Purchase Alpha Wire’s shielded control cable 470047CYGE033 online today to ensure high reliability in your industrial automation and control projects. This robust cable features four stranded copper conductors with a tinned copper braid shield and a durable grey PVC jacket, making it resistant to oils, UV rays, and chemicals. Rated for up to 1 million flex cycles, it performs well in harsh conditions with a temperature range from -40°C to +80°C. Ideal for demanding environments, it offers superior flexibility, excellent flame and fire resistance, and complies with RoHS, CE, and REACH standards. Get yours now for reliable performance!
Buy Alpha Wire 470047CYGE033 now and experience unmatched durability, flexibility, and performance for demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470047CYGE033?
You can click on the BUY or RFQ button to purchase 470047CYGE033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470047CYGE033?
You can download the 470047CYGE033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470047CYGE033?
ALPHA WIRE
