ALPHA WIRE 470071CYCL321 Control Cable

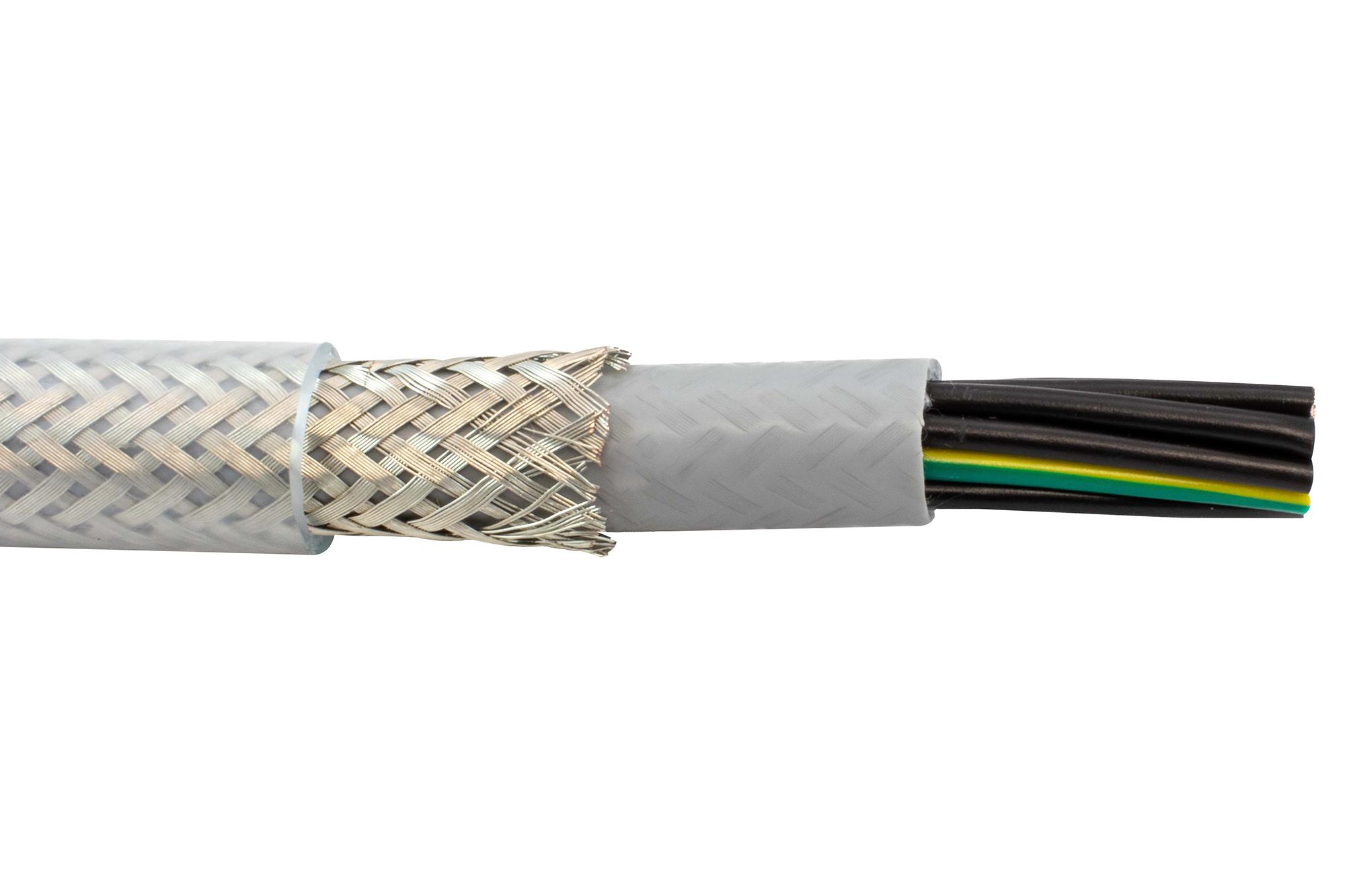

Pro-Met shielded flexible industrial control cable with seven conductors and 17 AWG size, featuring stranded bare copper conductors and a tinned copper braid shield. The transparent PVC outer jacket provides resistance to oils, UV radiation, and environmental factors. Designed for robust applications such as food and beverage, medical devices, industrial automation, automotive, defense, aerospace, and precision control systems. Suitable for up to 1 million flex cycles, it operates within a temperature range of -30°C to +70°C dynamically and -40°C to +80°C statically. Its bend radius is 20 times the outer diameter for occasional movement and 6 times for fixed installation, ensuring durability and flexibility in demanding environments.
ALPHA WIRE 470071CYCL321 Control Cable Specifications:
- Number of Conductors: 7
- Conductor Size: 17 AWG
- Conductor Material: Bare Copper, Stranded
- Shielding: Tinned Copper Braid, 80% Coverage
- Outer Jacket: Transparent PVC
- Temperature Range: -30°C to +70°C (dynamic), -40°C to +80°C (static)
- Flex Cycles: Up to 1 million
- Bending Radius: 20X outer diameter (occasional), 6X (fixed)
- Environmental Resistance: Oil-resistant, UV resistant, suitable for food, medical, aerospace, automation
- Rated Voltage: 300/500V
- Dimensions: Length varies with application, typical insulation thickness 0.070 inches
- Certifications: CE, RoHS, REACH
Buy the Alpha Wire Series Pro-Met Control Cable: 470071CY
Order Alpha Wire's Pro-Met control cable online today to ensure your industrial automation and medical device projects are equipped with highly flexible, shielded, and oil-resistant cables. This robust control cable features seven 17 AWG stranded copper conductors with a tinned copper braid shield for excellent noise immunity and durability. Its transparent PVC outer jacket offers resistance to UV and oils, making it ideal for food, aerospace, defense, and automotive applications. Rated for up to 1 million flex cycles, it provides reliable performance in dynamic environments, all available for convenient online purchase.
Buy Alpha Wire 470071CY control cable now and experience unmatched durability, high flexibility, and resistance in demanding industrial environments.
