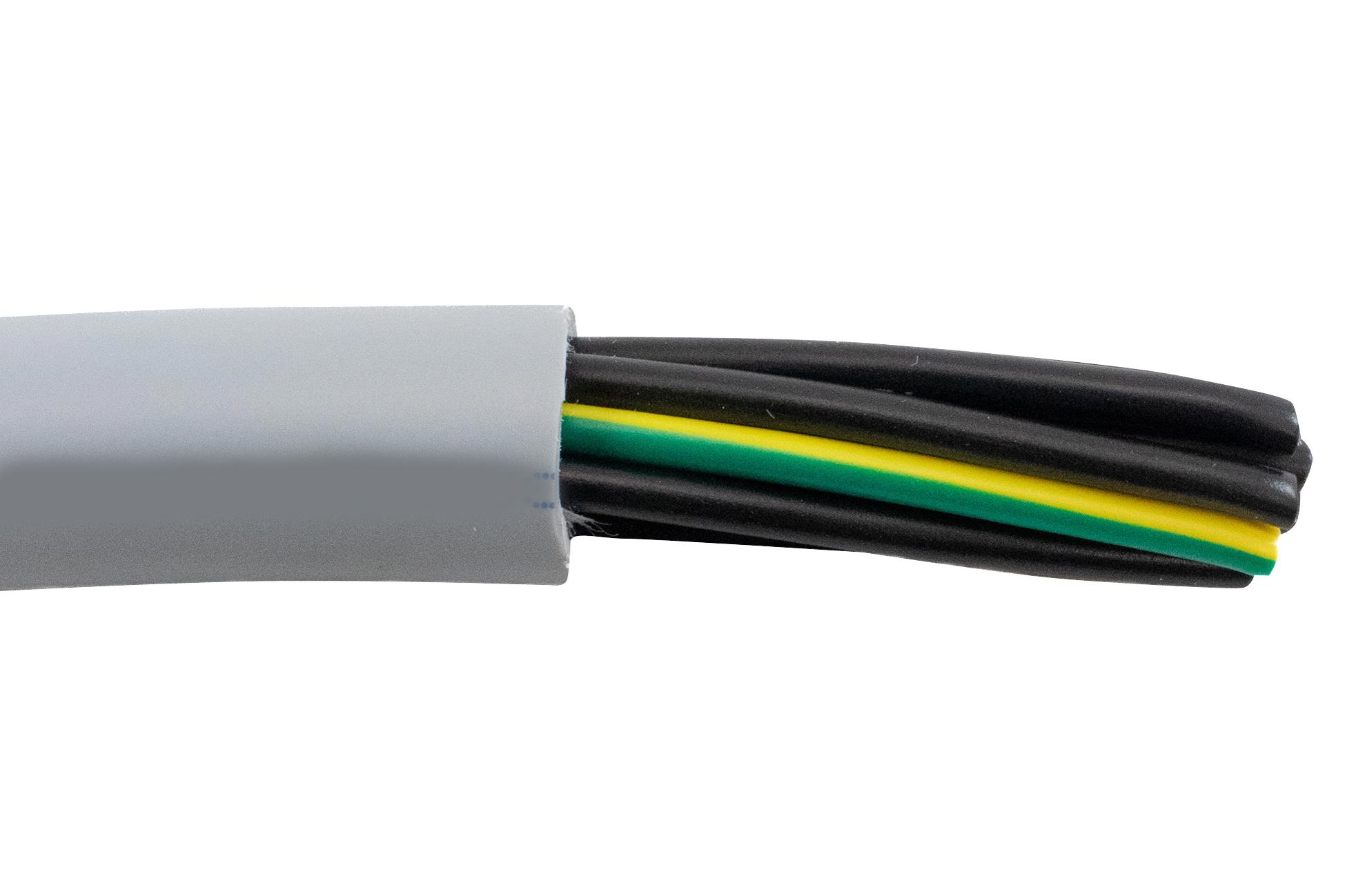

ALPHA WIRE 470071YYGE033 Industrial Control Cable
Pro-Met® unshielded flexible industrial YY control cable designed for demanding environments, with stranded bare copper conductors and a grey PVC jacket. It ensures excellent oil resistance, UV stability, and thermal performance. Suitable for automation, control panels, motor speed controls, and industrial machinery, its construction includes 7 conductors of 17 AWG rated for up to 1 million flex cycles. Operating from -30°C to +70°C dynamically and -40°C to +80°C statically, it provides flexibility, chemical resistance, and a bending radius of 10 times the outside diameter for occasional movement and 6 times for fixed installations.
ALPHA WIRE 470071YYGE033 Industrial Control Cable Specifications:
- Number of Conductors: 7
- Conductor Material: Stranded bare copper
- Conductor Size: 17 AWG
- Jacket Material: PVC
- Jacket Color: Grey
- Voltage Rating: 300/500 V
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Bending Radius: 10x outer diameter (occasional movement), 6x outer diameter (fixed)
- Resistance: Yes
- Flame Resistance: IEC 60332-1
- Oil Resistance: Yes
- UV Resistance: Yes
- Certifications: RoHS, REACH Compliant
- Number of Flex Cycles: Up to 1 million
Buy the Alpha Wire Series Control Cable 470071YY: Industrial Automation Wiring
Order the Alpha Wire 470071YY control cable online today to ensure top-quality, flexible wiring for your industrial automation, control systems, or equipment. This multi-conductor cable features stranded bare copper conductors with a grey PVC jacket, delivering excellent resistance to oil, UV radiation, and chemicals. Designed for use in environments requiring high flexibility and durability, it supports up to 1 million flex cycles, operates from -40°C to +80°C, and has a bending radius suitable for both fixed and movable installations. Secure your supply now!
Buy Alpha Wire 470071YY now and experience unmatched flexibility and durability for demanding industrial control environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470071YYGE033?
You can click on the BUY or RFQ button to purchase 470071YYGE033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470071YYGE033?
You can download the 470071YYGE033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470071YYGE033?
ALPHA WIRE
