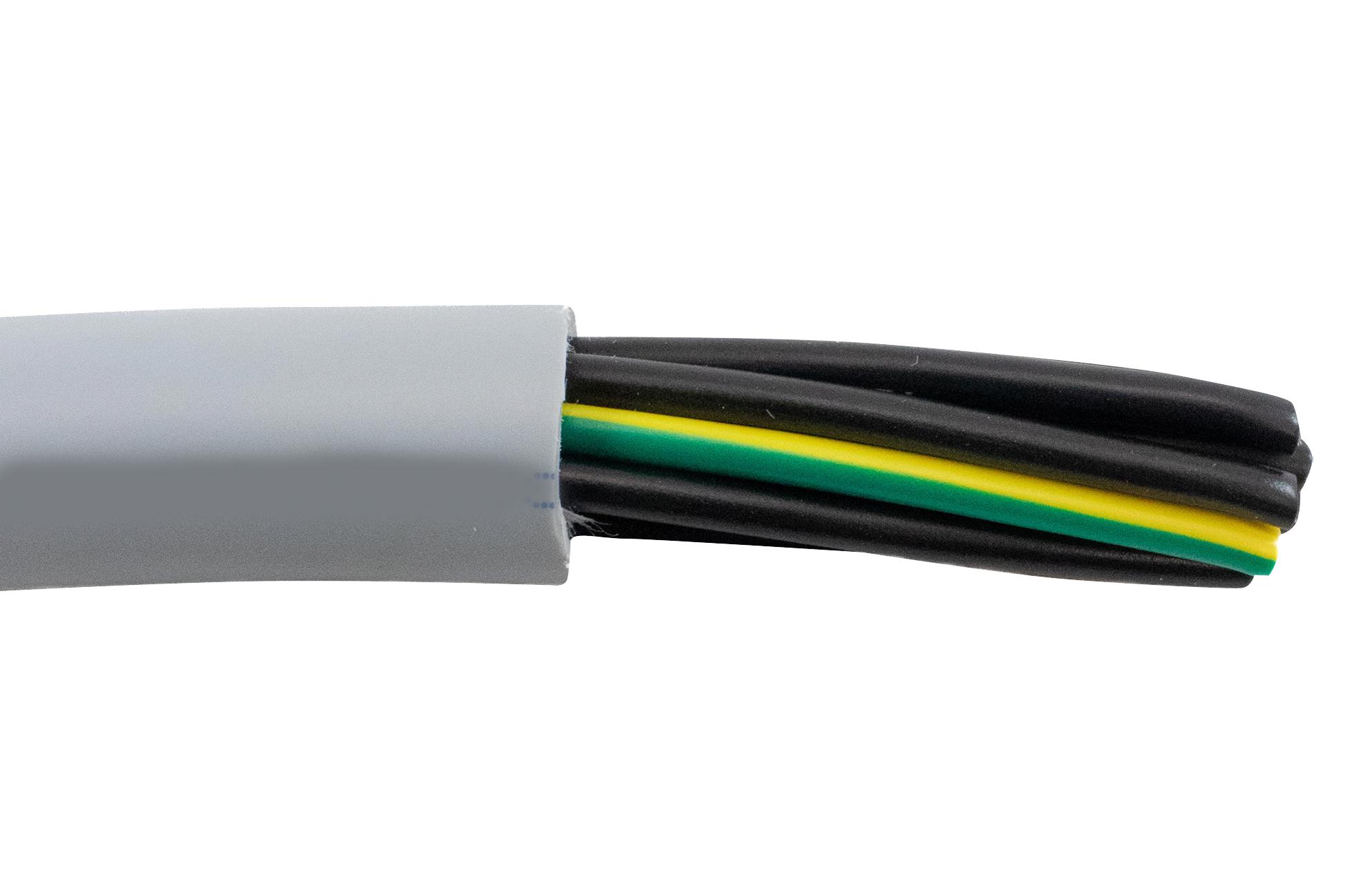

ALPHA WIRE 470071YYGE321 Industrial Control Cable
Pro-Met® unshielded flexible industrial YY control cable features stranded bare copper conductors with a grey PVC jacket (RAL 7001). It is resistant to oils, UV damage, chemicals, and designed for durability with a rated flex life of up to 1 million cycles. Suitable for use in diverse applications including industrial automation, food and beverage, medical devices, automotive, defense, military, aerospace, and precision control sensors. The cable has 7 conductors, each 17 AWG, operating between -30°C and +70°C dynamically, and -40°C to +80°C statically. It has a bend radius of 10X the outer diameter for occasional movement, and 6X for fixed installations, ensuring excellent flexibility and reliability under demanding conditions.
ALPHA WIRE 470071YYGE321 Industrial Control Cable Specifications:
- Construction: Stranded bare copper conductors, grey PVC jacket (RAL 7001)
- Number of Conductors: 7
- Conductor Size: 17 AWG
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Flex Life: Up to 1 million cycles
- Bending Radius: 10 times the outer diameter (occasional movement), 6 times (fixed installation)
- Resistance: Oil, UV, chemicals resistant
- Application: Industrial automation, food & beverage, medical, automotive, defense, aerospace
- Color: Grey
- Voltage Rating: 300/500 V
- Certifications: CE, RoHS compliant
- Environmental: UV resistant, oil resistant, low smoke zero halogen options available
Buy the Alpha Wire 470071YY – Reliable Control Cable for Industrial Applications
Enhance your industrial wiring with Alpha Wire’s control cable featuring stranded bare copper conductors and a durable grey PVC jacket. Designed for reliability in demanding environments, this unshielded cable offers exceptional flexibility with a rated life of up to 1 million cycles. Suitable for automation, medical, automotive, and aerospace applications, it operates in a temperature range of -40°C to +80°C. With resistance to oils, UV, and chemicals, this cable ensures safety and durability, making it the ideal choice for critical control systems.
Order your Alpha Wire Series470071YY control cable today and ensure your industrial projects benefit from dependable, durable wiring solutions for challenging environments.
