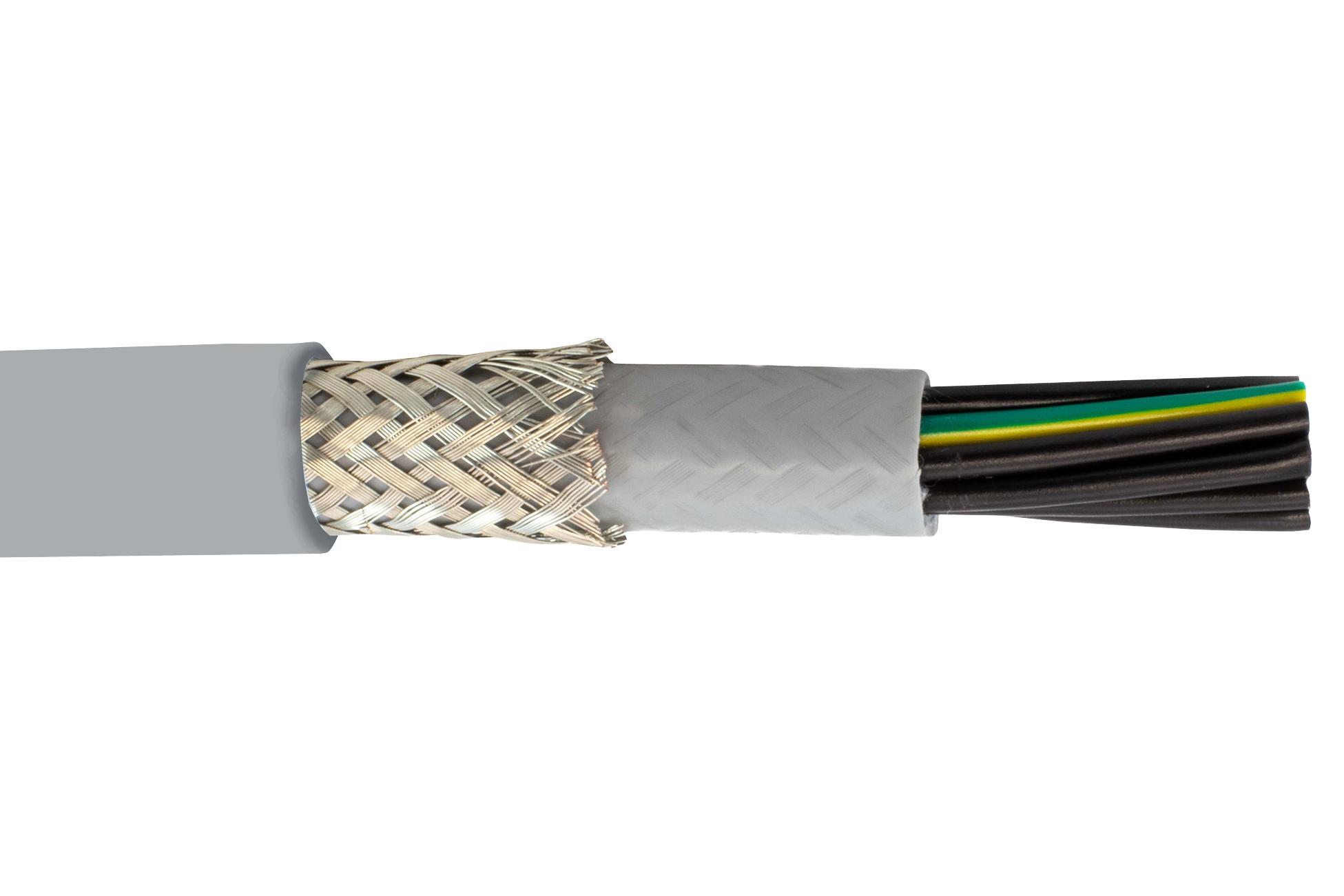

ALPHA WIRE 470077CYGE321 control cable
The Pro-Met shielded flexible industrial control cable is designed for durability and resistance to oils and UV damage. Featuring seven stranded bare copper conductors with tinned copper braid shielding and a grey PVC jacket, it suits various demanding environments such as automation, food, medical, aerospace, and automotive sectors. It supports up to 1 million flex cycles, withstanding temperatures from -40°C to +80°C. The cable maintains flexibility with bend radii of 6X during fixed installation and 20X during movement, offering robust electrical and mechanical performance for industrial applications.
ALPHA WIRE 470077CYGE321 control cable Specifications:
- Conductors: 7 stranded bare copper
- Shield: Tinned copper braid, 80% coverage
- Insulation: PVC, grey (RAL 7001)
- Outer Diameter: approximately 10.55 mm
- Temperature Range: -40°C to +80°C static, -30°C to +70°C dynamic
- Bend Radius: 6X cable diameter (fixed), 20X cable diameter (flexible)
- Voltage Rating: 300/500 V
- Resistance: Copper conductor resistance of 26 Q/Km @20°C
- Supports up to 1 million flex cycles
- UV resistant, Oil resistant, Chemical resistant
- Length varies per application, typical installation conditions
Buy the Alpha Wire Series Pro-Met Shielded Control Cable: 470077CYGE321
Order the Alpha Wire Pro-Met shielded control cable 470077CYGE321 online today and ensure your industrial projects benefit from high-quality, oil and UV resistant wiring. This cable’s excellent flexibility, high durability, and shielding make it ideal for demanding environments like automation, medical equipment, aerospace, and automotive sectors. Featuring seven stranded copper conductors, tinned copper braid shielding, and a grey PVC jacket, it supports up to 1 million flex cycles, withstanding temperatures from -40°C to +80°C. Easily install and rely on this robust cable for reliable electrical performance and long-term service life in your industrial applications.
Buy Alpha Wire 470077CYGE321 now and experience unmatched durability, flexibility, and resistance suited for industrial automation and control systems.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470077CYGE321?
You can click on the BUY or RFQ button to purchase 470077CYGE321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470077CYGE321?
You can download the 470077CYGE321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470077CYGE321?
ALPHA WIRE
