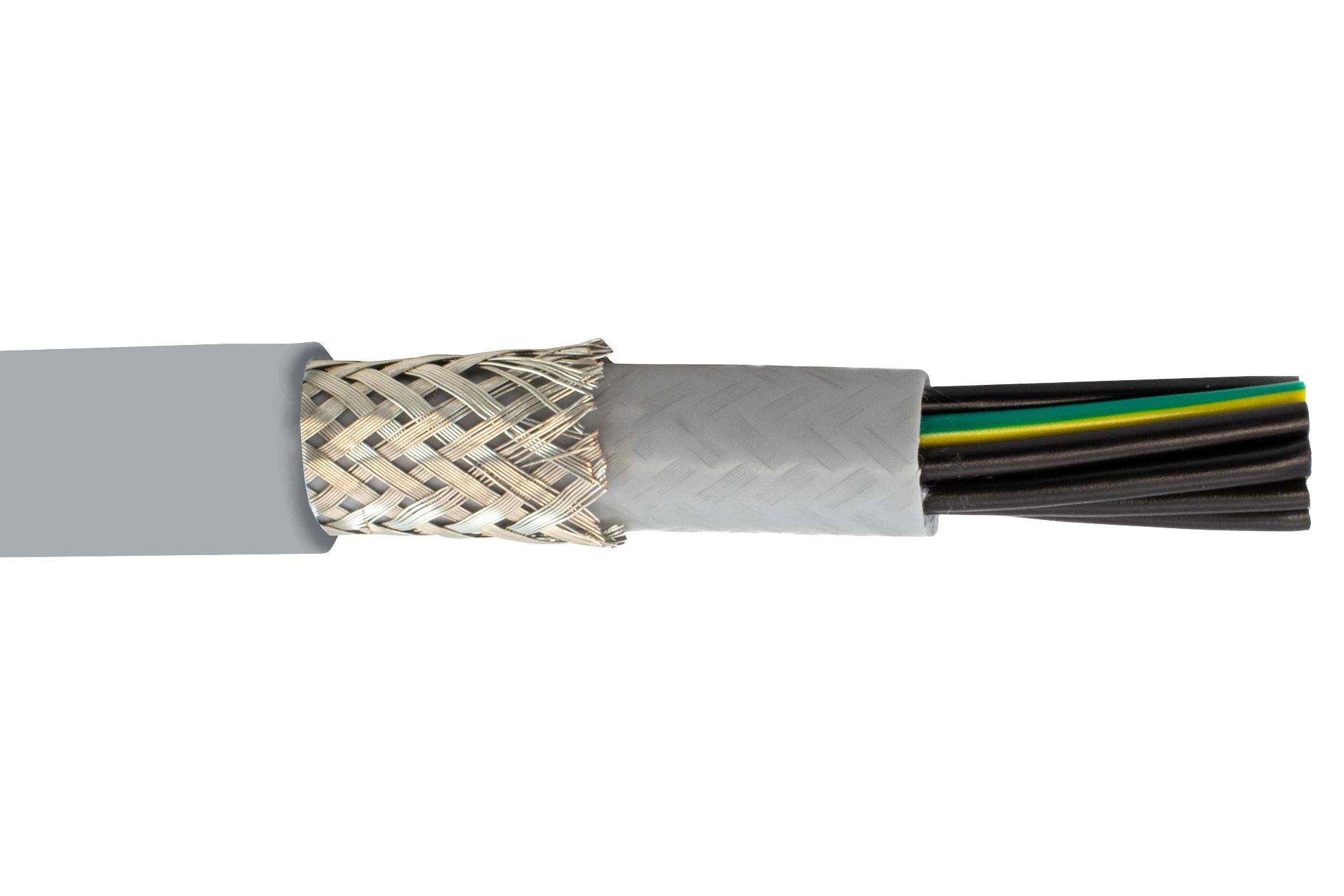

ALPHA WIRE 470095CYGE321 Industrial Control Cable
Pro-Met® shielded flexible industrial control cable designed to withstand harsh environments. It features stranded bare copper conductors, a tinned copper braid shield, and a grey PVC outer jacket. Suitable for food and beverage, medical devices, industrial automation, automotive, defense, and aerospace. Rated for up to 1 million flex cycles, with a temperature range from -30°C to +70°C during movement and -40°C to +80°C static. Its shielding offers excellent flexibility, UV and chemical resistance, with bending radii of 20 times outer diameter during occasional movement and 6 times for fixed installations. Available in 9 conductors of 21 AWG size.
ALPHA WIRE 470095CYGE321 Industrial Control Cable Specifications:
- Conductor Material: Stranded bare copper
- Shielding: Tinned copper braid, 80% coverage
- Jacket Material: PVC
- Jacket Thickness: 1.10 mm Wall, nominal, PVC
- Insulation Wall Thickness: 0.70 mm, PVC
- Outer Diameter: Approximately 8.11 mm to 14.26 mm depending on configuration
- Temperature Range: -40°C to +80°C static, -30°C to +70°C dynamic
- Voltage Rating: 300/500V
- Conductor Size: 21 AWG
- Bending Radius: 20 times outer diameter during movement, 6 times fixed
- Flex Cycles: Rated for up to 1 million flex cycles
- Compliance: IEC standards, RoHS, REACH
- Installation Environment: Suitable for industrial automation, food and beverage, medical devices, aerospace, automotive, defense
- Resistance Properties: UV resistant, oil resistant, chemical resistant
Buy the Buy Alpha Wire Control Cable Part Number 470095CYGE321 Online
Purchase Alpha Wire control cable 470095CYGE321 online to ensure top performance in harsh environments. With shielded design, high flexibility, and oil, UV, and chemical resistance, this cable is perfect for industrial automation, aerospace, automotive, and medical applications. Rated for up to 1 million flex cycles, it operates within -40°C to +80°C, making it highly reliable in static and dynamic conditions. Ensure efficient, safe, and long-lasting connections by ordering this premium control cable today.
Buy Alpha Wire 470095CYGE321 now and experience unmatched flexibility and durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470095CYGE321?
You can click on the BUY or RFQ button to purchase 470095CYGE321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470095CYGE321?
You can download the 470095CYGE321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470095CYGE321?
ALPHA WIRE
