ALPHA WIRE 470125CYGE321 Industrial Control Cable

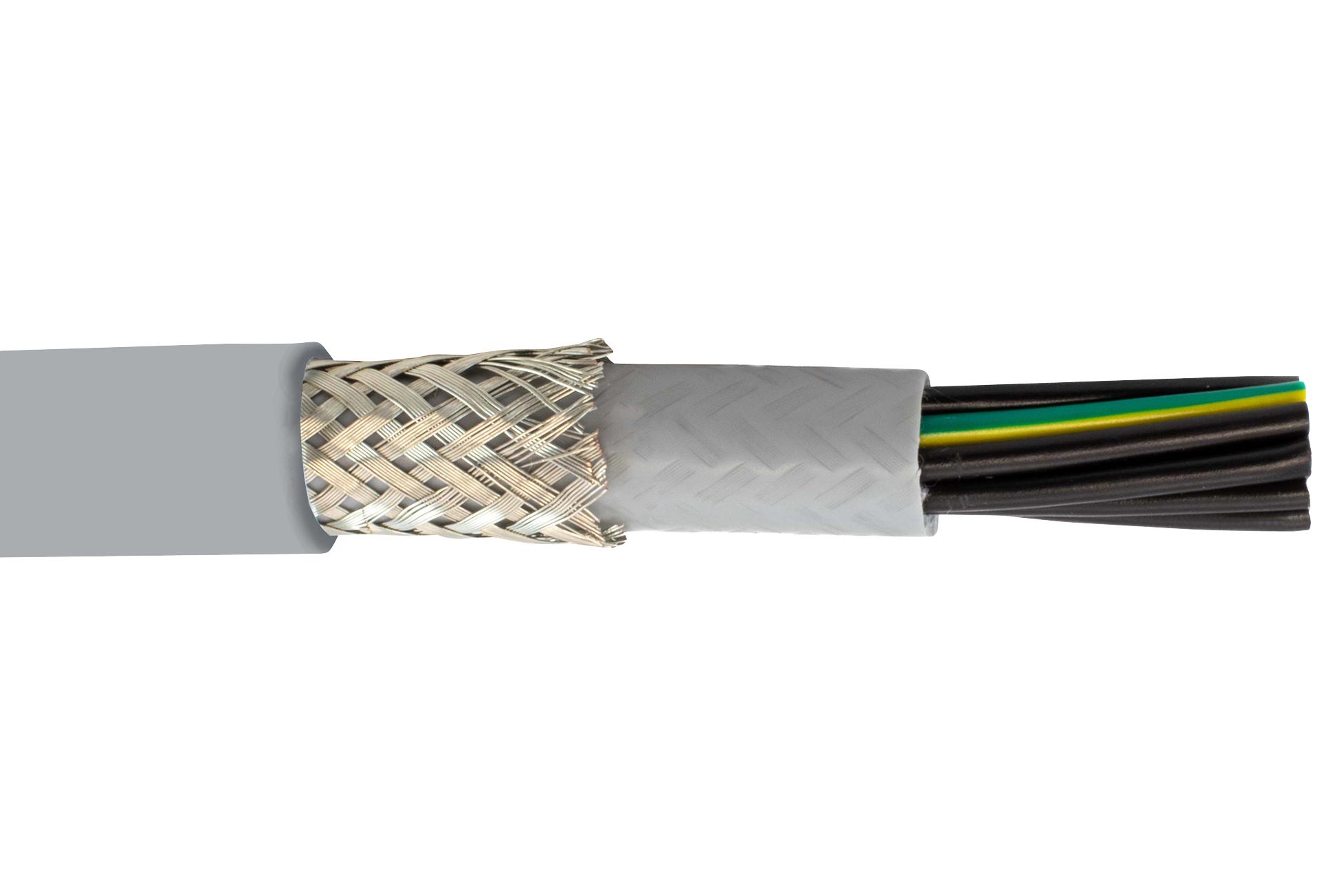

Pro-Met shielded flexible industrial control cable with 12 stranded bare copper conductors, tinned copper braid shield, and a grey PVC jacket. Designed to resist oils, UV damage, and chemicals, it supports up to 1 million flex cycles. Suitable for automation, medical, automotive, aerospace, and defense applications, it operates within -30°C to +70°C dynamically and -40°C to +80°C statically. The cable features a bending radius of 20 times its outer diameter for flexible movement and 6 times for static installations, ensuring durability and reliable performance in harsh environments.
ALPHA WIRE 470125CYGE321 Industrial Control Cable Specifications:
- Number of Conductors: 12 stranded bare copper conductors
- Conductor Material: Tinned copper
- Shield: Tinned copper braid, 80% coverage
- Jacket Material: PVC, grey (RAL 7001)
- Jacket Wall Thickness: 1.12 mm (nominal)
- Outer Diameter: 12.40 mm maximum
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Bend Radius: 20 x cable diameter (occasional flex), 6 x cable diameter (fixed)
- Voltage Rating: 300/500V
- Resistance: Yes
- Flex Life: Supports up to 1 million flex cycles
- Application: Industrial automation, medical, automotive, defense, aerospace
- Compliance: RoHS, REACH, EN 60228, IEC 60332-1, DIN VDE 0295 Class 5
Buy the Alpha Wire 470125CY – Reliable Control Cable for Industrial Applications
Secure your automation and control needs by purchasing Alpha Wire's 470125CY online today. This high-quality shielded control cable offers excellent flexibility, oil and UV resistance, and durability, supporting up to 1 million flex cycles. Ideal for medical, automotive, aerospace, and industrial automation applications, it features 12 stranded copper conductors with a protective braid shield and a durable PVC jacket. Easy to install and maintain, this cable ensures reliable operation even in harsh environments, making it the perfect choice for your critical electrical systems.
Buy Alpha Wire 470125CY now and benefit from high flexibility, oil resistance, UV durability, and robust performance for demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470125CYGE321?
You can click on the BUY or RFQ button to purchase 470125CYGE321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470125CYGE321?
You can download the 470125CYGE321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470125CYGE321?
ALPHA WIRE
