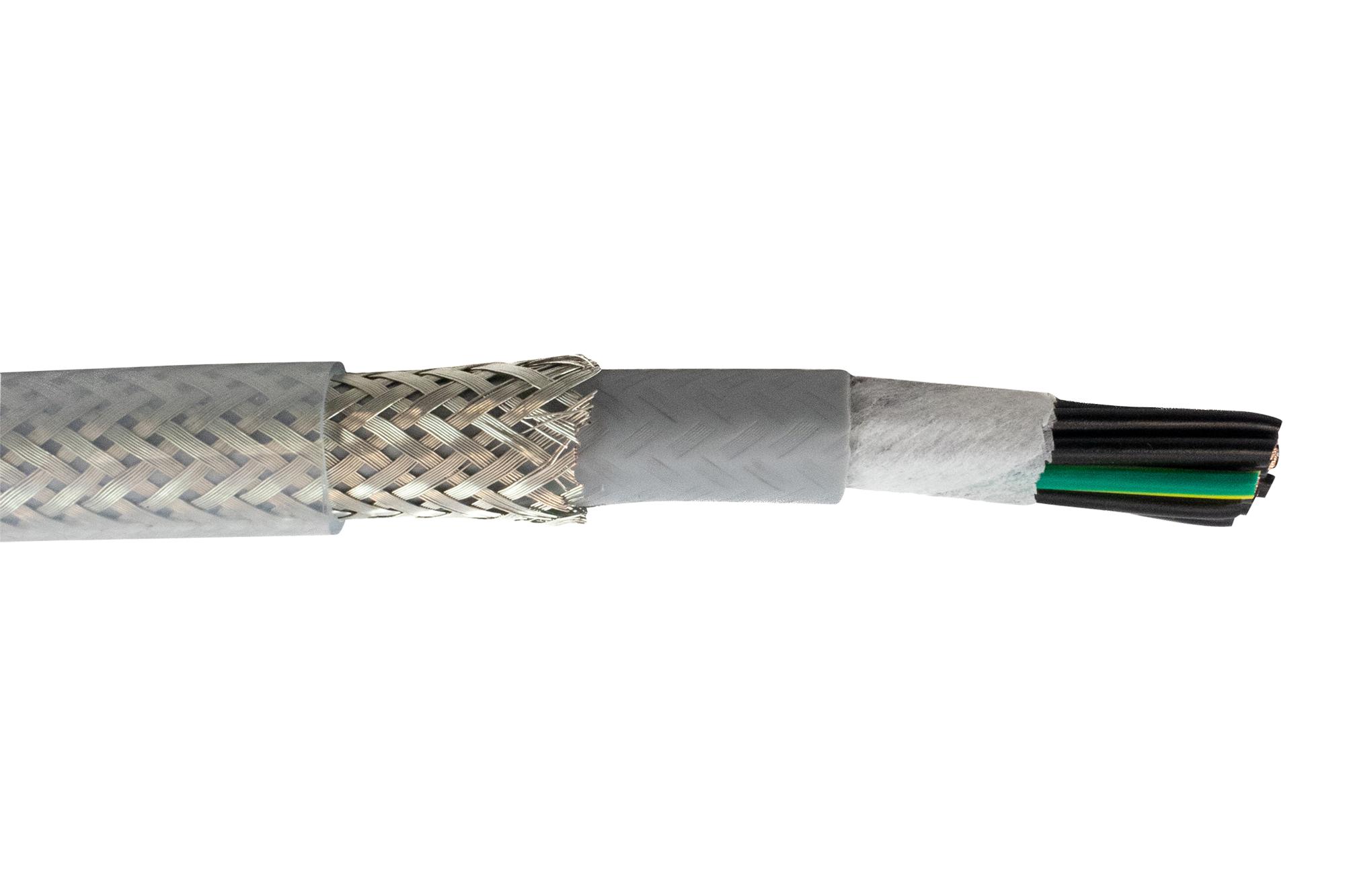

ALPHA WIRE 470127CYCL033 Control Cable
Pro-Met shielded flexible industrial control cable designed for demanding environments. It features 12 stranded bare copper conductors, tinned copper braid shield, and a PVC outer jacket. Suitable for food, medical, automation, automotive, defense, and aerospace sectors, it withstands oils, UV exposure, and mechanical movement. Rated for 300/500V, operates from -30°C to +70°C dynamically, and -40°C to +80°C statically, with a bend radius of 20 times the outer diameter for occasional flexing and 6 times for fixed installations. It ensures excellent chemical resistance and reliable electrical performance.
ALPHA WIRE 470127CYCL033 Control Cable Specifications:
- Conductor: 19 AWG, 12 stranded bare copper
- Insulation: PVC, 0.400 mm wall
- Outer Jacket: PVC, 0.72 mm wall, grey
- Shield: Tinned copper braid, 80% coverage
- Twists: 6.3 twists/meter (min)
- Temperature Range: -40°C to +80°C static, -30°C to +70°C dynamic
- Voltage Rating: 300/500 V
- Bend Radius: 20X outer diameter (flexible), 6X (fixed)
- Applicable Standards: IEC 60228 Class 5, IEC 60332-1, DIN EN 50290-2-22, VDE-REG 8770
- Resistance: Yes
- Color Code: White print, multiple black color identifiers, yellow/green for ground
- Certifications: RoHS, REACH compliant
Buy the Alpha Wire 470127CY – Reliable Control Cable for Industrial Applications
Purchase the Alpha Wire 470127CY shielded control cable online today to ensure your projects benefit from high-quality, flexible, and reliable electrical wiring. With 12 stranded copper conductors, an 80% tinned copper braid shield, and a durable PVC jacket, this cable has been designed for demanding industrial applications. Rated for 300/500V and operating in temperatures from -40°C to +80°C, its excellent resistance to oils, UV, chemicals, and mechanical stress guarantees safety and longevity. Now available for easy online ordering to meet your project timelines.
Order your Alpha Wire 470127CY control cable today and ensure dependable performance in demanding industrial environments with excellent flexibility and safety standards.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470127CYCL033?
You can click on the BUY or RFQ button to purchase 470127CYCL033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470127CYCL033?
You can download the 470127CYCL033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470127CYCL033?
ALPHA WIRE
