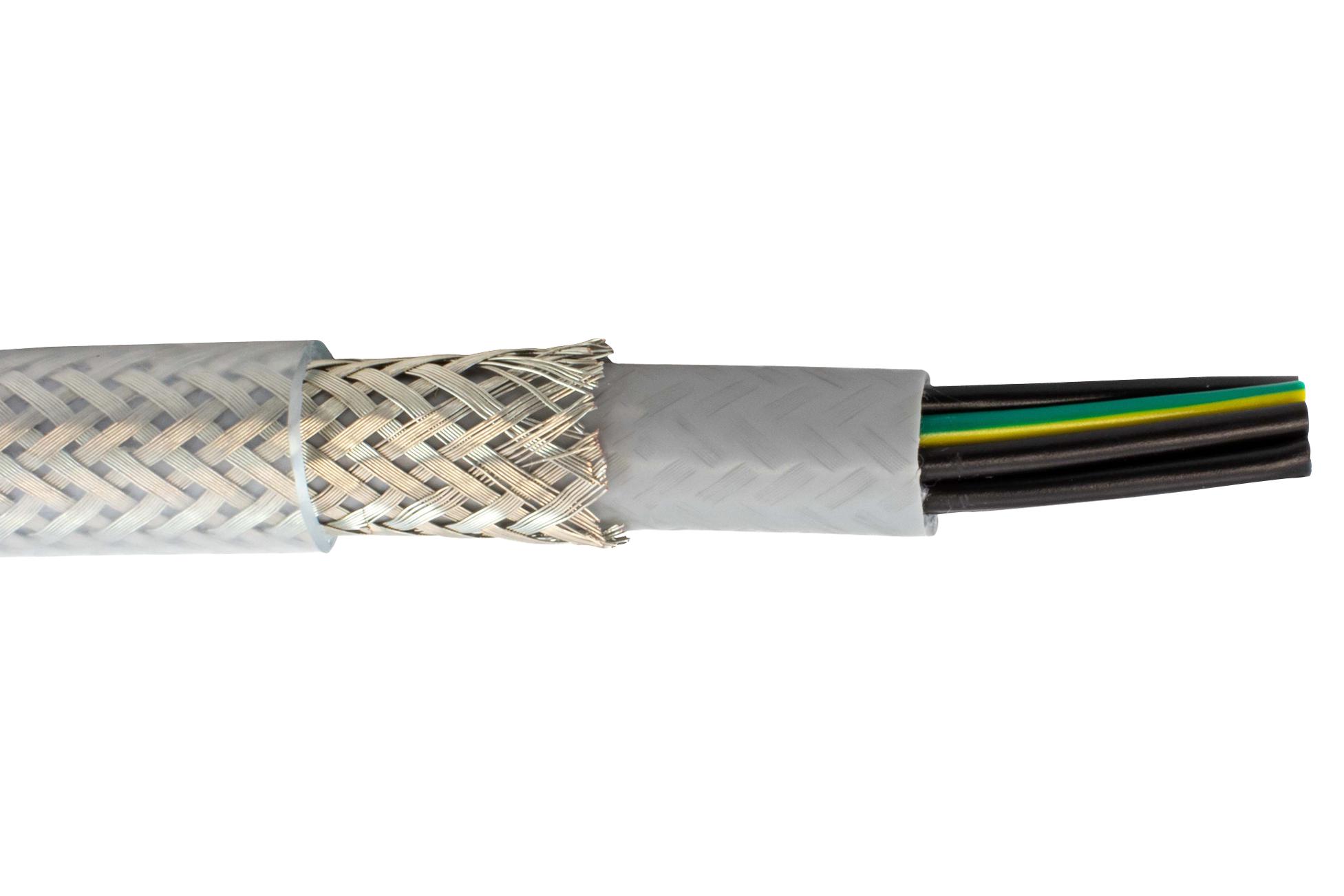

ALPHA WIRE 470315CYCL321 Industrial Control Cable
Pro-Met shielded flexible industrial control cable ideal for diverse applications such as food and beverage, medical devices, automation, electronics, automotive, and aerospace. It features three 15 AWG stranded bare copper conductors, a tinned copper braid shield with 80% coverage, and a transparent PVC outer jacket. Rated for 300/500 V with a maximum of 1 million flex cycles. Its temperature range is -40°C to +70°C static and -30°C to +70°C dynamic. The cable offers excellent UV, chemical resistance, and flexibility, with a bending radius of 20x its outer diameter for occasional movement and 6x for fixed installations.
ALPHA WIRE 470315CYCL321 Industrial Control Cable Specifications:
- Conductor: 3 x 15 AWG stranded bare copper
- Shield: Tinned copper braid, 80% coverage
- Outer Jacket: Transparent PVC
- Voltage Rating: 300/500 V
- Current carrying capacity: Based on AWG size
- Temperature Range: -40°C to +80°C static, -30°C to +70°C dynamic
- Bend Radius: 20x outer diameter (occasional movement), 6x (fixed)
- Mechanical Resistance: Rated for 1 million flex cycles
- Environmental Resistance: UV and chemical resistant
- Compliance: CE, RoHS, VDE, IEC 60228 Class 5, IEC 60332-1
- Application: Control panels, automation, sensors, motors, aerospace
- Diameter: Approximate outer diameter based on construction
- Flexibility: High; suitable for repeated movement and automation
- Durability: Designed for industrial environments with harsh conditions
Buy the Alpha Wire 470315CY U–2013 Reliable Industrial Control Cable for Automation
Purchase Alpha Wire 470315CY control cable online and ensure reliable performance in automation, robotics, and industrial environments. This shielded cable features three 15 AWG conductors with a tinned copper braid shield for maximum EMI protection. Rated for 300/500 V, it handles extensive flexing, static, and dynamic conditions from -40°C to +70°C. Its UV and chemical resistance make it perfect for demanding applications like control panels, sensors, and aerospace equipment. Buy now for durable, flexible, and high-quality control wiring that meets industrial standards.
Get Alpha Wire 470315CY today—built for precision and long-lasting durability in industrial automation and control applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470315CYCL321?
You can click on the BUY or RFQ button to purchase 470315CYCL321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470315CYCL321?
You can download the 470315CYCL321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470315CYCL321?
ALPHA WIRE
