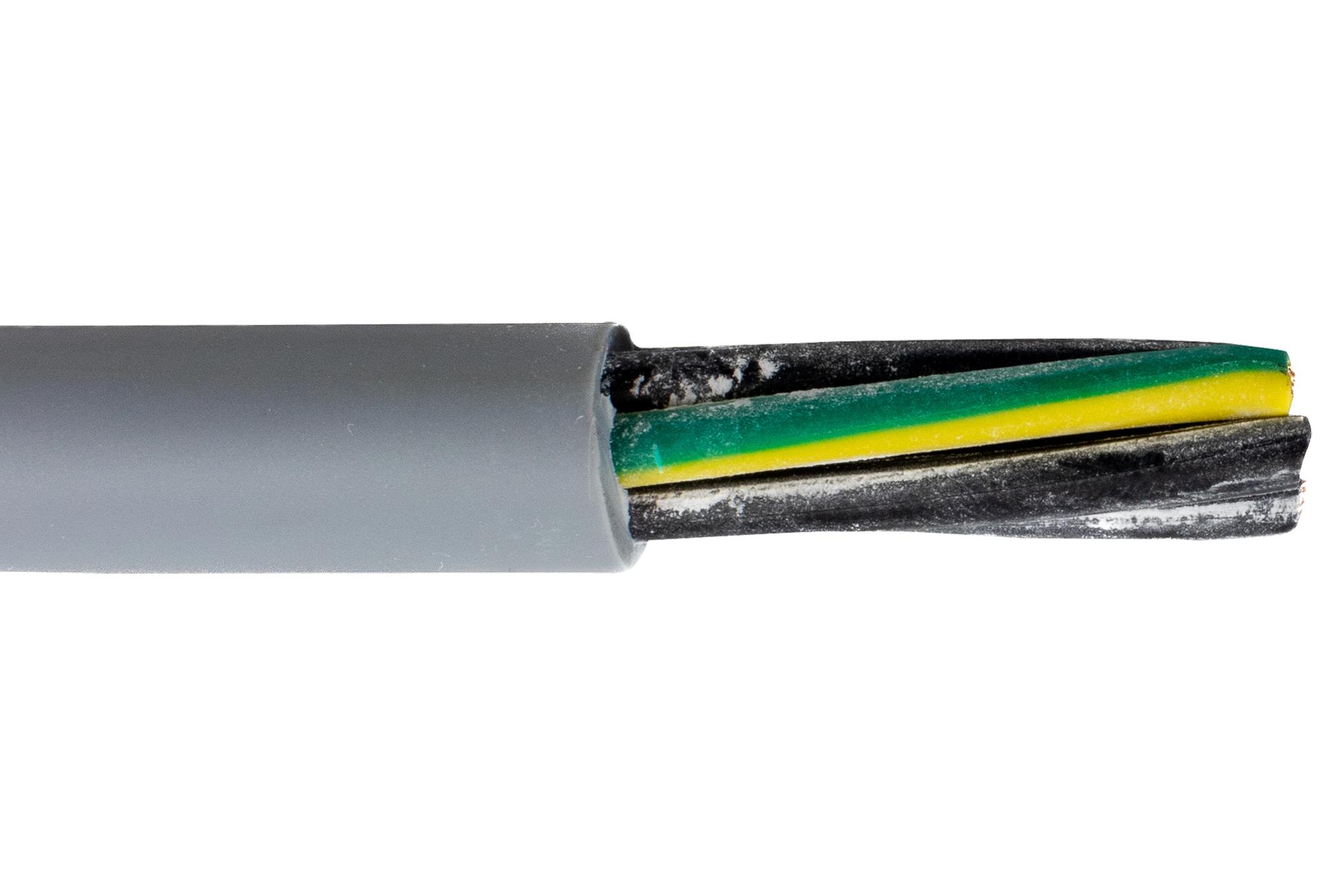

ALPHA WIRE 470315YYGE033 Control Cable
Pro-Met unshielded flexible industrial control cable features stranded bare copper conductors with a grey PVC jacket, resistant to oils and UV damage. Designed for demanding environments, it has 3 conductors of 15 AWG, rated for up to 1 million flex cycles. Operating temperature ranges from -30°C to +70°C dynamically and -40°C to +80°C statically. Bending radius is 10 times the outer diameter for occasional movement and 6 times for fixed installations. Suitable for automation, control sensors, motor controls, and military applications in industrial sectors.
ALPHA WIRE 470315YYGE033 Control Cable Specifications:
- Construction: stranded bare copper conductors
- Jacket Material: PVC, grey (RAL 7001)
- Number of Conductors: 3
- Conductor Size: 15 AWG
- Flex Life Rating: up to 1 million cycles
- Temperature Range: -40°C to +80°C static, -30°C to +70°C dynamic
- Bending Radius: 10x outer diameter for occasional movement, 6x for fixed installation
- Resistance: Oil resistant, UV resistant
- Application: control sensors, motor control, automation, aerospace, defense
- Part Number: 470315YYGE033
Buy the Alpha Wire Series Control Cable: 470315YYGE033
Buy your Alpha Wire Series control cable 470315YYGE033 online today and enjoy dependable performance in industrial automation, aerospace, and military applications. Featuring 3 conductors of 15 AWG, a durable PVC jacket resistant to oil and UV damage, and rated for up to 1 million flex cycles, this cable is ideal for demanding environments. Its temperature range from -40°C to +80°C and flexible bending radius ensure easy installation in various settings. Secure your reliable control wiring solution now for optimal project performance.
Order your Alpha Wire Series control cable 470315YYGE033 today and equip your projects with reliable, flexible, and oil-resistant control wiring.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470315YYGE033?
You can click on the BUY or RFQ button to purchase 470315YYGE033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470315YYGE033?
You can download the 470315YYGE033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470315YYGE033?
ALPHA WIRE
