ALPHA WIRE 470515CYGE321 Flexible Control Cable

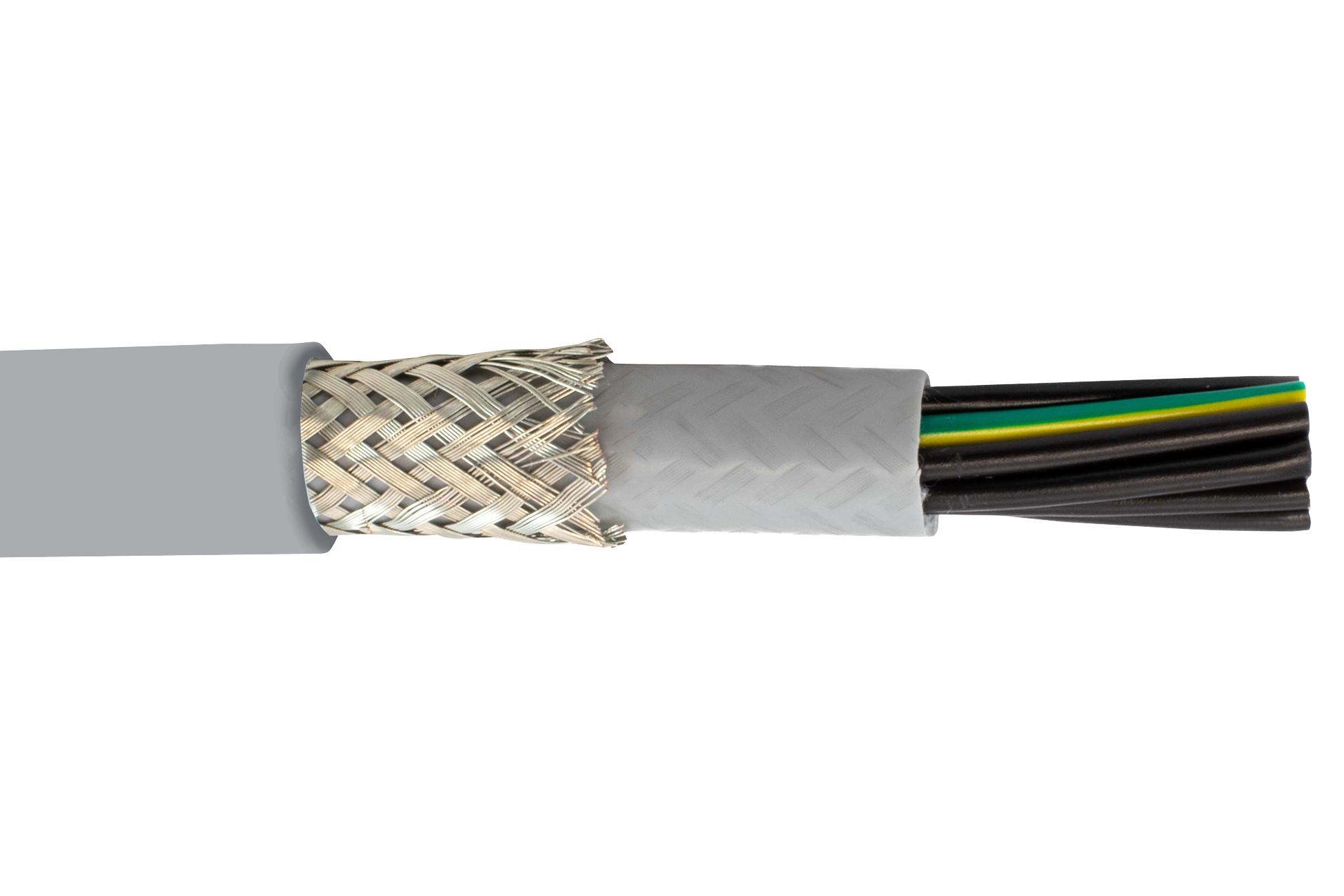

The Pro-Met shielded flexible control cable features five stranded bare copper conductors, each 15 AWG, protected by a tinned copper braid shield with 80% coverage and encased in a durable grey PVC jacket. Designed for demanding environments, it withstands oil, UV radiation, and mechanical stress, rated for up to 1 million flex cycles. Operating between -40°C and +80°C static, and -30°C to +70°C dynamic, it supports high flexibility with bending radii of 20x the outer diameter during movement and 6x when fixed. Suitable for industrial automation, medical, aerospace, automotive, and defense applications, ensuring safety and reliable performance.
ALPHA WIRE 470515CYGE321 Flexible Control Cable Specifications:
- Conductors: 5 stranded bare copper, 15 AWG
- Shield: Tinned copper braid, 80% coverage
- Jacket Material: PVC, grey, RAL 7001
- Operating Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Bend Radius: 20x outer diameter (occasional movement), 6x outer diameter (fixed)
- Rated Voltage: 300/500 V
- Insulation Resistance: Yes
- Number of Flex Cycles: Up to 1 million
- Oil Resistance: Yes
- UV Resistance: Yes
- Application Fields: Industrial automation, medical, aerospace, automotive, defense
Buy the Buy Alpha Wire Control Cable Part Number 470515CYGE321 Online
Secure your sourcing today by ordering the Alpha Wire control cable part number 470515CYGE321 online. Designed for demanding industrial environments, this flexible cable features five stranded copper conductors protected by a copper braid shield and encapsulated in resilient grey PVC. It withstands oil, UV, and mechanical stress, supporting up to 1 million flex cycles. Operating from -40°C to +80°C static, and -30°C to +70°C dynamic, it offers excellent flexibility with minimal bend radius, suitable for automation, aerospace, medical, and automotive installation needs.
Order your Alpha Wire Series470515CY control cable today and enhance your project with premium flexibility, durability, and high-performance electrical connectivity.
