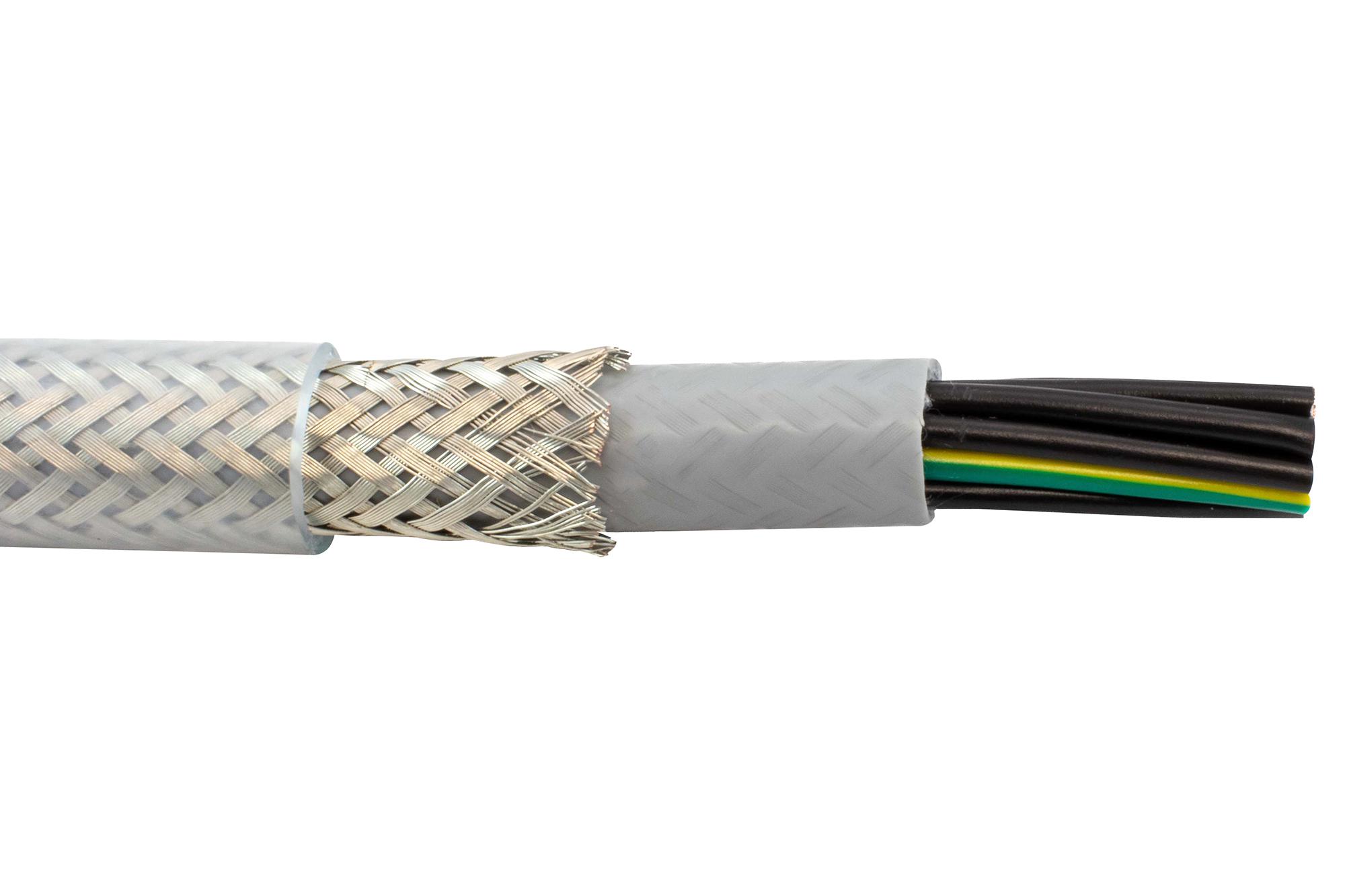

ALPHA WIRE 470715CYCL033 Industrial Control Cable
Pro-Met shielded flexible industrial control cable, impervious to oils and resistant to UV damage. Suitable for food, beverage, medical, industrial automation, automotive, defense, and aerospace uses. It features 7 stranded 15 AWG bare copper conductors, a tinned copper braid shield providing 80% coverage, and a transparent PVC outer jacket. Rated for up to 1 million flex cycles, operating from -40°C to +80°C. Bending radius is 20 times outer diameter for occasional movement and 6 times for fixed installation, ensuring durability in demanding environments.
ALPHA WIRE 470715CYCL033 Industrial Control Cable Specifications:
- Conductor: 15 AWG stranded bare copper
- Shield: Tinned copper braid, 80% coverage
- Outer Jacket: Transparent PVC
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Bending Radius: 20X outer diameter (occasional), 6X (fixed)
- Rated for up to 1 million flex cycles
- Chemical Resistance: Oil resistant, UV resistant
- Application: Food, beverage, medical, automation, automotive, defense, aerospace
- Maximum Voltage: 300/500V
- Certifications: CE, RoHS, REACH
Buy the Buy Alpha Wire Control Cable Part Number 470715CY Online
Order Alpha Wire control cable 470715CY online today. Designed for industrial automation, medical, aerospace, and automotive applications, it offers exceptional flexibility, UV and oil resistance, rated for up to 1 million flex cycles. With 7 conductors of 15 AWG stranded copper, a tinned copper braid shield for 80% coverage, and a transparent PVC outer jacket, this cable withstands harsh conditions from -40°C to +80°C. Perfect for demanding environments requiring reliable, long-lasting wiring solutions.
Get Alpha Wire 470715CY today—built for durability and high flex life in industrial automation and demanding environments.
