ALPHA WIRE 470715CYGE033 industrial control cable

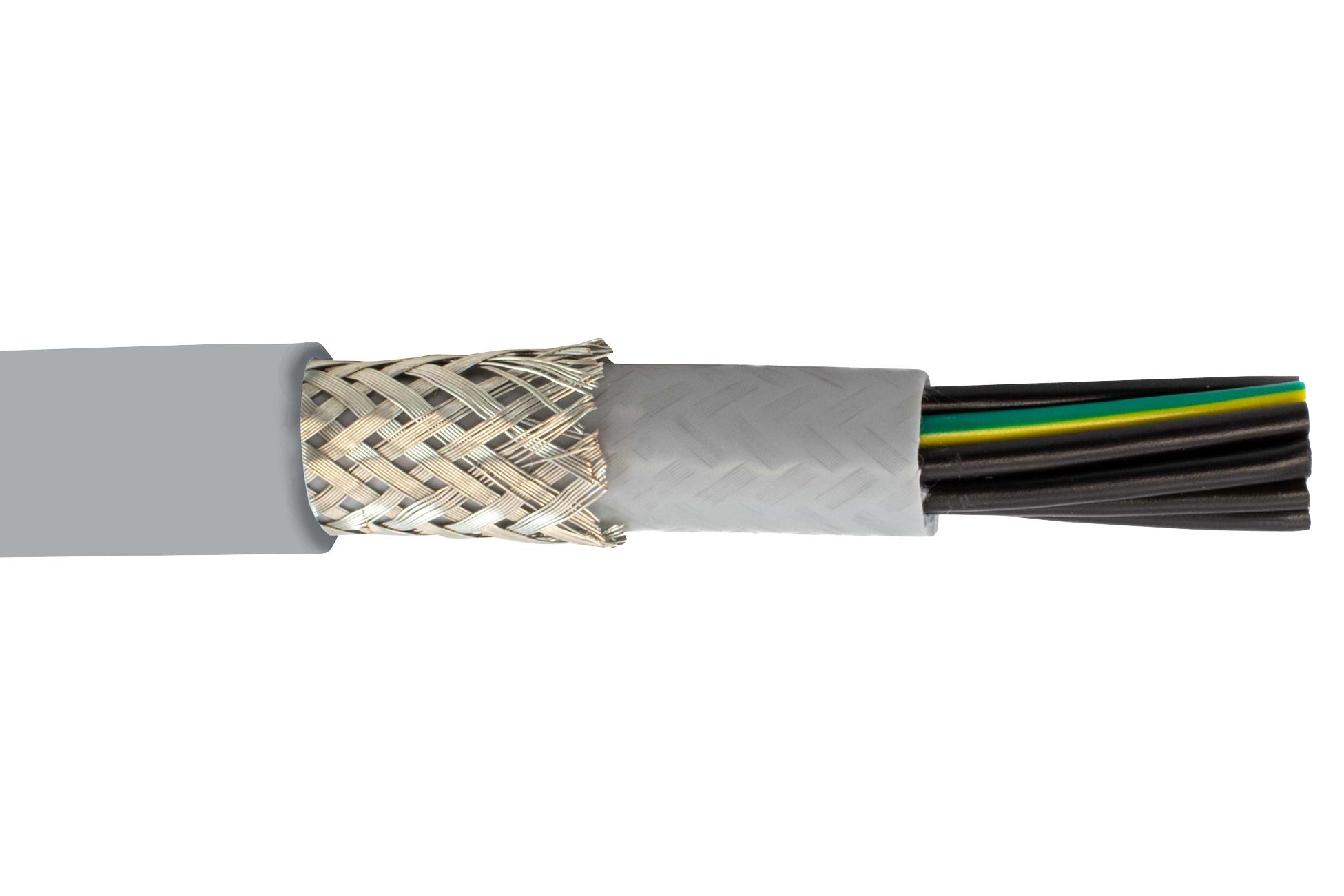

Pro-Met shielded flexible industrial control cable features seven 15 AWG stranded bare copper conductors, protected by a tinned copper braid shield and grey PVC jacket. Designed for demanding environments, it withstands oils, UV exposure, and chemical resistance. Suitable for industrial automation, medical, automotive, aerospace, and defense applications, the cable supports up to 1 million flex cycles. Operating within -30°C to +70°C dynamically and -40°C to +80°C statically, it offers a bending radius of 20x outer diameter for flexible routing and 6x for fixed installation, ensuring durability and flexibility in harsh conditions.
ALPHA WIRE 470715CYGE033 industrial control cable Specifications:
- Number of conductors: 7
- Conductor material: Bare copper, stranded
- Conductor size: 15 AWG
- Shield: Tinned copper braid, 80% coverage
- Outer jacket: Grey PVC
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Bending radius: 6x outer diameter (fixed), 20x outer diameter (flexing)
- Voltage Rating: 300/500 V
- Resistance: Conductor DC resistance 13.3 Q/Km @20°C
- Oil resistance: Yes
- UV resistance: Yes
- Chemical resistance: Yes
Buy the Alpha Wire Series Pro-Met Shielded Control Cable: 470715CYGE033
Purchase the Alpha Wire Pro-Met shielded control cable, featuring seven 15 AWG conductors with a tinned copper braid shield and PVC outer jacket. Designed for demanding industrial environments, it withstands oils, UV, and chemicals, ideal for automation, aerospace, and medical applications. Supports up to 1 million flex cycles, with a wide temperature range from -40°C to +80°C, ensuring durability and flexibility. Its resistance to wear and environmental factors makes it the perfect choice for high-performance, long-lasting wiring solutions in industrial machinery and control systems.
Get Alpha Wire 470715CYGE033 today—engineered for durability, flexibility, and reliable performance in industrial environments.
