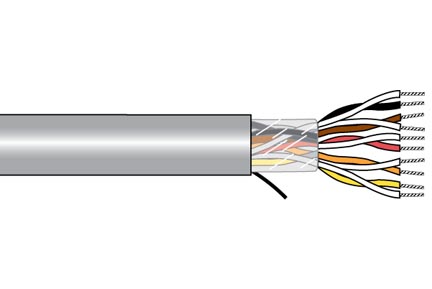

ALPHA WIRE 5021CSL005 Control Cable
This highly flexible and durable cable features a 22 AWG tinned copper conductor with a 0.010-inch wall PVC insulation, cabled in pairs with 12 twists per foot to ensure minimal electromagnetic interference. A 0.032-inch PVC jacket in multiple colors, including black, blue, and white, provides excellent environmental resistance, flame retardance, and compliance with UL, CE, and RoHS standards. Ideal for industrial, control, and automation applications requiring reliable signal transmission and mechanical protection over a temperature range of -35°C to +105°C.
ALPHA WIRE 5021CSL005 Control Cable Specifications:
- Conductor: 22 AWG Tinned Copper
- Conductor Diameter: 0.030 inches
- Insulation Thickness: 0.010 inches
- Insulation Material: PVC, Semi Rigid
- Jacket Wall Thickness: 0.032 inches
- Jacket Material: PVC
- Jacket Colors: Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White
- Cabling: 2 conductors cabled, 12 twists per foot
- Outer Diameter: 0.168 to 0.178 inches
- Pull Tension: 11 lbs maximum
- Bend Radius: 10 times cable diameter
- Temperature Range: -35°C to +105°C
- Voltage Rating: 300V
- Mutual Capacitance: 23.5 pF/ft @1 kHz
- Characteristic Impedance: 799 ohms
- Inductance: 0.18 μH/ft
- Conductor DCR: 16.2 Ω/1000 ft
- Certifications: UL Listed, CSA Certified, CE compliant
- Regulations: RoHS 2, REACH, California Proposition 65
- Flame Behavior: EN 60332-1, EN 60332-2, FT4
- Environmental: -35 to 105°C, suitable for industrial use
Buy the AlphaWire Series 711 Control Cable: 5021C
Purchase the AlphaWire control cable 5021C online for superior insulation and durability. Its flexible construction and PVC jacket make it ideal for industrial control and automation, offering resistance to heat, flame, and environmental factors. With UL, CSA, and RoHS certifications, this cable ensures safety and compliance for your electrical projects. Its cabled pair design with 12 twists per foot minimizes interference, providing dependable signal integrity across a wide temperature range of -35°C to +105°C. Order now for quick delivery and long-lasting performance.
Get AlphaWire 5021C today—built for reliable signal transmission in industrial environments with flame retardant and RoHS-compliant design.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5021CSL005?
You can click on the BUY or RFQ button to purchase 5021CSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5021CSL005?
You can download the 5021CSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5021CSL005?
ALPHA WIRE
