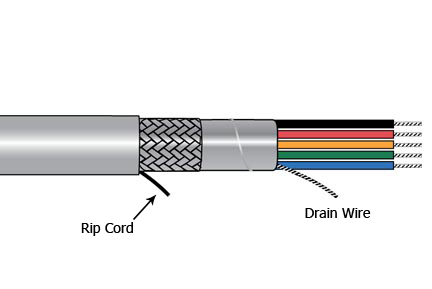

ALPHA WIRE 5156CSLATE100 4C 28 AWG Slate Data Cable
The ALPHA WIRE 5156C-SLATE-100 is a 4-conductor, 28 AWG data cable designed for continuous flexing applications. It utilizes stranded TC conductors with a semi-rigid PVC insulation and a durable slate-colored PVC jacket. This cable is ideal for applications requiring flexibility and reliable data transmission, such as robotics, medical devices, and industrial control systems. It meets UL and CSA specifications and is RoHS compliant, ensuring safety and environmental responsibility.
ALPHA WIRE 5156CSLATE100 4C 28 AWG Slate Data Cable Specifications:
- Component 1 Conductor: 28 (7/36) AWG TC
- Insulation Wall: 0.010" Nom. PVC, Semi Rigid
- Color Code: Alpha Wire Color Code D
- Cable Assembly: 4 Components Cabled
- Twists per foot: 12.0 Twists/foot (min)
- Core Wrap: Nonwoven Polyester Tape, 25% Overlap, Min.
- Jacket Wall: 0.040" Nom. PVC
- Jacket Color: SLATE
- Print: ALPHA WIRE-* P/N 86004 4C 28 AWG XTRAGUARD(R) CONTINUOUS FLEX DATA CABLE (UL) 105C TYPE CM --- C(UL) CMG OR AWM 2661 105C 300V --- LLXXXXXX CSA AWM I/II A/B FT4 105C 300V CE ROHS (SEQ FOOTAGE) * = Factory Code
- UL Component 1: AWM/STYLE 10002, 105°C / 300 VRMS
- UL Overall: AWM/STYLE 2661, 105°C / 300 VRMS
- UL CM: 105°C
- CSA AWM: AWM I/II A/B, 105°C / 300 VRMS
- CSA C(UL): TYPE CMG, 105°C
- CSA FT4: FT4
- CE RoHS: Compliant
- Temperature Range: -10 to 105°C (static), +5 to 105°C (dynamic)
- Bend Radius: 8X Cable Diameter (static/dynamic)
- Pull Tension: 5.5 Lbs, Maximum
- Sunlight Resistance: Yes
- Voltage Rating: 300 VRMS
- Capacitance: 18.5 pf/ft @1 kHz, Nominal Conductor to Conductor
- Inductance: 0.22 µH/ft, Nominal
- Conductor DCR: 66 Ω/1000ft @20°C, Nominal
- Packaging 1000 FT: 12 x 6 x 3.5 inches
- Packaging 500 FT: 10 x 4 x 3.5 inches
- Packaging 100 FT: 6.5 x 2 x 1.9 inches
