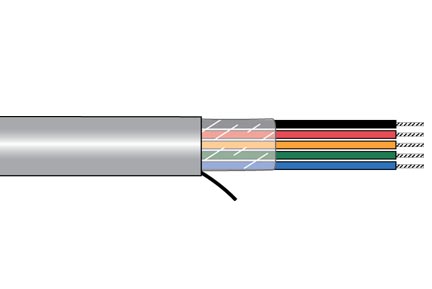

ALPHA WIRE 5402SL005 Multi-Conductor Cable
The product is a multi-conductor cable assembly featuring 22 AWG copper conductors with PVC insulation, IEC and UL/CSA compliance, suitable for industrial wiring, control panels, and electronic equipment requiring flexible, flame-retardant wiring solutions with high-temperature tolerance up to 105°C. It offers excellent resistance to oils and chemicals, with a smooth jacket, color-coded insulation, and a minimum of 5.3 twists per foot for signal integrity. Designed for reliable performance in demanding environments, it meets international safety standards including UL, CSA, CE, REACH, and RoHS, ensuring environmental compliance and durability.
ALPHA WIRE 5402SL005 Multi-Conductor Cable Specifications:
- Conductor: 22 AWG TC (7/30), copper
- Insulation: PVC, 0.032 inch wall, nominal
- Jacket: PVC, 0.063 inch wall, with ripcord
- Color Code: Black, Brown, and other colors including Yellow, Blue, Green, Red
- Twists per foot: Minimum 5.3
- Outer Diameter: Approximately 0.318 to 0.335 inches
- Temperature Rating: -30°C to +105°C
- Voltage Rating: 600V
- Capacitance: 21.9 pF/ft at 1 kHz
- Impedance: 109 ohms
- Inductance: 0.25 μH/ft
- Conductor Resistance: 16.3 Ω/1000 ft at 20°C
- Physical Lengths: 1000 ft, 500 ft, 100 ft spools
- Compliance: UL (MTW, AWM 2501, 21896), CSA, CE, RoHS, REACH
- Environmental Resistance: Oil, moisture, and chemicals
- Mechanical: Bend radius 10x cable diameter, pull tension 11 lbs
Buy the Buy AlphaWire Part Number 5402SL005 Online
Order the AlphaWire multi-conductor cable 5402SL005 online today to ensure high-quality wiring with flame-retardant PVC insulation, excellent oil and chemical resistance, and compliance with UL, CSA, CE, and RoHS standards. Perfect for industrial electronics, control panels, and environments demanding reliable, flexible, durable wiring solutions. Available in various lengths, this cable guarantees optimal performance at high temperatures up to 105°C, ensuring safety, environmental compliance, and superior electrical properties for demanding applications.
Buy AlphaWire 5402SL005 now and experience unmatched reliability and high-performance flexible wiring for industrial and control applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5402SL005?
You can click on the BUY or RFQ button to purchase 5402SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5402SL005?
You can download the 5402SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5402SL005?
ALPHA WIRE
