ALPHA WIRE 5452CSL001 Shielded Cable Assembly
This insulated cable assembly features 20 AWG tinned copper conductors with a PVC insulation wall, designed for reliable signal transmission in electronic and industrial applications. It includes twisted pairs, foil and braid shielding, and a durable PVC jacket available in multiple colors. Compliant with RoHS, REACH, and UL standards, the cable offers excellent thermal, electrical, and mechanical properties such as a temperature range of -30°C to 105°C, voltage rating of 300V, and low capacitance, making it suitable for complex electrical systems requiring durable and compliant wiring solutions.
ALPHA WIRE 5452CSL001 Shielded Cable Assembly Specifications:
- Conductor: 20 AWG Tinned Copper
- Insulation Wall: 0.016 inches PVC
- Pair Twist: 6.0 twists/foot
- Cable Assembly Twist: 4.4 twists/foot
- Shield: Alum/Mylar Tape with Drain Wire, Tin Copper
- Jacket Thickness: 0.032 inches PVC
- Jacket Colors: Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White
- Bend Radius: 10X Cable Diameter
- Temperature Range: -30°C to 105°C
- Voltage Rating: 300V
- Mutual Capacitance: 39 pF/ft @1 kHz
- Ground Capacitance: 70 pF/ft @1 kHz
- Characteristic Impedance: 550 ohms
- Inductance: 0.19 μH/ft
- Conductor DCR: 10.4 Ω/1000 ft @20°C
- Shield DCR: 8.2 Ω/1000 ft @20°C
- Cable Lengths: 1000 ft, 500 ft, 100 ft

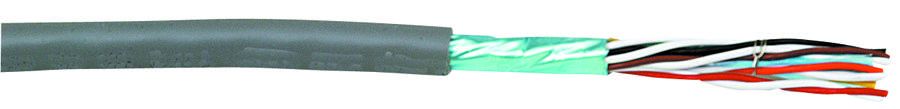

Buy the Buy AlphaWire Part Number 5452C Online
Order AlphaWire 5452C shielded cable assembly online today to ensure your electrical systems are equipped with high-quality, RoHS-compliant wiring. This versatile cable features 20 AWG tinned copper conductors, PVC insulation, and durable shielding for excellent signal integrity. Suitable for industrial, electronic, and control applications, it provides low capacitance, excellent thermal resistance, and flexibility. With multiple lengths available, ordering online guarantees fast delivery and the assurance of certified product performance, making it an ideal choice for professional wiring needs.
Get AlphaWire 5452C today—designed for high reliability, shielding, and compliance with industry standards for complex electrical wiring.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5452CSL001?
You can click on the BUY or RFQ button to purchase 5452CSL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5452CSL001?
You can download the 5452CSL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5452CSL001?
ALPHA WIRE
