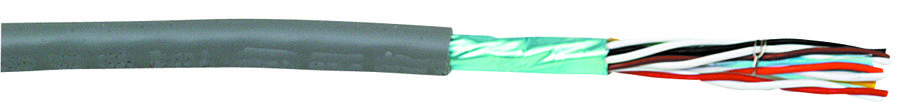

ALPHA WIRE 5493CSL001 Shielded Multi-Conductor Cable
The product is a shielded multi-conductor cable designed for flexible and reliable electrical installation in industrial environments. It features 24 AWG tinned copper conductors with a PVC wall insulation, wrapped with nonwoven polyester tape and alum/mylar shielding for superior EMI protection. The cable supports a voltage rating of 300 V, with low mutual and ground capacitance, and is RoHS and REACH compliant. Its physical construction includes flexible, durable materials suitable for various industrial wiring applications, with an overall jacket wall thickness of 0.032 inches in multiple color options.
ALPHA WIRE 5493CSL001 Shielded Multi-Conductor Cable Specifications:
- Conductors: 24 AWG tinned copper with PVC insulation, 0.010" wall thickness
- Shielding: Alum/Mylar tape, 25% overlap, foil facing in
- Jacket: PVC, 0.032" wall, color options include Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White
- Twist Rate: 6.9 twists/foot (cable assembly), 9.6 twists/foot (pair)
- Voltage Rating: 300 V
- Capacitance: Mutual capacitance 25 pF/ft @1 kHz, ground capacitance 45 pF/ft @1 kHz
- Impedance: Characteristic impedance approximately 769 ohms
- Temperature Range: -35°C to +105°C
- Pull Tension: 24.6 lbs maximum
- Conductor Resistance: 15.9 Ω/1000 ft @20°C
- Shield Resistance: 0.19 pH/ft, nominal
- Cable Lengths Available: 1000 ft, 500 ft, 100 ft
- Compliance: RoHS 2, REACH, CE, UL, CSA
Buy the Buy AlphaWire Shielded Multi-Conductor Cable Part Number 5493C Online
Secure your industrial wiring with AlphaWire shielded multi-conductor cable Part Number 5493C. Designed for durability and shielding against EMI, this 24 AWG cable offers excellent electrical performance, flexibility, and compliance with RoHS and REACH standards. Ideal for complex installations requiring reliable signal integrity, it features alum/mylar shielding, PVC insulation, and is available in various colors and lengths. Purchase online today to benefit from fast delivery, competitive pricing, and trusted quality for your electrical projects.
Order your AlphaWire 5493C shielded multi-conductor cable today and ensure reliable EMI protection for your industrial wiring projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5493CSL001?
You can click on the BUY or RFQ button to purchase 5493CSL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5493CSL001?
You can download the 5493CSL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5493CSL001?
ALPHA WIRE
