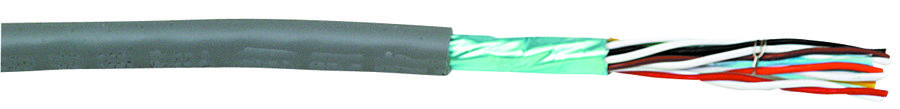

ALPHA WIRE 549919CSL005 Shielded Signal Cable
This shielded cable assembly features 24 AWG tinned copper conductors with PVC insulation, designed for reliable signal transmission up to 300 V. It includes a nonwoven polyester core wrap, alum/mylar foil shield, and a durable PVC jacket in various colors like black, yellow, and blue. Compliant with UL, CSA, CE, and RoHS standards, it offers excellent mechanical and electrical properties, including a temperature range from -35°C to 105°C, a maximum pull tension of 137 lbs, and characteristic impedance of 820 ohms. Ideal for secure, shielded signal and control applications in harsh environments.
ALPHA WIRE 549919CSL005 Shielded Signal Cable Specifications:
- Conductor: 24 AWG Tinned Copper
- Insulation Thickness: 0.010" PVC, Semi Rigid
- Jacket Thickness: 0.032" PVC
- Jacket Colors: Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White
- Shield: Alum/Mylar Tape, 25% Overlap, Foil Facing In
- Core Wrap: Nonwoven Polyester Tape, 25% Overlap
- Twist per Foot: 2.8 Twists/foot (min)
- Bend Radius: 10X Cable Diameter
- Temperature Range: -35°C to 105°C
- Pull Tension: 137 lbs (Maximum)
- Voltage Rating: 300 V
- Mutual Capacitance: 23.1 pF/ft@1 kHz
- Ground Capacitance: 42 pF/ft@1 kHz
- Characteristic Impedance: 820 ohms
- Inductance: 0.19 pH/ft
- Conductor DCR: 26 ohms/1000 ft
- Overall Diameter: 0.433" to 0.458"
- Certifications: UL, CSA, CE, RoHS Compliant
Buy the Buy Alpha Wire Shielded Cable Part Number 5499/19C Online
Purchase Alpha Wire's shielded signal cable online today. Crafted with 24 AWG tinned copper conductors, a durable PVC jacket, and alum/mylar foil shielding, it ensures superior electrical performance and mechanical strength. Perfect for secure signal and control applications, this cable is compliant with UL, CSA, CE, and RoHS standards. Its versatile color options, high temperature tolerance, and excellent shielding make it ideal for industrial environments. Order now for fast delivery and dependable performance in demanding conditions.
Get Alpha Wire 5499/19C shielded cable today—designed for reliable signal transmission and long-lasting durability in harsh environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 549919CSL005?
You can click on the BUY or RFQ button to purchase 549919CSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 549919CSL005?
You can download the 549919CSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 549919CSL005?
ALPHA WIRE
