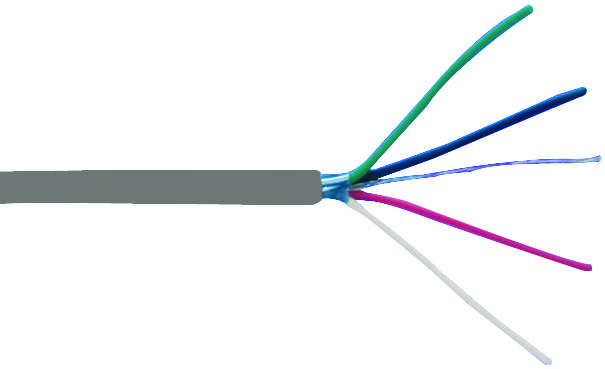

ALPHA WIRE 58120SL001 Shielded Communication Cable
This shielded communication cable features a 22 AWG copper conductor with a 0.008-inch PVC plenum-rated insulation. It is cabled with four twists per foot, shielded with alum/mylar tape with 25% overlap, and includes a drain wire. The outer jacket is 0.015-inch PVC, plenum-rated, providing durable protection for data and control applications. Rated for 300V, it offers excellent capacitance and impedance properties, making it suitable for sensitive electronic systems. Compliance with UL, CSA, CE, and RoHS standards ensures safety and environmental sustainability.
ALPHA WIRE 58120SL001 Shielded Communication Cable Specifications:
- Material: Copper conductor, PVC insulation and jacket
- Conductor Size: 22 AWG
- Insulation Thickness: 0.008 inches
- Jacket Thickness: 0.015 inches
- Shield: Aluminum/Mylar tape, 25% overlap
- Shield Drain Wire: 24 AWG TC
- Shield Resistance: 15.9 Q/1000ft @20°C
- Conductor Resistance: 15.3 Q/1000ft @20°C
- Voltage Rating: 300V
- Capacitance: 51 pF/ft @ 1kHz
- Ground Capacitance: 92 pF/ft @ 1kHz
- Inductance: 0.17 μH/ft
- Temperature Range: -5°C to 75°C
- Bend Radius: 10× cable diameter
- Pull Tension: 58 lbs maximum
- Length: 1000 ft, 12 x 10 x 5; 500 ft, 12 x 4.5 x 3.5, continuous spool
Buy the Buy Alpha Wire Communication Cable Part Number 58120 Online
Purchase the Alpha Wire 58120 shielded communication cable online now to secure dependable and high-quality wiring solutions for your data transmission needs. This cable features a copper conductor with PVC insulation and a durable PVC jacket, both plenum-rated for safety. Its aluminum/mylar shield minimizes interference, making it ideal for sensitive electronic systems. Rated for 300V, it offers excellent capacitance characteristics and conforms to UL, CSA, CE, and RoHS standards. Order today to enhance your electronic infrastructure with reliable, compliant wiring.
Order your Alpha Wire 58120 shielded communication cable today and ensure reliable, high-performance connections for your electronic projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 58120SL001?
You can click on the BUY or RFQ button to purchase 58120SL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 58120SL001?
You can download the 58120SL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 58120SL001?
ALPHA WIRE
