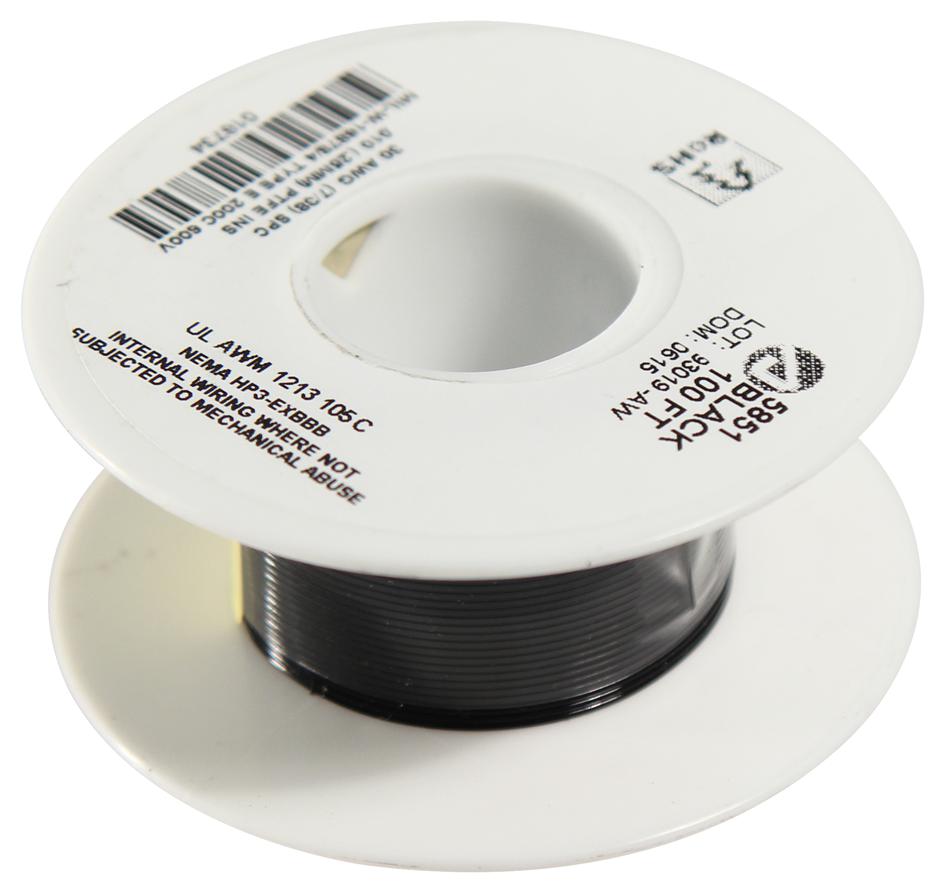

ALPHA WIRE 5851BK005 Hook-up Wire
The 5851 BK005 is a 100-foot hook-up wire with stranded silver-plated copper conductors and PTFE insulation. Designed for control cabinets in protected environments, it suits machine tools, high-temperature ovens, and off-road equipment. Compliant with MIL-W-16878E Type E, it offers high resistance to wear, abrasion, oil, solvents, and chemicals, ensuring excellent electrical performance. The wire features easy handling, straightforward stripping, and termination, with a maximum pull tension of 0.88 pounds and a nominal inductance of 0.07 microhenries per foot. Ideal for defense, military, aerospace, and automotive use.
ALPHA WIRE 5851BK005 Hook-up Wire Specifications:
- Conductor Material: Silver-plated copper
- Insulation: PTFE (Teflon)
- Length: 100 feet
- Voltage Rating: 600 V (maximum)
- Temperature Range: -60°C to 200°C
- Maximum Pull Tension: 0.88 pounds
- Inductance: 0.07 microhenries per foot, nominal
- DCR: 94 milliohms per 1000 feet at 20°C
- Standards: MIL-W-16878E Type E, UL JAWM/STYLE 1213, VW-1
- Environmental Compliance: RoHS 2, REACH, California Proposition 65
- Color Options: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet
Buy the Buy AlphaWire Part Number 5851BK005 Online
Purchase the AlphaWire 5851BK005 hook-up wire online for versatile, high-performance electrical wiring. This 100-foot length features stranded silver-plated copper conductors and PTFE insulation, making it ideal for control cabinets, industrial machinery, and demanding environments. Its exceptional resistance to wear, oil, solvents, and chemicals ensures durability in harsh conditions. Compliant with MIL-W-16878E standards, it offers easy handling, stripping, and reliable termination. Perfect for aerospace, military, automotive, and electronics applications requiring superior electrical performance and safety.
Order your AlphaWire 5851BK005 hook-up wire today and ensure reliable performance in control cabinets and high-temperature environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5851BK005?
You can click on the BUY or RFQ button to purchase 5851BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5851BK005?
You can download the 5851BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5851BK005?
ALPHA WIRE
