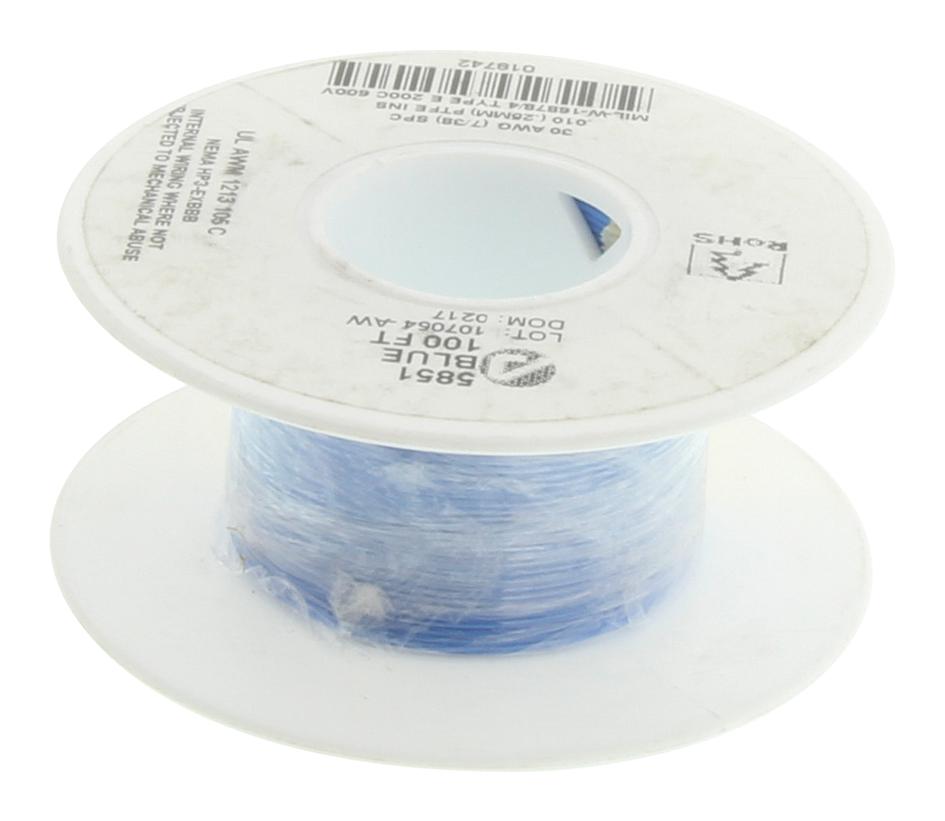

ALPHA WIRE 5851BL005 High-Temperature Hookup Wire
The 5851 BL005 is a 100-foot hookup wire featuring a stranded silver-plated copper conductor and PTFE insulation. Designed for use in control cabinets within protected environments, it is suitable for applications such as machine tools, high-temperature ovens, and off-road construction equipment. Conforming to MIL-W-16878E Type E standards, it offers high resistance to wear, abrasion, oil, solvents, and chemicals. This wire provides excellent electrical performance, easy handling, and reliable termination, making it ideal for demanding industrial and military environments requiring high-temperature tolerance and durability.
ALPHA WIRE 5851BL005 High-Temperature Hookup Wire Specifications:
- Conductor: stranded silver-plated copper
- Insulation: PTFE, 0.010 inch wall
- Length: 100 feet (spool dimension 3.5 x 3 x 1.125 inches)
- Temperature Range: -60°C to +200°C
- Voltage Rating: 600 V AC/DC
- Minimum Bend Radius: 10 times cable diameter
- Pull Tension: 0.88 lbs maximum
- Applicable Standards: MIL-W-16878E Type E, UL JAWM/STYLE 1213, VW-1
- Certifications: RoHS compliant, China RoHS compliant
- Environmental: Resistant to wear, abrasion, oils, solvents, chemicals
- Conductor Resistance: 94 Ω/1000 ft at 20°C
- Inductance: 0.07 pH/ft
- Physical Properties: Outer diameter approximately 3.5x3x1.125 inches per spool
Buy the Buy AlphaWire Part Number 5851BL005 Online
Purchase the AlphaWire 5851BL005 high-temperature hookup wire online to ensure superior durability, excellent electrical properties, and ease of handling for your control cabinet and industrial applications. This 100-foot spool features a stranded silver-plated copper conductor with PTFE insulation, providing excellent resistance to wear, chemicals, and high temperatures up to 200°C. Perfect for machine tools, ovens, and off-road equipment, this wire guarantees reliable connections and long service life in demanding environments, streamlining installation and maintenance.
Buy AlphaWire 5851BL005 now and experience unmatched reliability and high-temperature performance in demanding industrial and military applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5851BL005?
You can click on the BUY or RFQ button to purchase 5851BL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5851BL005?
You can download the 5851BL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5851BL005?
ALPHA WIRE
