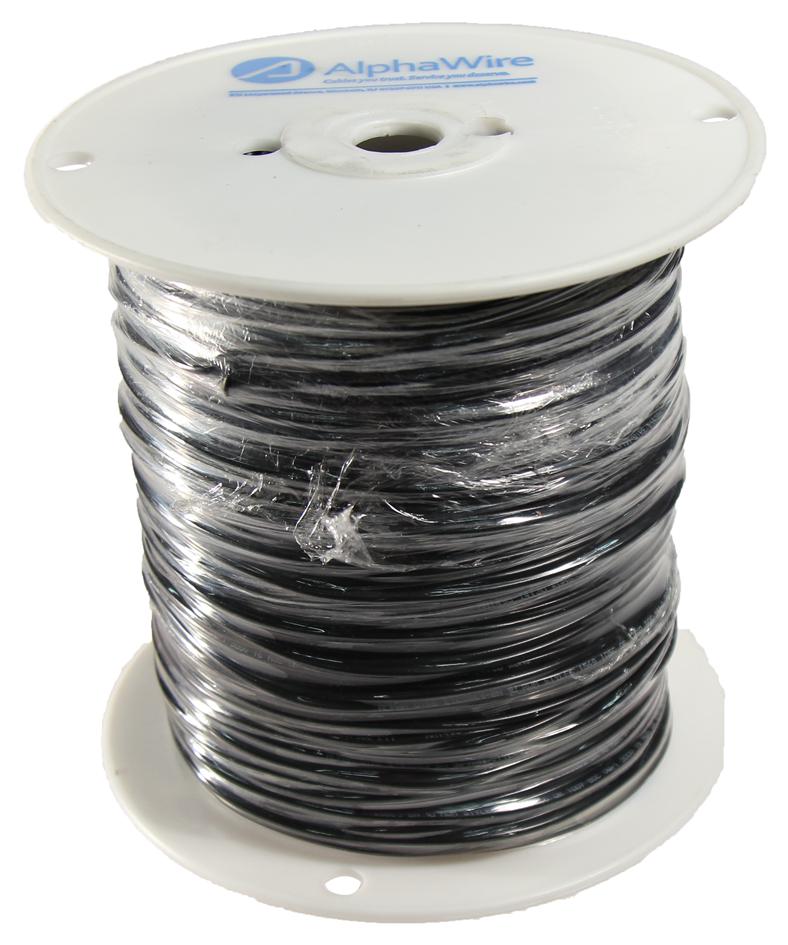

ALPHA WIRE 5853OR005 Hook Up Wire
The ALPHA WIRE 5853 OR005 is a versatile hook-up wire designed for demanding applications. Constructed with 26 AWG stranded tinned copper conductor and a robust PTFE insulation, this wire offers excellent electrical performance, flexibility, and resistance to harsh environments. It is suitable for use in appliances, electronics, and industrial equipment where a wide temperature range and reliable insulation are critical. The wire's RoHS compliance ensures adherence to environmental regulations, making it a sustainable choice for modern applications. Available in various colors and put-ups, it provides flexibility for diverse project needs.
ALPHA WIRE 5853OR005 Hook Up Wire Specifications:
- Component 1: 1 X 1 HOOKUP
- Conductor: 26 (7/34) AWG SPC
- Insulation: 0.010" Wall, Nom. PTFE
- Diameter: 0.019 inch
- Insulation Diameter: 0.039+/- 0.004 inch
- Colors: WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN, ORANGE, GRAY, VIOLET, WHITE/BLACK, WHITE/RED, WHITE/GREEN, WHITE/YELLOW, WHITE/BLUE, WHITE/BROWN, WHITE/VIOLET, WHITE/ORANGE, GREEN/YELLOW
- UL Style: AWM/STYLE 1213
- UL Temperature Rating: 105°C
- UL Voltage Rating: VW-1
- Military Specification: MIL-W-16878/4 (Type E)
- Military Temperature Rating: 200°C
- Military Voltage Rating: 600 VRMS
- Inductance: 0.06 µH/ft, Nominal
- Conductor DCR: 38 Ω/1000ft @20°C, Nominal
- Temperature Range: -60 to 200°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 2.18 Lbs, Maximum
- Voltage Rating: 600 VRMS
- Packaging 1000 FT: 6.5 x 2 x 1.9 Max. 3 separate pieces; Min length/piece 100 FT
- Packaging 100 FT: 2.75 x 1 x 1.125 Continuous length
