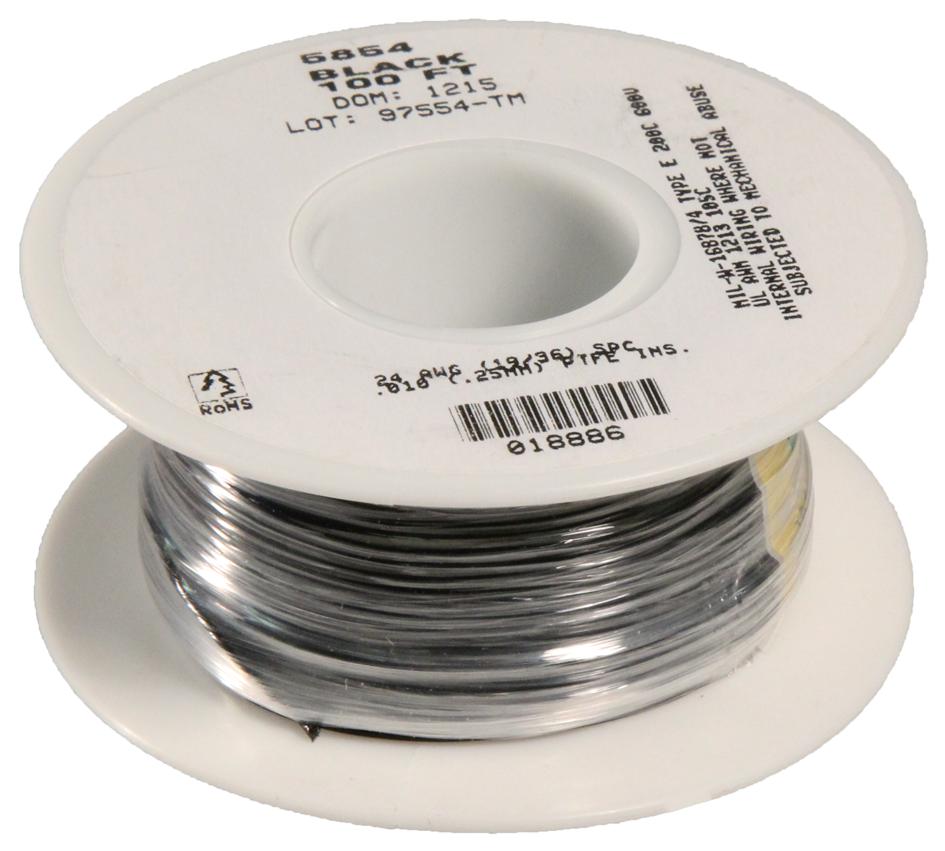

ALPHA WIRE 5854BK005 Hook-Up Wire
The ALPHA WIRE 5854 BK005 is a versatile hook-up wire designed for reliable performance in a wide range of applications. Constructed with 19/36 stranded SPC conductor and a durable PTFE insulation, this wire offers excellent electrical properties and resistance to harsh environments. It meets UL AWM Style 1213 standards and is compliant with RoHS directives, ensuring environmental responsibility. Commonly used in industrial machinery, control panels, and automotive systems, the 5854 BK005 provides a dependable connection solution for various electrical needs. Its flexible design and robust construction contribute to long-lasting performance and ease of installation.
ALPHA WIRE 5854BK005 Hook-Up Wire Specifications:
- Component 1: 1 X 1 HOOKUP
- Conductor AWG: 24 (19/36) AWG SPC
- Insulation Wall: 0.010" Nom. PTFE
- Insulation Diameter: 0.044+/- 0.004
- Colors: WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN, ORANGE, SLATE, VIOLET
- UL Style: AWM/STYLE 1213
- UL Temperature Rating: 105°C
- UL Voltage Rating: VW-1
- Military Spec: MIL-W-16878/4 (Type E)
- Military Temperature Rating: 200°C
- Military Voltage Rating: 600 VRMS
- NEMA Spec: HP3-EXBEE
- Temperature Range: -60 to 200°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 3.7 Lbs, Maximum
- Voltage Rating: 600 VRMS
- Inductance: 0.05 µH/ft, Nominal
- Conductor DCR: 22.3 Ω/1000ft @20°C, Nominal
- Packaging 1000 FT: 6.5 x 2 x 1.9 Max. 3 separate pieces; Min length/piece 100 FT
- Packaging 100 FT: 2.75 x 1 x 1.125 Continuous length
- RoHS Compliant: Yes
- REACH Compliant: Yes
- California Proposition 65: Compliant
