ALPHA WIRE 58567BK005 Hookup Wire
This high-quality hookup wire features a PTFE insulation with a 0.010-inch wall thickness, supporting a temperature range from -60°C to 200°C. It is UL listed under style 1213 and satisfies military standards MIL-W-16878/4 (Type E) rated for 200°C and 600 V. The wire is available in multiple colors, including white, black, red, green, yellow, blue, brown, orange, slate, and violet. Suitable for demanding electrical applications, it offers excellent flexibility, low inductance of 0.04 pH/ft, conductor resistance of 9.5 Ω/1000ft at 20°C, and a maximum pull tension of 8.7 lbs. The cable's physical dimensions vary with length, with options for 1000 ft and 100 ft spools, providing durability and reliability for industrial wiring setups.
ALPHA WIRE 58567BK005 Hookup Wire Specifications:
- Conductor Diameter: 20 (7/28) AWG SPC. 0.038
- Insulation Wall Thickness: 0.010" PTFE
- Temperature Range: -60°C to 200°C
- Voltage Rating: 600 V
- Inductance: 0.04 pH/ft
- Conductor Resistance: 9.5 Ω/1000ft at 20°C
- Bend Radius: 10X Cable Diameter
- Maximum Pull Tension: 8.7 lbs
- Available Lengths: 1000 ft and 100 ft spools
- Materials: PTFE insulation, copper conductor
- Environmental Compliance: RoHS 2, REACH, California Prop 65
- Certifications: UL Style 1213, MIL-W-16878/4 Type E, NEMA HP3-EXBGB
- Operating Temperature: -60°C to 200°C

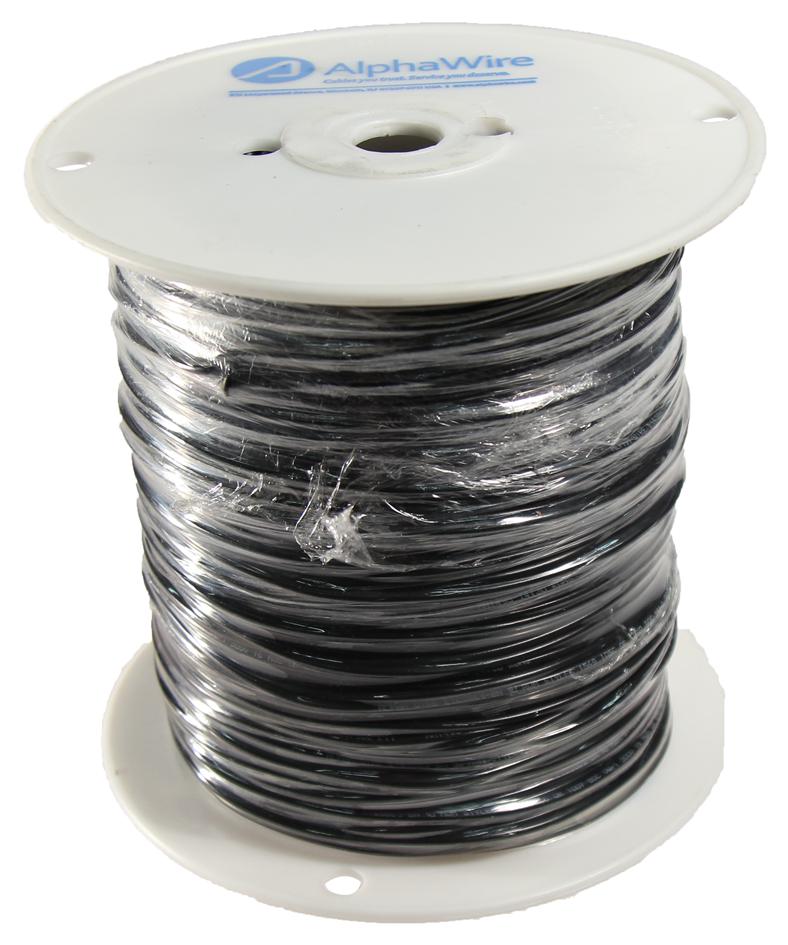

Buy the AlphaWire 5856/7 U+2013 Reliable hookup wire for Industrial Applications
Secure your electrical projects today by purchasing the AlphaWire 5856/7 hookup wire online. Designed for high performance, this wire features PTFE insulation, excellent temperature resistance from -60°C to 200°C, and complies with UL style 1213 standards. It's ideal for demanding industrial and military applications, offering low inductance and conductor resistance, along with durable, flexible construction. Available in multiple colors and lengths, it guarantees reliable performance for wiring, control panels, and automation systems. Order now for fast, safe delivery and enhance your project's safety and durability.
Order your AlphaWire 5856/7 high-temperature hookup wire today and equip your electrical projects with dependable, UL-listed insulation for demanding environments.
