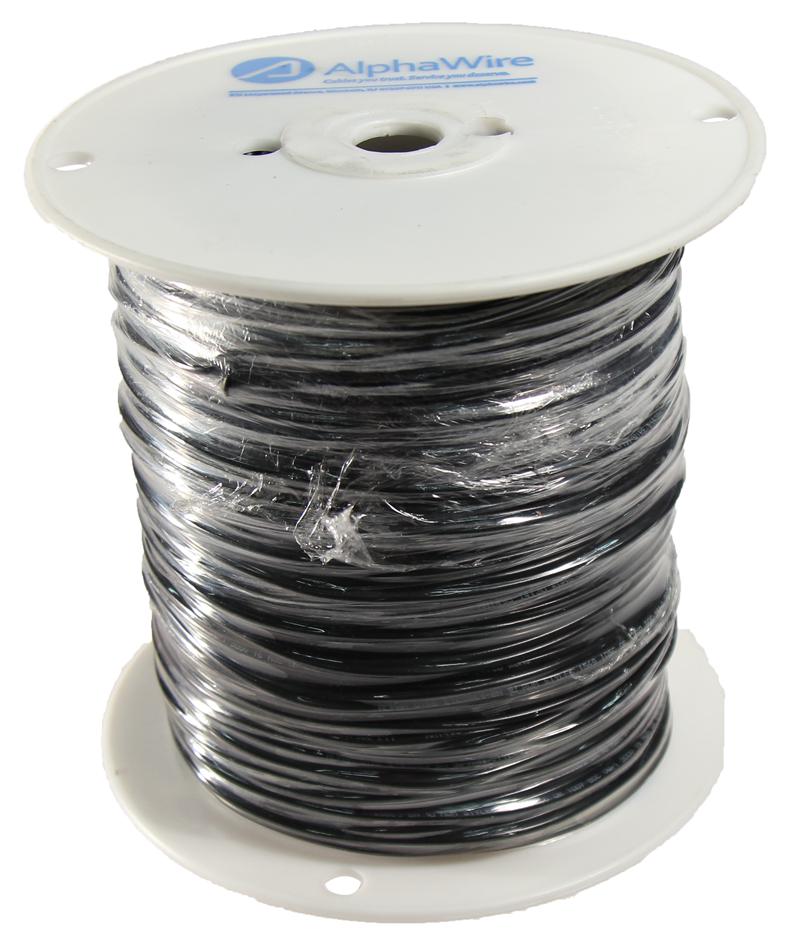

ALPHA WIRE 5856BR005 Hook-up wire
The 5856 BR005 is a 100-foot hook-up wire featuring stranded silver-plated copper conductors and PTFE insulation. Designed for control cabinets in protected environments, it suits machine tools, high-temperature ovens, and off-road construction equipment. Compliant with MIL-W-16878E Type E standards, it offers resistance to wear, abrasion, oil, solvents, and chemicals. Its electrical properties include a voltage rating of 600 V and a nominal inductance of 0.04 µH per foot. The wire ensures durability, flexibility, and ease of handling for aerospace, military, defense, and automotive applications. Max tension is 9.6 lbs.
ALPHA WIRE 5856BR005 Hook-up wire Specifications:
- Conductor: Stranded silver-plated copper
- Insulation: PTFE, 0.010 inch wall thickness
- Length: 100 feet (compatible with 6.5 x 2 x 1.9 spool dimensions)
- Voltage Rating: 600 V
- Temperature Range: -60°C to +200°C
- Pull Tension: 9.6 lbs maximum
- Inductance: 0.04 µH/ft nominal
- Conductor Resistance: 8.7 Ω/1000 ft at 20°C
- Applicable Standards: MIL-W-16878/4 Type E
- Environmental Compliance: RoHS 2, REACH, California Proposition 65
- Color Options: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Gray, Violet, White/Blue
Buy the AlphaWire 5856BR005 – Reliable Hook-up Wire for Industrial Applications
Purchase the AlphaWire 5856BR005 hook-up wire online today for reliable performance in control systems and industrial environments. Featuring stranded silver-plated copper conductors and PTFE insulation, this 100-foot cable meets MIL standards and withstands harsh conditions such as high temperatures, chemicals, and abrasion. Its flexibility, ease of handling, and consistent electrical properties make it ideal for aerospace, military, automotive, and control cabinet applications. Order now to ensure your projects benefit from top-quality wiring designed for durability and precise electrical performance.
Get AlphaWire 5856BR005 today—designed for high-temperature environments and durable electrical connections in demanding settings.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5856BR005?
You can click on the BUY or RFQ button to purchase 5856BR005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5856BR005?
You can download the 5856BR005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5856BR005?
ALPHA WIRE
