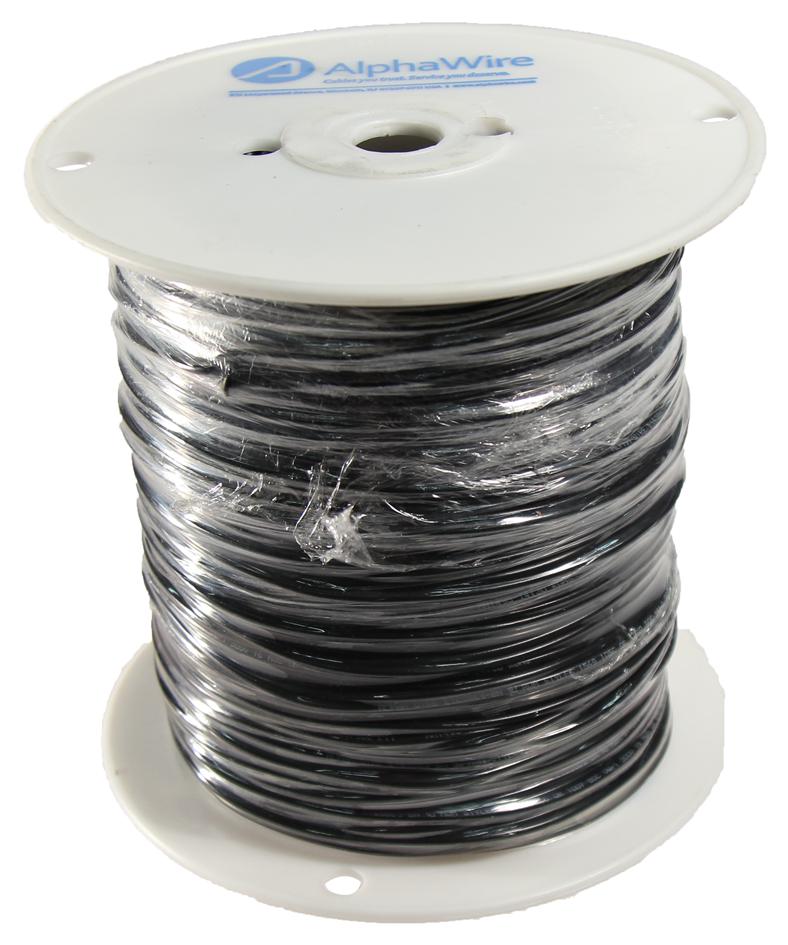

ALPHA WIRE 5857BK005 Hook-up Wire
The 5857 BK005 is a 100-foot black hook-up wire with 18 AWG stranded silver-plated copper conductor and PTFE insulation. It complies with MIL-DTL-16878/4 type E standards and offers high durability, resistance to wear, abrasion, oil, solvents, and chemicals. The wire features excellent uniformity for easy handling, stripping, and termination. It can withstand a maximum pull tension of 14.9 lbs, with an insulation thickness of 0.010 mm. Suitable for operating in temperatures from -60°C to 200°C, this wire is compliant with EXBHE NEMA HP3 type and REACH regulation (EC 1907/2006). Its applications include automation and process control, microwave systems, defense, military, aerospace, and industrial environments.
ALPHA WIRE 5857BK005 Hook-up Wire Specifications:
- Conductor: 18 AWG stranded silver-plated copper
- Insulation: PTFE, 0.010 inch wall thickness
- Length: 100 feet
- Color: Black
- Temperature Range: -60°C to 200°C
- Voltage Rating: 600 V AC
- Pull Tension: Maximum 14.9 lbs
- Bend Radius: 10 times cable diameter
- Resistance: Conductor DCR 5.6 Ω/1000 ft at 20°C
- Inductance: 0.03 μH/ft
Buy the Buy Alpha Wire Part Number 5857BK005 Online
Purchase the Alpha Wire 5857BK005 hook-up wire online now to enhance your projects with durable, high-temperature resistant wiring. Made with 18 AWG stranded silver-plated copper conductors and PTFE insulation, this 100-foot spool meets MIL-DTL-16878/4 standards and NEMA HP3 specifications. It is suitable for demanding environments such as aerospace, defense, and industrial automation, capable of operating at temperatures from -60°C to 200°C. Trust Alpha Wire's quality for secure, efficient electrical connections with excellent electrical and mechanical properties.
Order your Alpha Wire 5857BK005 hook-up wire today and ensure high-performance, reliable connections in industrial and military applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5857BK005?
You can click on the BUY or RFQ button to purchase 5857BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5857BK005?
You can download the 5857BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5857BK005?
ALPHA WIRE
