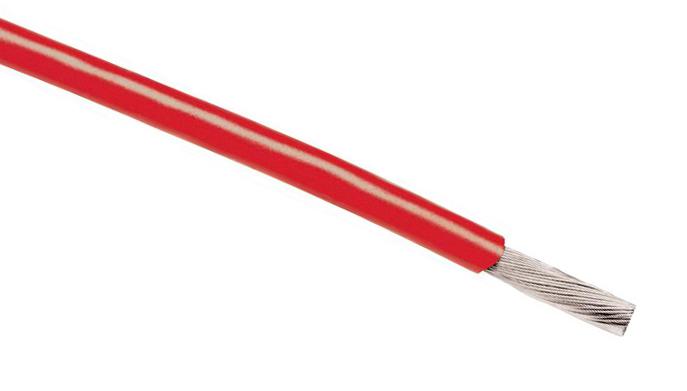

ALPHA WIRE 5858RD005 Hook-up Wire
The 5858 RD005 is a 100-foot, 16 AWG, 600V hook-up wire with stranded silver-plated copper conductors and PTFE insulation, designed for durability in harsh environments. It withstands temperatures from -60°C to 200°C, resists wear, abrasion, oil, solvents, and chemicals, providing excellent flexibility and ease of handling. The wire features an insulation thickness of 0.012 mm, maximum pull tension of 19.1 lbs, and meets MIL-DTL-16878/4 Type E, NEMA HP3 EXBJE, and REACH standards. It is ideal for automation, aerospace, military, defense, and industrial applications requiring reliable high-temperature wiring solutions.
ALPHA WIRE 5858RD005 Hook-up Wire Specifications:
- Conductor Material: Silver-plated copper
- Conductor Size: 16 AWG
- Voltage Rating: 600 V
- Temperature Range: -60°C to 200°C
- Insulation Material: PTFE
- Insulation Thickness: 0.012 inches
- Cable Length: 100 feet
- Bend Radius: 10X Cable Diameter
- Pull Tension: 19.1 lbs
- Standards: MIL-DTL-16878/4 Type E, NEMA HP3-EXBJE
- Compliance: RoHS, REACH
- Color: Red, available in other colors
- Application: Military, aerospace, industrial, automation
Buy the AlphaWire Series 5858 Hook-up Wire: 5858RD005
Purchase the AlphaWire Series 5858 hook-up wire online today and enjoy reliable performance in demanding environments. With 100 feet of PTFE-insulated, silver-plated copper conductors rated for 600V and temperatures up to 200°C, this wire offers exceptional flexibility, durability, and resistance to oil, chemicals, and abrasion. Perfect for aerospace, military, automation, and industrial applications, it ensures secure connections and easy handling. Order now to secure a high-quality wire that meets stringent military and industry standards with quick delivery and excellent customer support.
Order your AlphaWire Series 5858 100-foot hook-up wire today and ensure reliable high-temperature connections in your military, aerospace, or industrial projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5858RD005?
You can click on the BUY or RFQ button to purchase 5858RD005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5858RD005?
You can download the 5858RD005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5858RD005?
ALPHA WIRE
