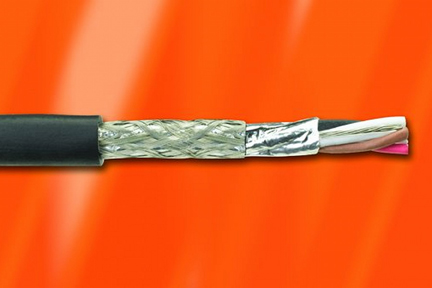

ALPHA WIRE 58603SL002 Shielded Multi-Conductor Cable
The ALPHA WIRE 58603 SL002 is a shielded multi-conductor cable designed for demanding applications requiring robust signal integrity and protection against electromagnetic interference. Constructed with 24 AWG stranded conductors insulated with FEP, the cable incorporates a Mylar shield to minimize noise and crosstalk. A durable PVDF jacket provides excellent physical protection and chemical resistance. This cable is ideal for use in industrial automation, data transmission, and other applications where reliable performance is critical. It meets UL and CSA standards and is RoHS compliant, ensuring environmental responsibility.
ALPHA WIRE 58603SL002 Shielded Multi-Conductor Cable Specifications:
- Conductor AWG: 24 (7/32)
- Conductor Material: TC (Tinned Copper)
- Insulation Material: FEP
- Insulation Wall Thickness: 0.007"
- Pair Color Code: BLACK-RED, BLACK-WHITE, BLACK-GREEN
- Shield Material: Foil/Mylar Tape
- Shield Coverage: 25% Overlap
- Drain Wire AWG: 24 (7/32)
- Jacket Material: PVDF
- Jacket Wall Thickness: 0.009"
- Jacket Color: SLATE
- Print: ALPHA WIRE-* P/N 58603 3PR 24 AWG SHIELDED 125C (UL) TYPE CMP OR C(UL) TYPE CMP FT6 CE ROHS * = Factory Code
- UL Rating: CMP, 125°C
- CSA Rating: FT6
- CE Compliance: EU Low Voltage Directive 2006/95/EC
- Temperature Range: -25 to 125°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 32 Lbs, Maximum
- Voltage Rating: 150 VRMS
- Characteristic Impedance: 54 Ω +/- 10
- Inductance: 0.17 µH/ft, Nominal
- Mutual Capacitance: 30 pF/ft @1 kHz, Nominal
- Ground Capacitance: 54 pF/ft @1 kHz, Nominal
- Conductor DCR: 26 Ω/1000ft @20°C, Nominal
- Ind. Shield DC Resistance: 20.9 Ω/1000ft @20°C, Nominal
- Packaging - 1000 FT: 12 x 6 x 3.5 Max.
- Packaging - 500 FT: 12 x 4.5 x 3.5 Continuous length
