ALPHA WIRE 5874BR005 High-Temperature Hookup Wire
This premium hookup wire from Alpha Wire features a PTFE insulation with a 0.0145-inch wall thickness, designed for high-temperature and high-voltage applications. It is compliant with UL, Military, and NEMA specifications, rated for 200°C and 300V to 1000V, with excellent mechanical and electrical properties. The wire is available in multiple colors including white, black, red, green, yellow, blue, brown, orange, slate, and violet, and comes on spools of 100 or 1000 feet. Ideal for demanding industrial environments, it ensures reliable performance with superior insulation and conductor quality.
ALPHA WIRE 5874BR005 High-Temperature Hookup Wire Specifications:
- Conductor Gauge: 24 (19/36) AWG
- Insulation Wall Thickness: 0.0145 inches
- Insulation Material: PTFE
- Temperature Rating: -60°C to 200°C
- Voltage Rating: 300V to 1000V
- Maximum Pull Tension: 3.7 lbs
- Bend Radius: 10X Cable Diameter
- Conductor DC Resistance: 22.3 ohms per 1000 feet at 20°C
- Inductance: 0.06 pH per foot
- Spool Lengths: 100 ft and 1000 ft, dimensions vary
- Applicable Standards: UL JAWMIS, MIL-W-16878/5, NEMA HP3-EEXBEE
- RoHS & REACH Compliant, free of hazardous substances according to European and Chinese standards

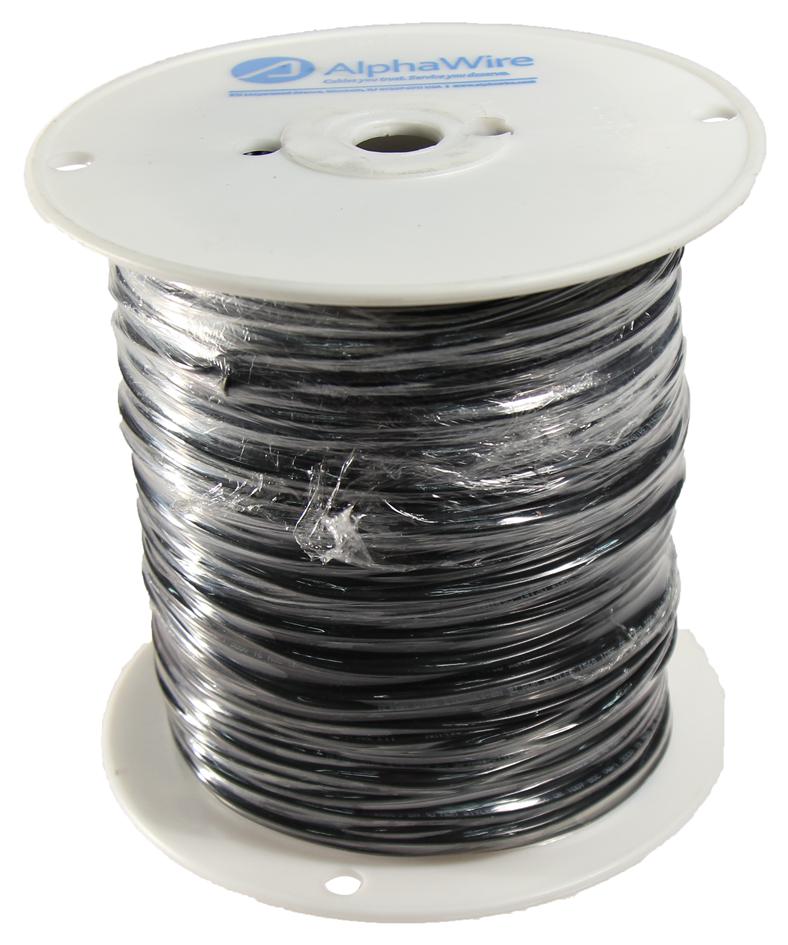

Buy the Buy Alpha Wire Part Number 5874BR005 Online
Order Alpha Wire Part Number 5874BR005 online today and enjoy reliable, high-performance PTFE-insulated hookup wire. Designed for demanding industrial environments, this wire offers excellent temperature resistance up to 200°C, high voltage capability up to 1000V, and superior insulation durability. Available in multiple colors and lengths, it’s ideal for high-temperature wiring, robotics, aerospace, and military applications. Secure your supply of premium wiring with quick delivery, ensuring your projects meet the highest safety and performance standards.
Get Alpha Wire 5874BR005 today—crafted for high-temperature resilience and superior electrical performance.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5874BR005?
You can click on the BUY or RFQ button to purchase 5874BR005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5874BR005?
You can download the 5874BR005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5874BR005?
ALPHA WIRE
