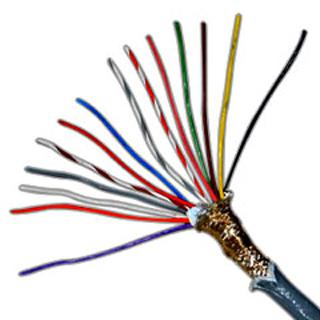

ALPHA WIRE 58803SL001 Shielded Control Cable
High-quality shielded cable designed for reliable electrical performance across a wide temperature range of -25°C to 125°C. Compliant with UL, CSA, CE, and RoHS standards, this 24 AWG cable features a robust construction with a 0.011" wall, nominal PVDF insulation, and shielded twisted pairs for enhanced noise immunity. Suitable for industrial automation, control systems, and electronic equipment, it offers a voltage rating of 150 V. Its physical dimensions include a diameter of approximately 0.163" to 0.174" and flexible bend radius of 10x cable diameter, ensuring durability in demanding applications.
ALPHA WIRE 58803SL001 Shielded Control Cable Specifications:
- Conductor: 24 AWG Tinned Copper
- Insulation: Nominal PVDF, 0.011" Wall
- Outer Diameter: 0.163" to 0.174"
- Shield: Foil with drain wire, Eclipse Facing In
- Temperature Range: -25°C to 125°C
- Voltage Rating: 150 V
- Impedance: 77.9 +/-10 Ohms
- Inductance: 0.17 pH/ft, Nominal
- Mutual Capacitance: 20 pF/ft @1 kHz
- Ground Capacitance: 36 pF/ft @1 kHz
- Conductor DCR: 26 Ohm/1000 ft @20°C
- Shield DCR: 15.9 Ohm/1000 ft @20°C
- Bend Radius: 10x cable diameter
- Pull Tension: 24.6 lbs maximum
- Length Options: 500 ft continuous or 1000 ft in 3 pieces
- Standards: UL, CSA, CE, RoHS, REACH, California Prop 65
Buy the Buy AlphaWire 24 AWG Shielded Cable Part Number 58803SL001 Online
Purchase the AlphaWire 58803SL001 shielded control cable online now to ensure high durability, superior noise immunity, and compliance with international safety standards. This 24 AWG cable is ideal for industrial and electronic applications, offering excellent flexibility, a broad temperature range of -25°C to 125°C, and a voltage rating of 150 V. Its shielded twisted pairs, robust PVDF insulation, and UL and CSA certifications make it the perfect choice for reliable, high-performance wiring in demanding environments. Order today for fast delivery!
Order your AlphaWire 58803SL001 shielded control cable today and ensure reliable performance in your industrial automation and electronic projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 58803SL001?
You can click on the BUY or RFQ button to purchase 58803SL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 58803SL001?
You can download the 58803SL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 58803SL001?
ALPHA WIRE
