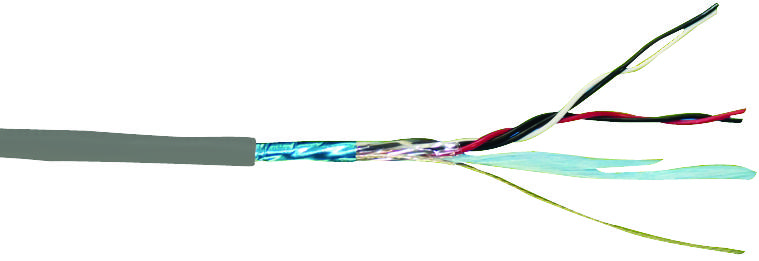

ALPHA WIRE 5906CSL002 Shielded Cable
The shielded cable assembly features a durable PVC jacket, 22 AWG conductors, and comprehensive shielding, designed for reliable electrical performance. It complies with UL, CSA, RoHS, and CE standards, with a temperature range of -20°C to 80°C and voltage rating of 300V. The cable maintains a bend radius of 10 times its diameter and can withstand a pull tension of up to 66 Lbs. Its low mutual and ground capacitance make it suitable for sensitive electronic and industrial applications, ensuring noise reduction and signal integrity across various environments.
ALPHA WIRE 5906CSL002 Shielded Cable Specifications:
- Conductor: 22 AWG
- Insulation: PVC, 0.013" Wall, Nom.
- Jacket: PVC, 0.035" Wall, Nom.
- Color code: Black-Red, Black-White, Black-Green, Black-Blue, Black-Yellow, Black-Brown
- Shield: Foil and drain wire, Aluminum/Mylar tape, Min. 25% overlap, foil facing in
- Dimensions: 18 x 12 x 8 inches (Cross-sectional); 12 x 12 x 3.5 inches (Spool) dimensions
- Temperature Range: -20°C to 80°C
- Voltage Rating: 300V
- Bend Radius: 10X Cable Diameter
- Pull Tension: 66 Lbs Max
- Mutual Capacitance: 31 pf/ft @1 kHz
- Ground Capacitance: 56 pf/ft @1 kHz
- Characteristic Impedance: 729 ohms
- Inductance: 0.2 μH/ft
- Conductor DCR: 17.3 Ω/1000ft @20°C
- Shield DCR: 10.3 Ω/1000ft @20°C
- Certifications: UL, CSA, RoHS, CE
Buy the Alpha Wire 5906C – Reliable Shielded Cable for Industrial Applications
Purchase the Alpha Wire 5906C shielded cable online for reliable performance in industrial and electronic applications. Featuring 22 AWG conductors, UL and CSA certifications, RoHS compliance, and a temperature range of -20°C to 80°C, this cable ensures signal integrity and durability. Its PVC jacket provides excellent insulation, while the shielding reduces electromagnetic interference, making it ideal for sensitive electronic wiring. Available in various lengths, order now to secure high-quality, compliant cable that meets rigorous industry standards and enhances your project efficiency.
Get Alpha Wire 5906C today—designed for durability and optimal performance in industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5906CSL002?
You can click on the BUY or RFQ button to purchase 5906CSL002 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5906CSL002?
You can download the 5906CSL002 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5906CSL002?
ALPHA WIRE
