Alpha Wire 5953BL001 Hookup Cable

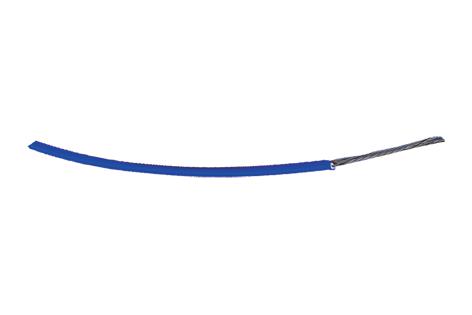

This flexible hookup wire features a 26 AWG stranded conductor with a 0.0055-inch wall PVDF insulation, suitable for high-temperature environments from -40°C to 125°C. It is compliant with UL 1422 and RoHS 2 regulations, ensuring environmentally safe materials. The wire has a bend radius of 10 times its diameter and a maximum pull tension of 1.99 lbs, making it ideal for industrial applications requiring reliable electrical conductivity and durability. Available in multiple colors, it is perfect for wiring projects demanding flexibility and safety in harsh conditions.
Alpha Wire 5953BL001 Hookup Cable Specifications:
- Conductor: 26 AWG SPC stranded conductor
- Insulation: PVDF, 0.0055-inch wall
- Temperature Range: -40°C to 125°C
- Bend Radius: 10X cable diameter
- Pull Tension Maximum: 1.99 lbs
- UL Certification: UL 1422, 105°C
- Voltage Rating: Not specified
- Physical Dimensions: Inner diameter approximately 0.016 inches
- Colors: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet
- Compliance: RoHS 2, REACH, California Proposition 65
- Packaging: 1000 ft spool, dimensions approximately 3.5 x 3 x 1.125 inches
- Applicable standards: UL, European RoHS, China RoHS
Buy the Buy AlphaWire Component Part Number 5953BL001 Online
Order AlphaWire hookup cable part number 5953BL001 online today to benefit from reliable, high-quality wiring solutions designed for demanding environments. This flexible 26 AWG stranded conductor with PVDF insulation ensures optimal performance and safety across various industrial applications. With UL certification and RoHS compliance, it guarantees environmental safety and durability in temperatures ranging from -40°C to 125°C. Available in multiple colors, its excellent bend radius and tensile strength make it perfect for complex wiring installations where reliability matters most. Purchase now to ensure seamless electrical connections in your projects.
Buy AlphaWire part number 5953BL001 now and experience unmatched flexibility and safety for industrial wiring needs.
Frequently Asked Questions
Where can I buy Alpha Wire 5953BL001?
You can click on the BUY or RFQ button to purchase 5953BL001 from an authorized Alpha Wire distributor.
How do I troubleshoot issues or seek technical support for part 5953BL001?
You can download the 5953BL001 datasheet or visit the Alpha Wire website for support.
Who is the manufacturer of 5953BL001?
Alpha Wire
