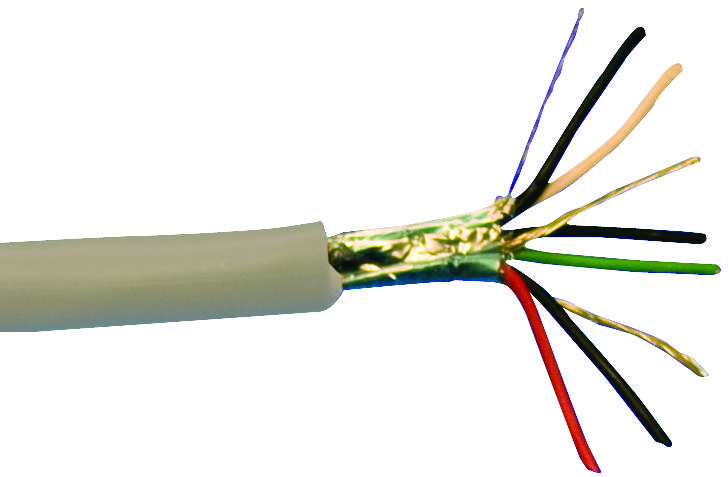

ALPHA WIRE 6018CSL005 Shielded Control Cable
This shielded cable features a 22 AWG TC conductor with a 0.010-inch wall, made from flame-retardant polypropylene and PVC, suitable for electronic and control applications. Its construction includes twisted pairs, foil shielding, and a durable jacket, offering excellent electrical properties such as a 300 V rating and characteristic impedance of 609 ohms. The cable withstands temperatures from -20°C to +75°C, has a maximum pull tension of 247 lbs, and maintains low inductance and capacitance for optimal performance in complex electrical systems. Ideal for industrial control, instrumentation, and communication wiring, it complies with RoHS and REACH standards for environmentally responsible use.
ALPHA WIRE 6018CSL005 Shielded Control Cable Specifications:
- Conductor: 22 AWG TC
- Wall Thickness: 0.010 inches
- Temperature Range: -20°C to +75°C
- Voltage Rating: 300 V
- Impedance: 609 ohms
- Inductance: 0.18 PH/ft
- Mutual Capacitance: 28 pf/ft @1 kHz
- Ground Capacitance: 50 pf/ft @1 kHz
- DCR: 16.6 Q/1000ft @20°C
- Shielding: Foil with drain wire
- Jacket Material: PVC, 0.063 inches wall
- Flexibility: Bend radius 10X cable diameter
- Pull Tension: 247 lbs max
- Outer Diameter: Approximately 0.565 inches (max 0.592 inches)
- Certifications: UL, CSA, RoHS, REACH
Buy the Alpha Wire Series 711 Shielded Cable: 6018C
Purchase Alpha Wire 6018C shielded cable online today to ensure your industrial control, instrumentation, and communication wiring projects benefit from reliable shielding, high-quality materials, and compliance with environmental standards. Designed with twisted pairs, foil shielding, and a durable PVC jacket, this cable provides excellent electrical properties with a voltage rating of 300 V and impedance of 609 ohms. Its temperature range of -20°C to +75°C makes it suitable for various demanding environments. Easy to order online, this cable guarantees performance, flexibility, and environmental compliance, making it ideal for automation, control panels, and signal transmission needs.
Get Alpha Wire 6018C today—built for durability and reliable electrical performance in control and instrumentation systems.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6018CSL005?
You can click on the BUY or RFQ button to purchase 6018CSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6018CSL005?
You can download the 6018CSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6018CSL005?
ALPHA WIRE
