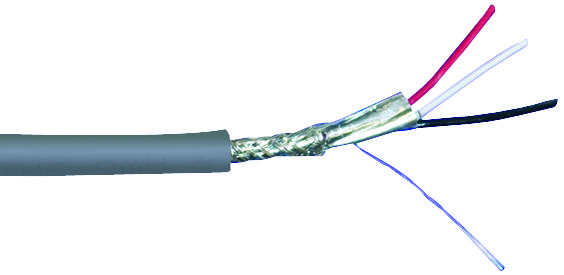

ALPHA WIRE 6331SL002 Shielded control cable
The 6331SL002 shielded cable is designed for industrial electronics, featuring 24 AWG Tinned Copper conductors, PVC insulation, and a PVC jacket. It offers a voltage rating of 300 V, with low capacitance and inductance suitable for signal transmission. The cable's construction includes aluminum/mylar foil shielding with drain wire and a braided shield, providing excellent EMI protection. Its temperature range is -20°C to 80°C, with a bend radius of 10 times the cable diameter. Ideal for control and instrumentation applications requiring reliable signal integrity and electromagnetic shielding.
ALPHA WIRE 6331SL002 Shielded control cable Specifications:
- Voltage Rating: 300 V
- Conductor: 24 AWG Tinned Copper
- Insulation: PVC, 0.010" Wall
- Jacket: PVC, 0.032" Wall
- Shield: Aluminum/Mylar Tape with 25% overlap
- Drain Wire: 24 AWG Tinned Copper
- Braid: Tinned Copper, 65% Cover
- Temperature Range: -20°C to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 31 Lbs Max
- Capacitance: 32 pf/ft at 1 kHz
- Ground Capacitance: 58 pf/ft at 1 kHz
- Inductance: 0.19 μH/ft
- Conductor DCR: 26 Ω/1000 ft at 20°C
- Shield DCR: 5.5 Ω/1000 ft at 20°C
- Cable Lengths: 1000 ft, 500 ft, 100 ft options
- Standards: UL 2464, CSA C(UL) TYPE CMG, FT4, RoHS Compliant
Buy the Alpha Wire 6331SL002 – Reliable Shielded Cable for Industrial Applications
Secure your equipment’s signal transmission with the shielded control cable. Made with premium PVC insulation and jacket, it offers excellent EMI shielding through foil and braid. Rated for 300V and operating from -20°C to 80°C, this cable ensures durability and reliable performance in industrial environments. Its flexible construction and multiple length options facilitate easy installation in control panels, instrumentation, and automation setups. Purchase online today for fast delivery and guaranteed quality to improve your operational efficiency.
Buy Alpha Wire 6331SL002 now and experience unmatched signal integrity and electromagnetic protection for your control systems and electronics.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6331SL002?
You can click on the BUY or RFQ button to purchase 6331SL002 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6331SL002?
You can download the 6331SL002 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6331SL002?
ALPHA WIRE
