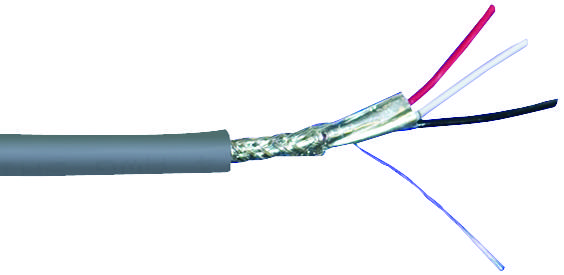

ALPHA WIRE 6340SL001 Shielded Multi-core Cable
The 6340 SL001 is a four-core shielded cable featuring a tinned copper conductor and semi-rigid PVC insulation. It has a slate-colored PVC jacket, with an aluminum/Mylar foil shield facing outward, complemented by a tinned copper braid shield providing a minimum of 65% coverage. This combination of foil and braid offers effective electromagnetic interference (EMI) protection across a broad frequency range. The cable is rated for a maximum pull tension of 28 pounds, with a nominal ground capacitance of 65 pF/ft at 1 kHz and a nominal inductance of 0.18 µH/ft. Suitable for applications in audio, communications and networking, computers and peripherals, sensing and instrumentation, security, automation and process control, consumer electronics, and portable devices.
ALPHA WIRE 6340SL001 Shielded Multi-core Cable Specifications:
- Conductor Material: Tinned Copper
- Insulation: Semi-rigid PVC, 0.010" Wall
- Jacket Material: PVC, Slate color, 0.032" Wall, 0.211 to 0.222 inches Max diameter
- Shield: Aluminum/Mylar Tape, 25% Overlap, Foil Facing Out
- Drain Wire: 24 AWG Tinned Copper
- Braid: Tinned Copper, 65% Coverage
- Cable Length Options: 1000 ft, 500 ft, 100 ft (dimensions vary)
- Maximum Pull Tension: 28 lbs
- Voltage Rating: 300 V
- Capacitance: 36 pF/ft at 1 kHz
- Ground Capacitance: 65 pF/ft at 1 kHz
- Inductance: 0.18 µH/ft
- DCR Conductor: 16.3 Ω/1000 ft at 20°C
- Shield DCR: 5.5 Ω/1000 ft at 20°C
- Temperature Range: -20°C to 80°C
- Bend Radius: 10X Cable Diameter
Buy the AlphaWire 6340SL001 – Reliable Shielded Cable for Industrial Applications
Purchase the AlphaWire 6340SL001 shielded multi-core cable online today to ensure high-quality EMI shielding, robust construction, and optimal performance for your electronic and industrial projects. With a tinned copper conductor, semi-rigid PVC insulation, and dual-layer shielding including foil and braid with 65% coverage, this cable offers excellent electromagnetic compatibility. Rated for 28 pounds maximum pull tension and suitable for a variety of applications such as audio, communications, sensing, and automation, it guarantees long-term reliability and safety.
Buy AlphaWire 6340SL001 now and experience unmatched EMI protection, durability, and versatile performance across electronic, automation, and communication systems.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6340SL001?
You can click on the BUY or RFQ button to purchase 6340SL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6340SL001?
You can download the 6340SL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6340SL001?
ALPHA WIRE
