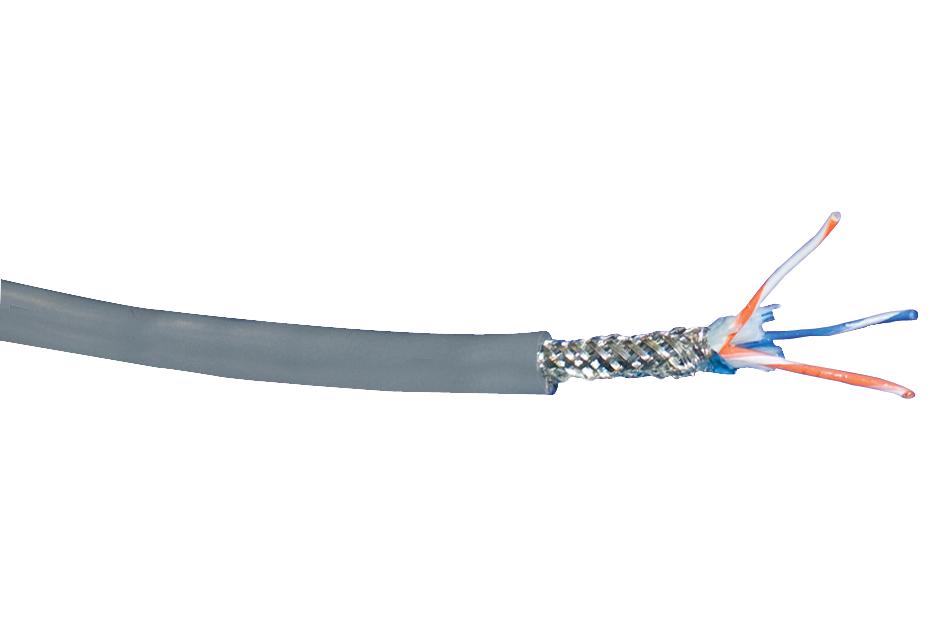

ALPHA WIRE 6374SL002 Shielded Control Cable
This shielded control cable features 3 pairs of Twisted Pair conductors with 22 AWG Tinned Copper, encased in a durable PVC jacket. It is UL Type CM, CSA, and CE compliant, suitable for electronic and electrical wiring, offering a temperature range of -20°C to 80°C with a voltage rating of 300V. The cable exhibits characteristic impedance of 35 pF/ft at 1 kHz, with a mutual capacitance of 63 pF/ft, and acceptable DCR values for conductors and shield, ensuring reliable electrical performance for industrial applications.
ALPHA WIRE 6374SL002 Shielded Control Cable Specifications:
- Construction: 3 pairs, 22 AWG Tinned Copper conductors, PVC insulation
- Jacket: PVC, 0.032 inch wall thickness, UL Type CM, CSA, CE compliant
- Twist Rate: 8.0 twists/foot for pairs, 4.8 twists/foot for components
- Shielding: Aluminum/Mylar tape with 25% overlap, foil facing out, drain wire, braid
- Electrical: Voltage rating 300 V, characteristic impedance 35 pF/ft @1 kHz, mutual capacitance 63 pF/ft, conductor DCR 16.5 O/1000ft @20°C
- Physical: Outer diameter approximately 0.267 inches, flexible with a bend radius of 10X cable diameter
- Temperature Range: -20°C to 80°C, maximum pulling tension 40 Lbs
- Certifications: UL Type CM, CSA, CE, RoHS, REACH compliant, California Proposition 65 compliance
- Dimensions: Length options include 1000 ft, 500 ft, 100 ft spools with control over dimensions for installation and cable management
Buy the AlphaWire Series 711 Shielded Control Cable: 6374SL002
Order the AlphaWire 6374SL002 shielded control cable online today and ensure reliable electrical connections for your automation and control systems. Featuring 3 twisted pairs of 22 AWG conductors, PVC insulation, and comprehensive shielding, this cable guarantees safety and durability. It is UL Type CM, CSA, and CE compliant, with excellent electrical properties including low capacitance and impedance. Designed for easy installation with a flexible jacket, it offers a temperature range of -20°C to 80°C, making it ideal for industrial control, instrumentation, and electronic wiring in demanding environments.
Buy AlphaWire 6374SL002 now and experience unmatched reliability and performance with a durable shielded control cable suitable for industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6374SL002?
You can click on the BUY or RFQ button to purchase 6374SL002 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6374SL002?
You can download the 6374SL002 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6374SL002?
ALPHA WIRE
