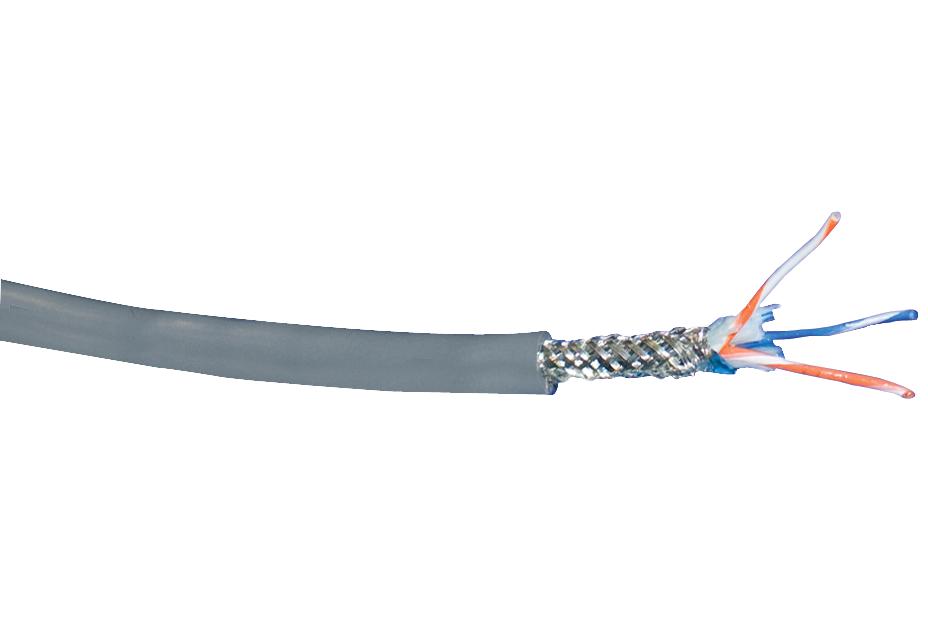

ALPHA WIRE 6379SL005 Shielded Electrical Cable
This high-quality shielded cable features 22 AWG conductors with PVC insulation, designed for reliable electrical performance in industrial environments. It supports 300 V and has a temperature range of -20°C to 80°C, with a bend radius of 10 times the cable diameter. The cable includes foil and braid shielding for EMI reduction, with a maximum diameter of 0.363 inches and a tensile strength of 97 pounds. Suitable for electrical wiring, instrumentation, and control applications, it is UL, CSA, CE, and RoHS compliant, ensuring safety and environmental standards.
ALPHA WIRE 6379SL005 Shielded Electrical Cable Specifications:
- Conductor Size: 22 AWG
- Insulation: PVC, 0.032" Wall, Nominal
- Color Codes: Black-Red, Black-White, Black-Green, Black-Blue, Black-Yellow, Black-Brown, Black-Orange, Red-White
- Shielding: Foil with drain wire, Braid 65% coverage
- Jacket Diameter: 0.363 inches (max)
- Temperature Range: -20°C to 80°C
- Voltage Rating: 300 V
- Bend Radius: 10X cable diameter
- Tensile Strength: 97 lbs (max)
- Characteristic Impedance: 35 pF/ft @1 kHz
- Mutual Capacitance: 63 pF/ft @1 kHz
- Conductive Resistance: 16.6 Ω/1000 ft @20°C
- Shield Resistance: 3.1 Ω/1000 ft @20°C
- Length Options: 1000 ft, 500 ft, 100 ft
- Certifications: UL, CSA, CE, RoHS, FT4
- Compliance: European RoHS 2011/65/EU, China RoHS SJ/T 11364-2014
- Standards: UL 2464 Type CM, CSA C Prime, CE Low Voltage Directive 2006/95/EC
- Environmental: -20°C to 80°C operating temperature
Buy the Alpha Wire 6379 U+2013 Reliable Shielded Cable for Industrial Applications
Secure your electrical installations with Alpha Wire's shielded electrical cable, featuring 22 AWG conductors, durable PVC insulation, and comprehensive shielding for EMI reduction. Perfect for industrial, instrumentation, and control systems, this UL, CSA, CE, and RoHS compliant cable ensures safety, flexibility, and environmental standards. Available in multiple lengths, it boasts excellent electrical performance with 300 V capacity, robust construction, and operating temperatures from -20°C to 80°C. Invest in superior quality wiring for reliable and efficient operations, order online today.
Buy Alpha Wire 6379 now and experience unmatched reliability and performance in your electrical wiring projects with superior shielding and compliance.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6379SL005?
You can click on the BUY or RFQ button to purchase 6379SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6379SL005?
You can download the 6379SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6379SL005?
ALPHA WIRE
