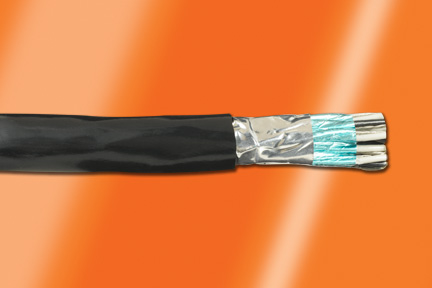

ALPHA WIRE 6385SL005 Shielded Twisted Pair Cable
The ALPHA WIRE 6385 SL005 is a shielded twisted pair cable designed for reliable data transmission and low voltage applications. Constructed with 24 AWG TC conductors, polypropylene insulation, and an aluminum/mylar shield with a drain wire, this cable provides excellent protection against electromagnetic interference. The PVC jacket offers durability and flexibility, while the color-coded pairs simplify identification. It is RoHS compliant and suitable for various industrial and commercial environments.
ALPHA WIRE 6385SL005 Shielded Twisted Pair Cable Specifications:
- Construction: 3 X 1 PAIR
- Conductor AWG: 24 (7/32) AWG TC
- Insulation Wall Thickness: 0.010" Nom.
- Insulation Material: Polypropylene (PP)
- Color Code: Alpha Wire Color Code A
- Twists per Foot (Pair): 9.6 (min)
- Twists per Foot (Cable): 4.8 (min)
- Jacket Wall Thickness: 0.035" Nom.
- Jacket Material: PVC
- Jacket Color: SLATE
- Print: ALPHA WIRE-* P/N 6385 3PR 24 AWG SHIELDED 75C (UL) TYPE CM OR AWM 2919 LOW VOLTAGE COMPUTER CABLE OR C(UL) TYPE CMG 75C FT4 CE ROHS * = Factory Code
- UL Style: AWM/STYLE 2919
- UL Voltage Rating: 80°C / 30 VRMS
- UL Temperature Rating: 75°C
- UL Flammability Rating: VW-1
- CSA Type: C(UL) TYPE CMG
- CSA Voltage Rating: 75°C
- CSA Flammability Rating: FT4
- CE Compliance: EU Low Voltage Directive 2006/95/EC
- Temperature Range: -20 to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 32 Lbs, Maximum
- Voltage Rating: 300 VRMS
- Characteristic Impedance: 60 Ω
- Mutual Capacitance: 25 pf/ft @1 kHz, Nominal
- Ground Capacitance: 47 pf/ft @1 kHz, Nominal
- Conductor DCR: 26 Ω/1000ft @20°C, Nominal
- Ind. Shield DC Resistance: 21 Ω/1000ft @20°C, Nominal
- Packaging - 1000 FT: 12 x 12 x 3.5 inches
- Packaging - 500 FT: 12 x 6 x 3.5 inches
- Packaging - 100 FT: 12 x 4.5 x 3.5 inches
