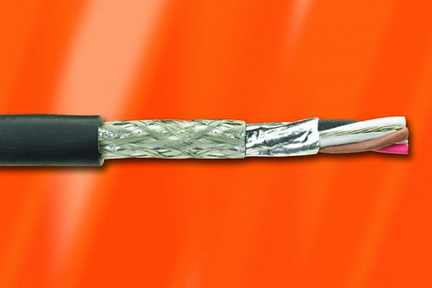

ALPHA WIRE 6452SLATE100 Shielded Data Cable
The ALPHA WIRE 6452-SLATE-100 is a shielded data cable designed for demanding applications requiring reliable signal transmission. Constructed with 22 AWG stranded conductors, a durable PVC jacket, and an aluminum/mylar tape shield, this cable provides excellent protection against electromagnetic interference. It meets UL and CSA standards, making it suitable for a wide range of industrial and commercial environments. The RoHS compliance ensures environmentally responsible usage. Available in various lengths to accommodate diverse project needs.
ALPHA WIRE 6452SLATE100 Shielded Data Cable Specifications:
- Conductor AWG: 22 (7/30) AWG TC
- Insulation Wall: 0.016" Wall, Nom. PVC
- Colors: Black, Red, White
- Twists per foot: 6.0 Twists/foot (min)
- Shield Material: Alum/Mylar Tape
- Shield Overlap: 25% Overlap, Min.
- Drain Wire AWG: 24 (7/32) AWG TC
- Jacket Wall: 0.038" Wall, Nom. PVC
- Jacket Color: SLATE
- Print: ALPHA WIRE-* P/N M39114 3C 22 AWG<br>SHIELDED EXXXXX (UL) TYPE PLTC/ITC 105C SUN RES<br>OR CMG 105C OR C(UL) CMG FT4 CE ROHS<br>* = Factory Code
- UL Temperature Rating: 105°C
- CSA Temperature Rating: 105°C
- Sunlight Resistance: Yes
- Voltage Rating: 300 VRMS
- Capacitance: 39 pf/ft @1 kHz, Nominal Conductor to Conductor
- Ground Capacitance: 70 pf/ft @1 kHz, Nominal
- Inductance: 0.2 µH/ft, Nominal
- Conductor DCR: 16.3 Ω/1000ft @20°C, Nominal
- OA Shield DCR: 15.9 Ω/1000ft @20°C, Nominal
- Bend Radius: 10X Cable Diameter
- Pull Tension: 20 Lbs, Maximum
- 1000 FT Dimensions: 12 x 10 x 5 Continuous length
- 500 FT Dimensions: 12 x 4.5 x 3.5 Continuous length
- 100 FT Dimensions: 6.5 x 4 x 2.5 Continuous length
