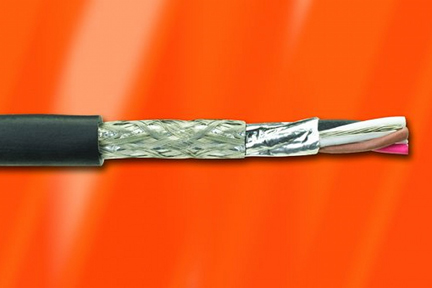

ALPHA WIRE 6463VIOLET1000 Coaxial Cable
The ALPHA WIRE 6463-VIOLET-1000 is a high-performance coaxial cable designed for demanding applications requiring reliable signal transmission. Its quad-shielded construction minimizes interference, ensuring signal integrity. Constructed with a solid 18 AWG BCW conductor, polyethylene foam insulation, and a PVC jacket, this cable is built to withstand harsh environments. It is commonly used in controlnet systems, security systems, and other applications where data integrity is critical. The cable is RoHS compliant and meets various industry standards, including UL and CSA specifications. Its robust design and reliable performance make it a preferred choice for professionals seeking a dependable coaxial cable solution.
ALPHA WIRE 6463VIOLET1000 Coaxial Cable Specifications:
- Conductor AWG: 18 (SOLID) AWG BCW
- Insulation Wall: 0.069" Wall, Nom. Polyethylene, Foam
- Overall Diameter: 0.298+/- 0.005"
- Jacket Wall: 0.0245" Wall, Nom., PVC
- Color (Conductor): NATURAL
- Shield (Conductor): A/P/A Tape, 25% Overlap, Min.
- Braid (Conductor): AL,60% Coverage, Min.
- Shield (Braid): A/P/A Tape, 25% Overlap, Min.
- Braid (Shield): AL,40% Coverage, Min.
- Temperature Range: -30 to 75°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 20.1 Lbs, Maximum
- Sunlight Resistance: Yes
- Voltage Rating: 300 VRMS
- Characteristic Impedance: 75 Ω +/- 3
- Inductance: 0.097 µH/ft, Nominal
- Ground Capacitance: 16.2 pf/ft @1 kHz, Nominal
- Velocity of Propagation: 82 %
- Conductor DCR: 28 Ω/1000ft @20°C, Nominal
- OA Shield DCR: 3.6 Ω/1000ft @20°C, Nominal
- SRL: 23 db, Minimum, 5-50 Mhz
- Attenuation (1 MHz): 0.35 dB/100ft
- Attenuation (2 MHz): 0.38 dB/100ft
- Attenuation (5 MHz): 0.45 dB/100ft
- Attenuation (10 MHz): 0.59 dB/100ft
- Attenuation (20 MHz): 0.86 dB/100ft
- Attenuation (50 MHz): 1.37 dB/100ft
