ALPHA WIRE 65104CYSL005 Control Cable
The 65104CY SL005 is a high-flex, four-core shielded control cable designed for demanding industrial applications. It features bare copper conductors with PVC insulation and oil-resistant slate PVC jacket, with a tinned copper braid shield offering at least 85% coverage. Suitable for light-to-moderate flexing, it supports continuous-flex environments such as robotics, automation, and motion control. With a maximum pull tension of 346 lbs and support for IP67/NEMA 6 standards, it ensures liquid-tight, reliable performance in harsh conditions, making it ideal for industrial sensing, instrumentation, and automation systems.
ALPHA WIRE 65104CYSL005 Control Cable Specifications:
- Number of Conductors: 4
- Conductor Material: Bare Copper (105/30 AWG)
- Insulation Thickness: 0.022 inches PVC
- Jacket Thickness: 0.055 inches PVC, Oil Resistant
- Jacket Color: Slate
- Shield Type: Tinned Copper Braid, 85% coverage
- Jacket Material: PVC, Oil Resistant
- Jacket Color: Slate
- Cable Diameter: 0.510 inches (jacket), 0.684 inches (outer cable)
- Max Pull Tension: 346 lbs
- Temperature Range: -40 to 90°C static, -5 to 90°C dynamic
- Voltage Rating: 600V
- Capacitance: 62 pF/ft @1 kHz
- Ground Capacitance: 112 pF/ft @1 kHz
- Inductance: 0.15 µH/ft
- Conductor Resistance: 1.01 Ω/1000 ft @20°C
- Shield Resistance: 1.58 Ω/1000 ft @20°C
- Bend Radius: 5X cable diameter
- Certifications: UL, CSA, CE RoHS, REACH, China RoHS
- Applicable Standards: AWM 2587, FT1 90°C, 600V

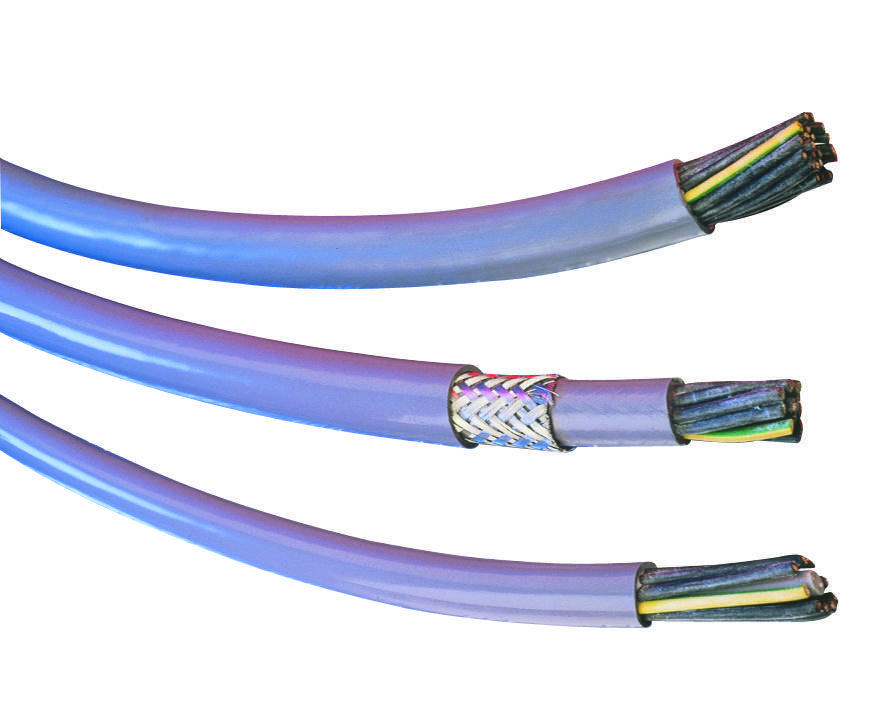

Buy the Buy Alpha Wire 65104CY Part Number 65104CYSL005 Online
Purchase the Alpha Wire 65104CYSL005 online and enjoy high flexibility and superior shielding for industrial automation, robotics, and motion control systems. Crafted with bare copper conductors and PVC insulation, this four-core cable features a durable, oil-resistant slate jacket and a copper braid shield providing at least 85% coverage. Designed for continuous flex and high-torsion environments, it supports IP67/NEMA 6 standards for liquid-tight performance. Perfect for sensing, instrumentation, and automation applications requiring reliable, high-performance wiring in demanding conditions.
Get Alpha Wire 65104CYSL005 today—built for high-flex, industrial environments with reliable shielding and oil-resistant jacket.
Frequently Asked Questions
Where can I buy ALPHA WIRE 65104CYSL005?
You can click on the BUY or RFQ button to purchase 65104CYSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 65104CYSL005?
You can download the 65104CYSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 65104CYSL005?
ALPHA WIRE
