ALPHA WIRE 65203SL005 Control Cable
The 65203 SL005 is a three-core unshielded control cable with bare copper conductors and lubricated PVC insulation. It is lightweight, flexible, and designed for moderate flexing, ideal for motion control, automation, robotics, and industrial applications. The oil-resistant slate PVC jacket enhances durability, enabling liquid-tight, IP67/NEMA 6 compliant installations. Supports high-flex, high-torsion, and continuous flex needs, with a maximum pull tension of 153 pounds, inductance of 0.16 µH/ft, and conductor resistance of 1.65 Ω/1000 ft at 20°C. Suitable for sensing, instrumentation, and automotive use.
ALPHA WIRE 65203SL005 Control Cable Specifications:
- Number of Conductors: 3
- Conductor Material: Bare Copper
- Conductor Size: 12 AWG (65/30)
- Insulation Wall Thickness: 0.022" PVC
- Jacket Thickness: 0.067" PVC, Oil Resistant
- Jacket Color: Slate
- Jacket Material: PVC
- Jacket Environmental Resistance: Oil Resistant, Chemical Resistant
- Outer Diameter: Approximately 0.436 inches (+/- 0.019 inches)
- Bend Radius: 5X Cable Diameter
- Maximum Pull Tension: 153 Lb
- Voltage Rating: 600 V
- Capacitance: 38 pF/ft @ 1 kHz
- Inductance: 0.16 µH/ft
- DC Resistance: 1.65 Ω/1000 ft @ 20°C
- Temperature Range: -40°C to 90°C (static), -5°C to 90°C (dynamic)
- Application: Motion Control, Automation, Robotics, Industrial Processes, Automotive
- Standards: UL JAWMSTYLE 2587, CSA AWM II AB 90°C/600V, CE, VDE 0472

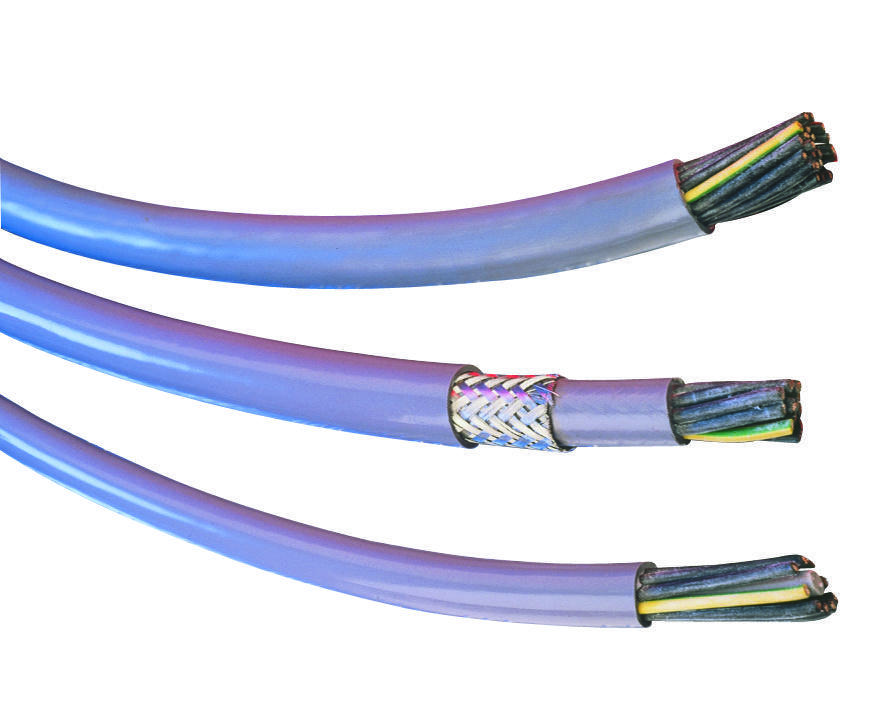

Buy the AlphaWire 65203 U–Reliable Control Cable for Industrial Applications
Get your AlphaWire 65203 control cable online now and enjoy reliable, high-flex performance suitable for automation, robotics, and industrial processes. With a durable, oil-resistant PVC jacket, this three-core cable offers excellent flexibility, IP67/NEMA 6 compliance, and a maximum pull tension of 153 pounds. Perfect for motion control, instrumentation, and automotive applications, it features bare copper conductors, a capacitance of 38 pF/ft, and low inductance. Purchase today for high-quality, dependable connection solutions in demanding environments.
Order your AlphaWire 65203 control cable today and ensure reliable performance for your industrial, automation, or robotics projects with optimal flexibility.
Frequently Asked Questions
Where can I buy ALPHA WIRE 65203SL005?
You can click on the BUY or RFQ button to purchase 65203SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 65203SL005?
You can download the 65203SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 65203SL005?
ALPHA WIRE
