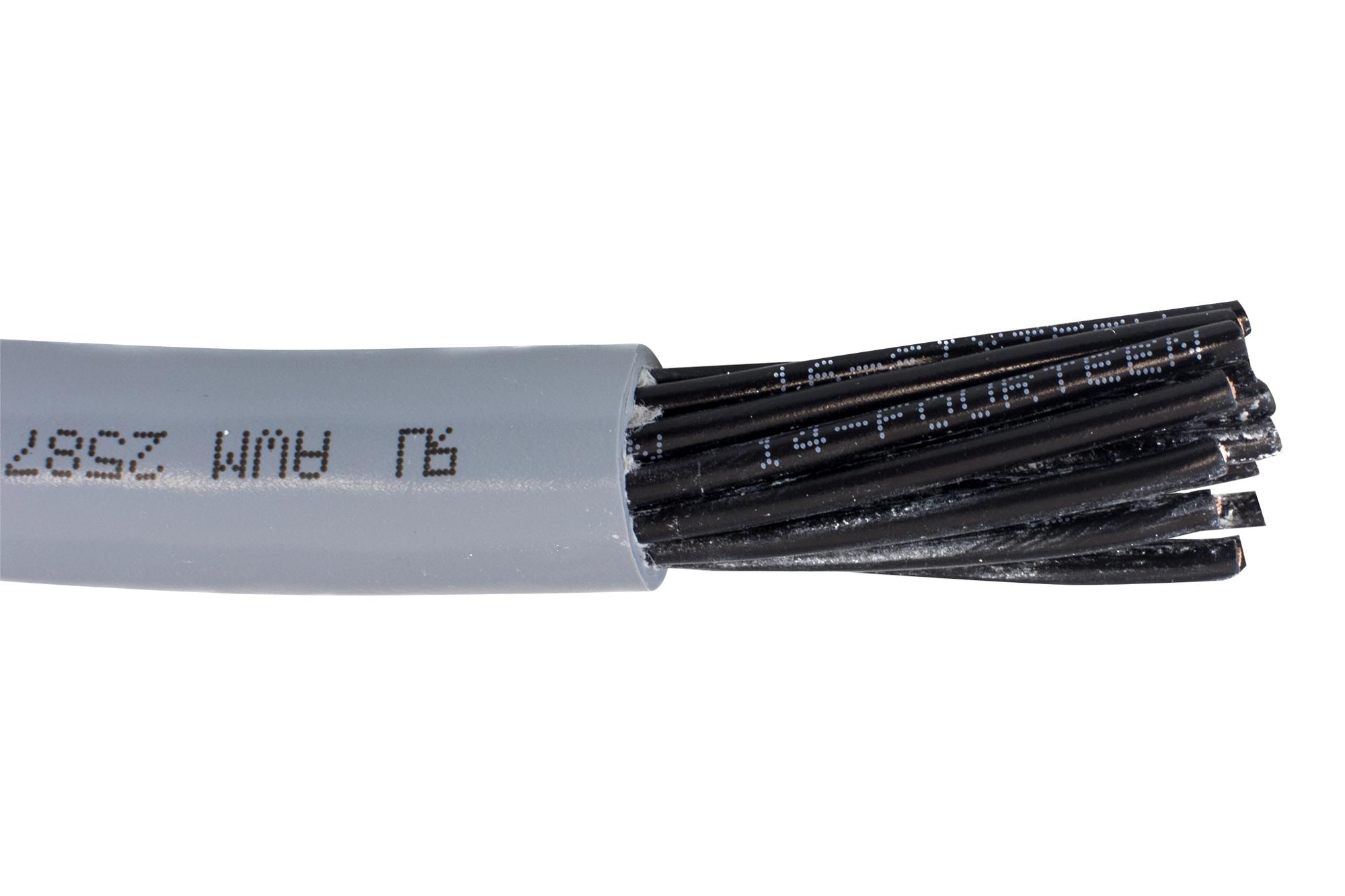

ALPHA WIRE 652407SL005 Control Cable
AlphaWire 652407 control cable is a flexible, oil-resistant, PVC-insulated wire designed for industrial control and instrumentation applications. This 24 AWG cable features a durable construction with a temperature range of -40°C to 90°C, a voltage rating of 600V, and excellent mechanical and electrical properties including low capacitance and inductance. It complies with European RoHS, REACH, and China RoHS standards, making it suitable for environmentally sensitive projects. The cable is available in continuous lengths of 1000 ft, 500 ft, and 100 ft, ensuring flexible installation options and reliable performance in demanding control systems.
ALPHA WIRE 652407SL005 Control Cable Specifications:
- Conductor: 24 AWG Bare Copper
- Insulation: PVC with 0.022" wall thickness
- Jacket: PVC, Oil Resistant, 0.038" wall thickness
- Temperature Range: -40°C to 90°C (static), -5°C to 90°C (dynamic)
- Voltage Rating: 600V
- Capacitance: 20.6 pF/ft @1 kHz
- Inductance: 0.24 μH/ft
- Resistor: Conductor DCR 24 Ω/1000ft @20°C
- Bend Radius: 5X cable diameter
- Tensile Strength: Max pull tension 24.6 lbs
- Environmental Compliance: RoHS 2, RoHS 3, REACH, China RoHS
- Lengths available: 1000 ft, 500 ft, 100 ft
- Operating Temperature: -5°C to 90°C (dynamic), -40°C to 90°C (static)
Buy the AlphaWire Series Control Cable: 652407
Purchase AlphaWire control cable 652407 online today. This high-quality, oil-resistant PVC-insulated wire is designed for industrial control systems. It offers a temperature range of -40°C to 90°C, a voltage rating of 600V, and excellent electrical properties including low capacitance and inductance. The cable is RoHS and REACH compliant, ensuring safe use in environmentally sensitive projects. Available in lengths of 1000 ft, 500 ft, and 100 ft, providing flexibility for your wiring needs. Reliable and durable, it's ideal for industrial control and instrumentation applications.
Get AlphaWire 652407 control cable today—built for flexibility and environmental compliance for professional electrical installations.
Frequently Asked Questions
Where can I buy ALPHA WIRE 652407SL005?
You can click on the BUY or RFQ button to purchase 652407SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 652407SL005?
You can download the 652407SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 652407SL005?
ALPHA WIRE
