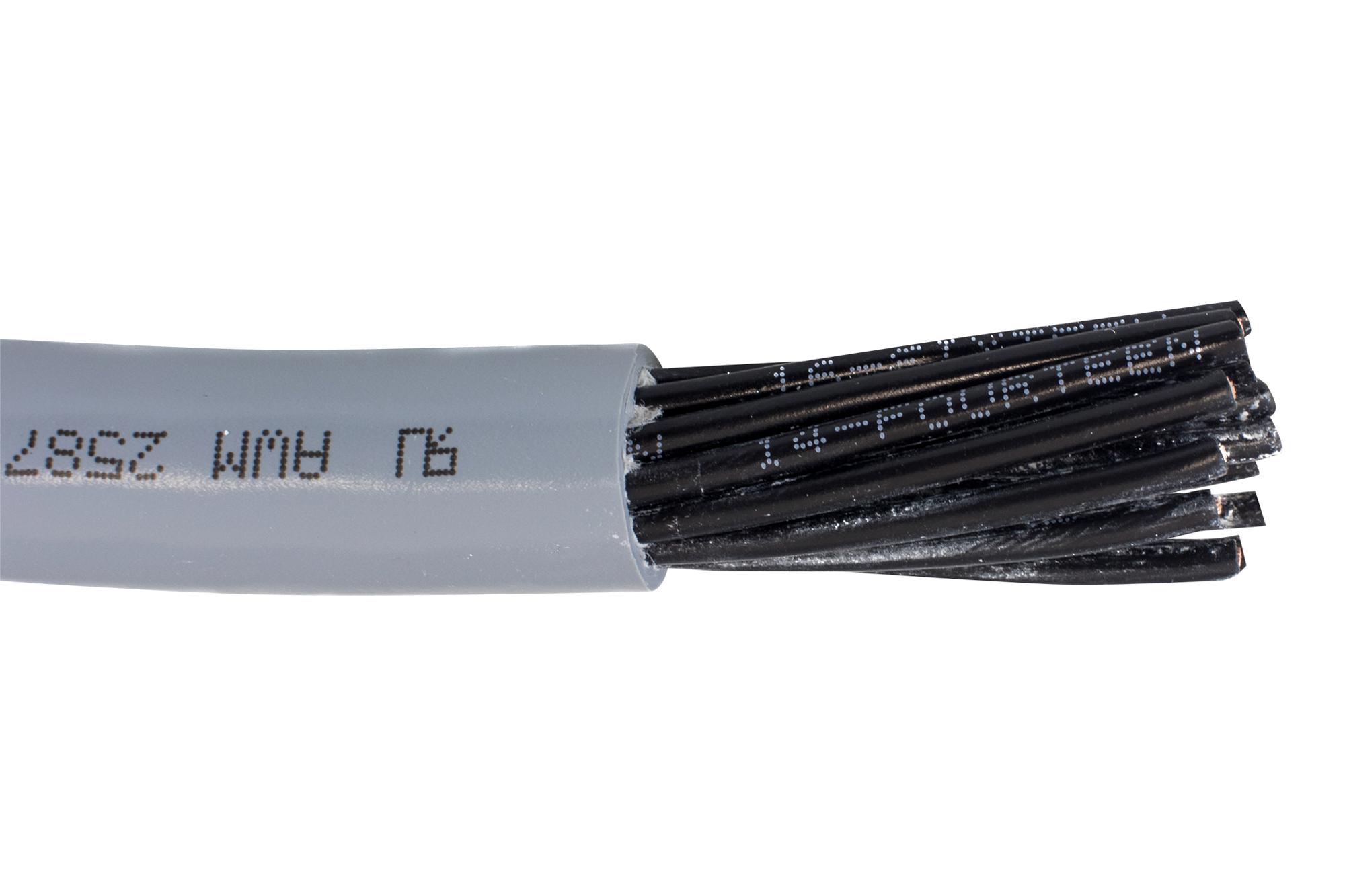

ALPHA WIRE 652409SL005 Flexible Control Cable
This product is a flexible control cable featuring a PVC jacket, designed for efficient electrical connections in industrial environments. It complies with UL 2587 and CSA standards, rated for 90°C and 600V, ensuring reliable performance. The cable incorporates 24 AWG bare copper conductors with a 0.022-inch wall insulation, twisted in 3.7 twists per foot for flexibility. Its slate-colored jacket with tissue tape separator enhances durability and oil resistance, suitable for control systems requiring secure and stable wiring over long distances.
ALPHA WIRE 652409SL005 Flexible Control Cable Specifications:
- Conductor Material: Bare Copper
- Conductor Size: 24 AWG
- Insulation Thickness: 0.022 inches
- Jacket Material: PVC
- Jacket Color: Slate
- Jacket Wall Thickness: 0.040 inches
- Jacket Resistance: Oil resistant
- Temperature Rating: -40°C to 90°C (static), -5°C to 90°C (dynamic)
- Voltage Rating: 600V
- Twist Rate: 3.7 twists per foot
- Outer Diameter: Approximately 0.364 inches
- Minimum Bend Radius: 5X Cable Diameter
- Maximum Pull Tension: 32 lbs
- Capacitance: 20.6 pF/ft @1 kHz
- Inductance: 0.24 μH/ft
- Conductor Resistance: 24.1 ΩkM/ft @20°C
- Lengths Available: 1000 ft, 500 ft, 100 ft
- Certifications: UL, CSA, CE, RoHS, REACH
Buy the AlphaWire Series Flexible Control Cable: 652409SL005
Order the AlphaWire flexible control cable number 652409SL005 today through our online platform. Crafted with durable PVC jacket and twisted 24 AWG copper conductors, this cable supports static temperatures to 90°C and voltage up to 600V. Its oil-resistant jacket, flexible design, and UL/CSA certification make it ideal for industrial control systems needing reliable wiring over long distances. Ensure your project’s success by choosing this high-quality, RoHS-compliant cable available for quick online purchase.
Buy AlphaWire 652409SL005 now and experience unmatched reliability and high-performance electrical control solutions with durable PVC insulation.
Frequently Asked Questions
Where can I buy ALPHA WIRE 652409SL005?
You can click on the BUY or RFQ button to purchase 652409SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 652409SL005?
You can download the 652409SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 652409SL005?
ALPHA WIRE
