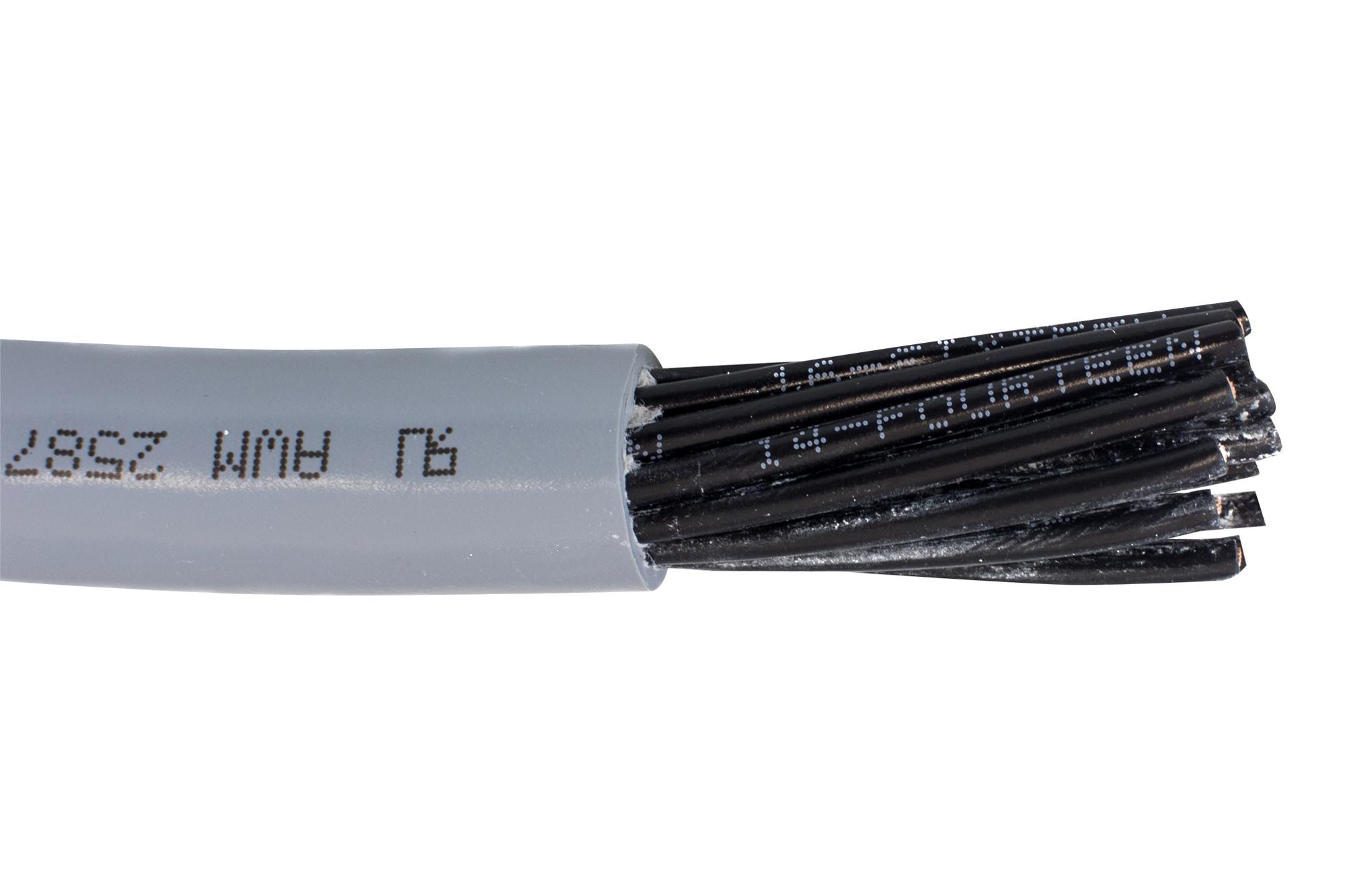

ALPHA WIRE 652412SL005 Control Cable
This flexible control cable features 12 conductors with 24 AWG bare copper wire, insulated with black PVC, and a slate PVC jacket. Certified for UL 2587 and CSA standards, it operates within -40°C to 90°C, with a voltage rating of 600V. Designed for industrial automation and control systems, it offers excellent flexibility with a minimum bend radius of 5x the cable diameter and a pull tension of 42 lbs. The cable’s construction ensures oil resistance and compliance with RoHS and REACH regulations, making it suitable for demanding industrial environments.
ALPHA WIRE 652412SL005 Control Cable Specifications:
- Conductor: 24 AWG bare copper
- Insulation: PVC, 0.022" wall, black
- Jacket: PVC, slate, 0.040" wall
- Voltage Rating: 600V
- Temperature Range: -40°C to 90°C (static), -5°C to 90°C (dynamic)
- Bend Radius: 5X cable diameter
- Pull Tension: 42 lbs maximum
- Capacitance: 20.6 pF/ft @ 1 kHz
- Inductance: 0.24 µH/ft
- Conductor DCR: 24.1 Ω/kft @ 20°C
- Length Options: 1000 ft, 500 ft, 100 ft
- Certifications: UL 2587, CSA WII A/B, CE RoHS, REACH compliant
- Environmental: Oil resistant, compliant with EU RoHS 2 and REACH
Buy the AlphaWire 652412 U– Reliable Control Cable for Industrial Applications
Order AlphaWire control cable online today for superior quality and reliability in industrial automation and control systems. This 12-conductor cable with 24 AWG copper, PVC insulation, and slate jacket delivers excellent flexibility, oil resistance, and complies with UL, CSA, RoHS, and REACH standards. Designed to operate over a temperature range of -40°C to 90°C with a voltage rating of 600V, it’s ideal for demanding industrial environments. Trust AlphaWire for durable, regulation-compliant, and easy-to-install control wiring solutions for your project needs.
Buy AlphaWire 652412 control cable now and experience reliable performance in demanding industrial environments with high flexibility and compliance.
Frequently Asked Questions
Where can I buy ALPHA WIRE 652412SL005?
You can click on the BUY or RFQ button to purchase 652412SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 652412SL005?
You can download the 652412SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 652412SL005?
ALPHA WIRE
