ALPHA WIRE 652418SL005 Control Cable
The product is a flexible control cable designed for electrical wiring in industrial and automation applications. It features a 24 AWG bare copper conductor with a 0.022-inch wall PVC insulation, and a slate-colored PVC jacket with a 0.045-inch wall that is oil-resistant. It is UL and CSA rated for 600V and can operate in temperatures from -40°C to 90°C. The cable has a minimum twist rate of 3 twists per foot and is environmentally compliant with RoHS and REACH standards, making it suitable for various low-voltage control and instrumentation uses.
ALPHA WIRE 652418SL005 Control Cable Specifications:
- Conductor Type: Bare Copper, 24 AWG
- Insulation Material: PVC, 0.022" wall
- Jacket Material: PVC, Oil Resistant, 0.045" wall, Slate color
- Jacket Separator: Tissue Tape with 25% overlap
- Voltage Rating: 600V
- Temperature Range: -40°C to 90°C (static), -5°C to 90°C (dynamic)
- Bend Radius: 5X Cable Diameter
- Pull Tension: 63 Lbs max
- Capacitance: 20.6 pF/ft @1 kHz
- Inductance: 0.24 μH/ft
- Conductor DCR: 24.2 mΩ/ft @20°C
- Twist Rate: Minimum 3 twists per foot
- Length Options: 1000 ft, 500 ft, 100 ft continuous lengths
- Certifications: UL JAWMSTYLE 2587, CSA AWM II AB, CE compliant with Low Voltage Directive
- Environmental: RoHS 2 & 3, REACH compliant

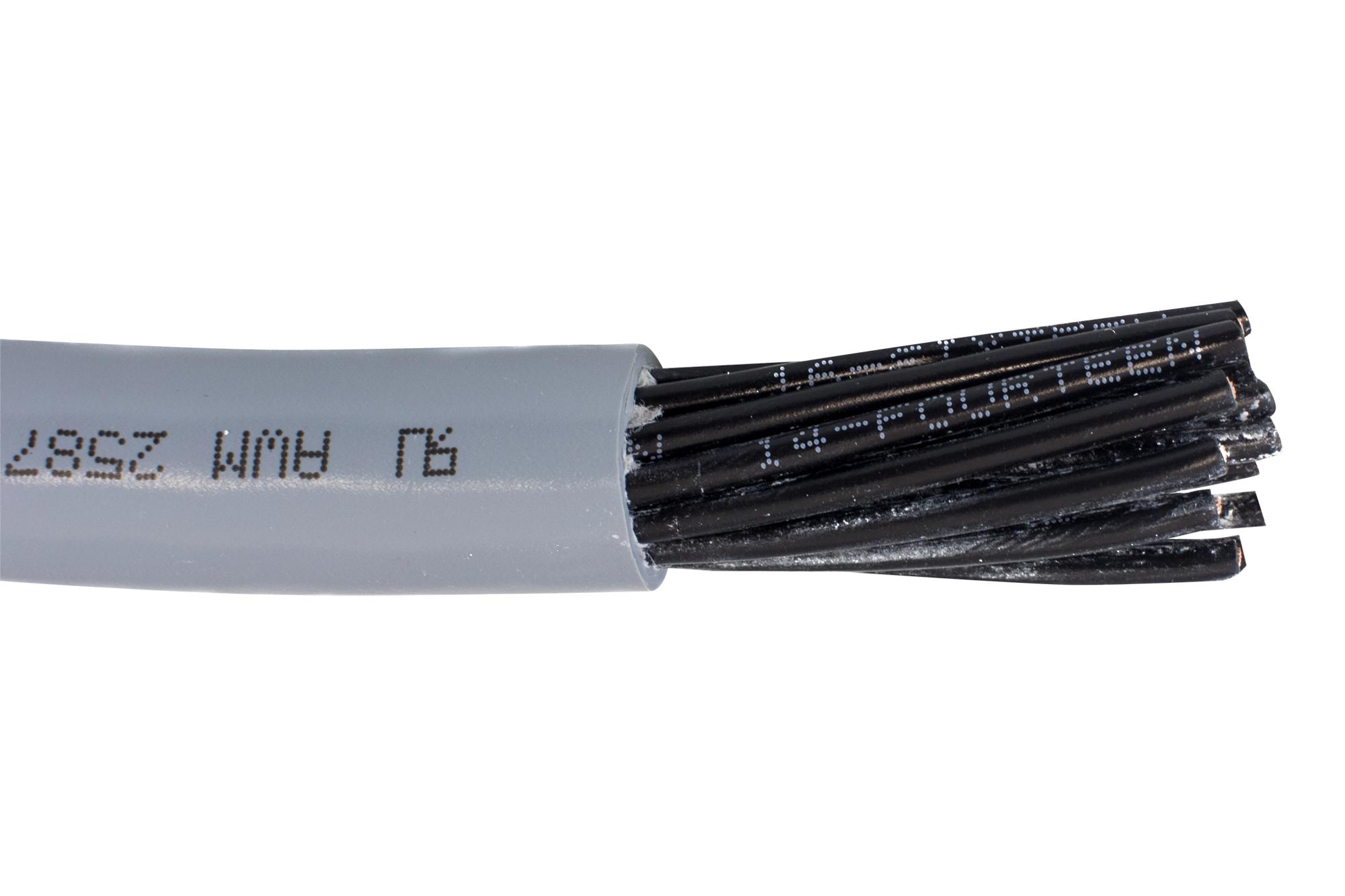

Buy the Buy Alpha Wire Control Cable Part Number 652418SL005 Online
Secure your electrical wiring needs by ordering the Alpha Wire control cable online today. This flexible, UL and CSA rated cable features 24 AWG bare copper conductors, PVC insulation, and a durable oil-resistant jacket. With compliance to RoHS and REACH directives, it offers excellent environmental safety. Suitable for low-voltage control systems, it handles temperatures up to 90°C and has a minimum twist rate for easy installation. Trust Alpha Wire for reliable, high-quality control cables that meet industry standards and enhance your project performance.
Order your Alpha Wire Series652418 control cable today and ensure high-quality, reliable wiring for your industrial and automation projects.
