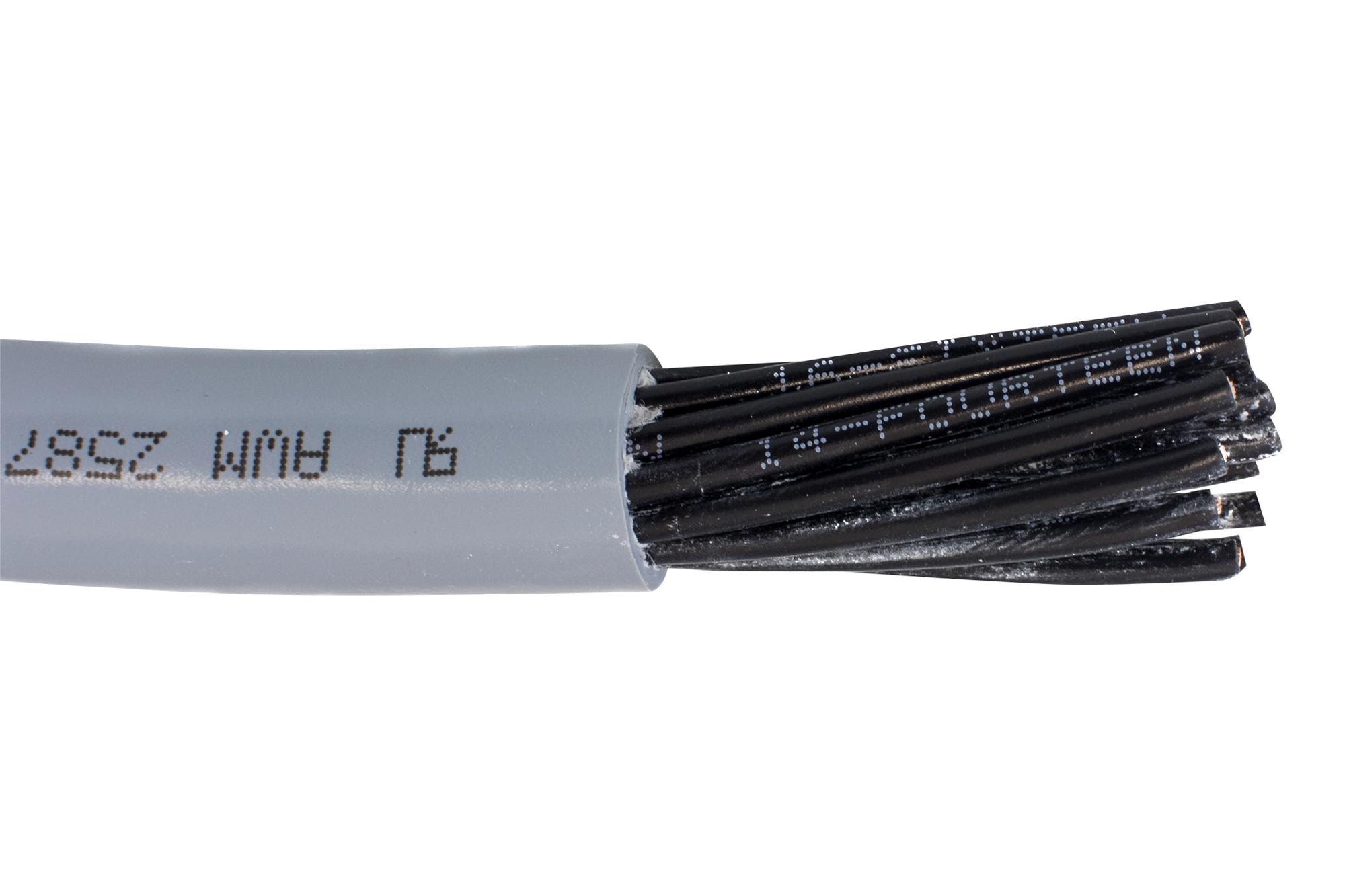

ALPHA WIRE 652603SL005 Control Cable
This is a flexible control cable with PVC insulation and jacket, designed for industrial wiring applications. It features 26 AWG bare copper conductors with a 0.022-inch wall PVC insulation, twisted into a cabled assembly with 8 twists per foot. The jacket is oil-resistant, slate-colored, with a 0.035-inch wall and tissue separator tape. Certified for UL, CSA, and CE standards, it operates safely within temperature ranges of -40°C to 90°C, with a voltage rating of 600V. Suitable for control and instrumentation wiring where flexibility and durability are essential.
ALPHA WIRE 652603SL005 Control Cable Specifications:
- Conductor: 26 AWG bare copper
- Insulation: PVC, 0.022-inch wall, oil-resistant
- Jacket: PVC, 0.035-inch wall, slate color, oil-resistant
- Twists: 8.0 twists per foot
- Cable length options: 1000 ft, 500 ft, 100 ft
- Temperature Range: -40°C to 90°C
- Voltage Rating: 600V
- Capacitance: 18.9 pF/ft @1 kHz
- Inductance: 0.26 µH/ft
- Conductor DCR: 39 Ω/1000 ft @20°C
- Compliance: UL Style 2587, CSA, CE RoHS, REACH
- Bend radius: 5x cable diameter
- Pull tension: 6.6 lbs
Buy the AlphaWire 652603 – Reliable Control Cable for Industrial Applications
Purchase AlphaWire 652603 control cable online today and enjoy fast delivery of a high-quality, flexible, PVC-insulated cable. Perfect for industrial control, instrumentation, and electrical applications, this cable features 26 AWG copper conductors with oil-resistant PVC insulation and a durable jacket. Certified for UL, CSA, and CE, it ensures safety and compliance in demanding environments. With a temperature range of -40°C to 90°C and a voltage rating of 600V, it guarantees reliable performance in various industrial settings. Order now and enhance your wiring with proven industry standards.
Buy AlphaWire 652603 control cable now and experience unmatched flexibility, durability, and industry-standard safety for your wiring needs.
Frequently Asked Questions
Where can I buy ALPHA WIRE 652603SL005?
You can click on the BUY or RFQ button to purchase 652603SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 652603SL005?
You can download the 652603SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 652603SL005?
ALPHA WIRE
